Product Details:
|
| Product Name: | TC450 Crown Block | Type: | Rotary Drilling Rig |
|---|---|---|---|
| Dimension: | 3407 *2722*2856 Mm | Max. Hook Load: | 4500 KN |
| OD Of Sheave: | 1524 Mm | Weight: | 9750 Kg |
| Dia. Of Wireline: | 38 Mm | Qty. Of Sheave: | 7 |
| Color: | Red | Material: | Carbon Steel |
| High Light: | API 4F Drilling Rig Spare Parts,TC450 Top Lifting Crown Block,API 4F Top Lifting Crown Block |
||

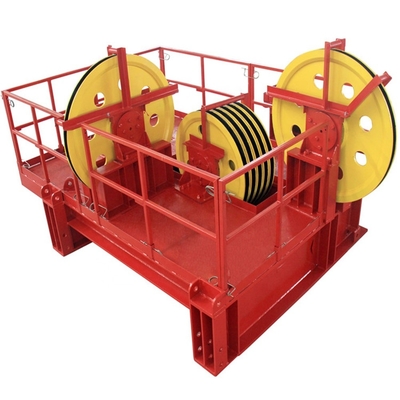

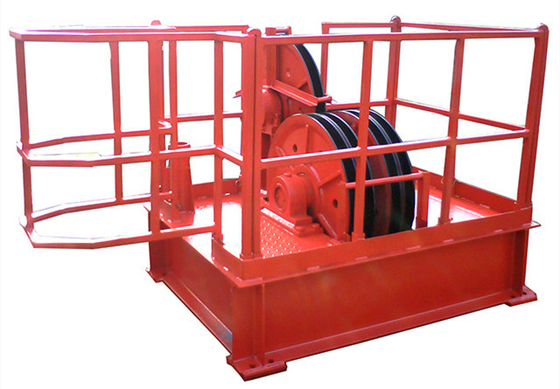

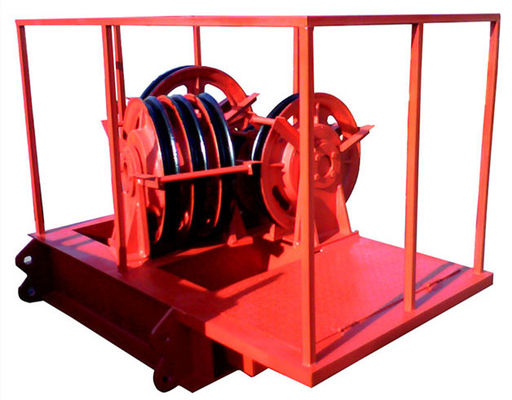

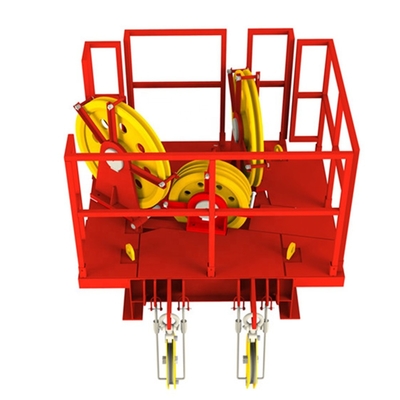

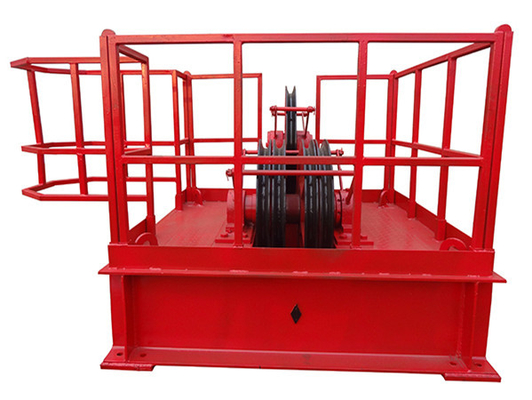

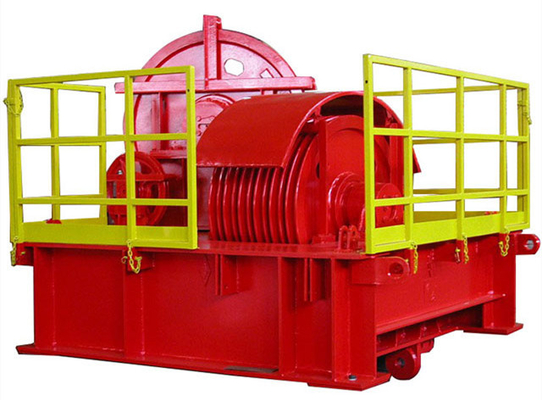

TC450 Crown Block API 4F Drilling Rig Spare Parts Top Lifting Crown Block
TC type Crown Block Features of Drilling Rig Spare Parts
● The crown blocks complies with API 4F standard, and conforms to the SY/T5527 specification.
● The rope ward-off structure can prevent the rope from falling off.
● The crane boom is for the repairing of the sheaves.

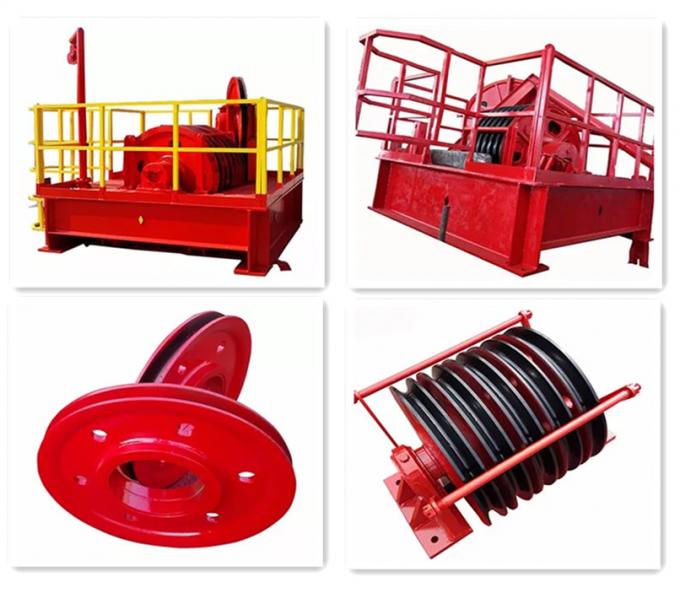

● Equipped with sand line sheaves and auxiliary sheaves .
● The pulley can exchange with the other matching traveling block
Crown Block Datasheet of Drilling Rig Spare Parts
| Model | TC30 | TC50 | TC90 | TC135 | TC170 | TC225 | TC315 | TC450 | |
| Max. hook load kN(1bs) |
300 (66000) | 500 (110000) | 900 (200000) | 1350 (300000) | 1700 (37400) | 2250 (500000) | 3150 (700000) | 4500 (1000000) | |
| Dia. of wireline mm(in) |
24 (15/16) | 24 (15/16) | 26 (1) | 29 (1 1/8) | 29 (1 1/8) | 32 (1 1/4) | 35 (1 3/8) | 38 (1 1/2) | |
| OD of sheave mm(in) |
475(18 3/4) | 610 (24) | 660 (26) | 1005 (40) | 1005 (40) | 1120 (44) | 1270 (50) | 1524 (60) | |
| Qty. of sheave | 4 | 5 | 5 | 5 | 6 | 6 | 7 | 7 | |
| Overall dimensions mm(in) | Length | 738 (29) | 860(33 7/8) | 1208 (47 9/16) | 2320 (91 11/32) | 2668(105) | 2668 (105) | 3112 (123) | 3407 (134) |
| Width | 472 ( 18 5/8 ) | 670 (26 7/16) | 1092 (43) | 1436 (56 17/32) | 2460 (97) | 2709(107) | 2783(110) | 2722(107) | |
| Height | 575(22 5/8) | 588 (23 1/8) | 1207 (47 1/2) | 1781 (70 1/2) | 1855 (73) | 2469 (97) | 2800(110) | 2856(112) | |
| Weight kg(1bs) |
245 (540) | 464 (1023) | 1500(3307) | 2775(6118) | 4540(9988) | 5270 (11594) | 7600 (16720) | 9750 (21450) | |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
