Product Details:
|
| Product Name: | Pneumatic Tyre Union | Material: | Carbon Steel & Tube Rubber |
|---|---|---|---|
| Specification: | 4"~16" | Working Environment: | -45℃-50℃ |
| Maximum Sealing Pressure: | 0.4MPa | Recovery Time: | 1~3s |
| Applicable Pipe Diameter: | 116mm-380mm | Application: | Pipe Lines Connect |
| Feature: | Quick Install And Seal | Head Code: | Round |
| High Light: | Drilling Fluid Pipelines Pneumatic Union,Pneumatic Tyre Air O Grip Union,Drilling Rig Air O Grip Union |
||

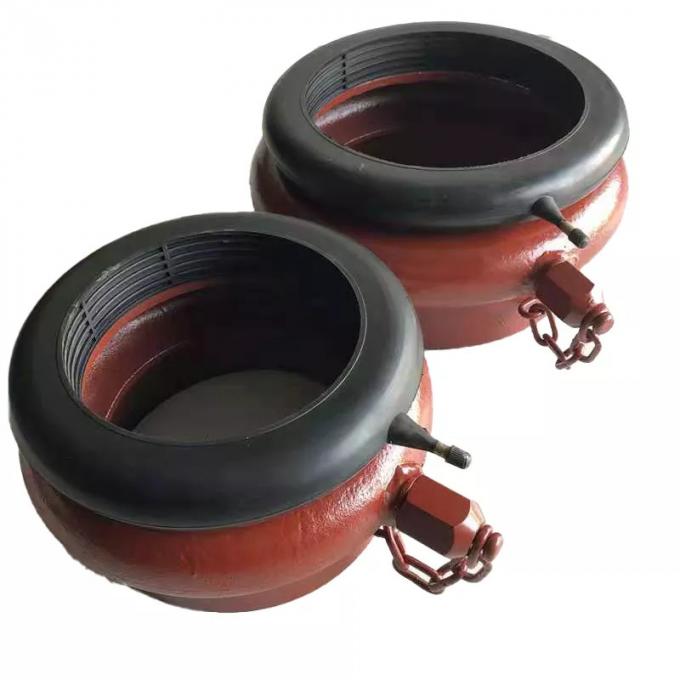

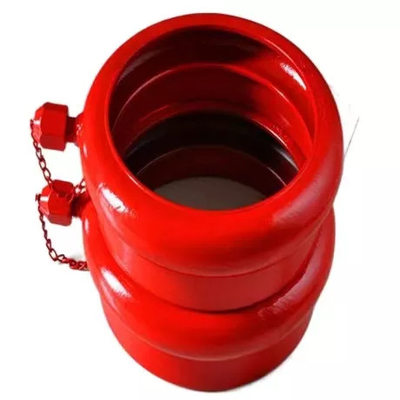

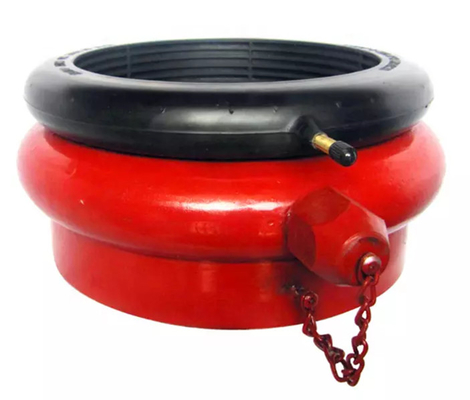

Air O Grip Union Drilling Rig Spare Parts Drilling Fluid Pipelines Pneumatic Tyre Union
Air O grip Union description of Drilling Rig Spare Parts
Air Grip Union is widely applied in drilling fiuid pipelines, with features of low-pressure, large pipesize, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system. 150 psi maximum line pressure, 4, 6, 8, 10, 12, 14and 16- inch sizes
Recommended service: Mud suction and return lines and low-pressure fiuid lines.
Pneumatic Tyre Union Features:
* Shot of rig air infiates tube to seal around pipe
* Fast, easy make-up without close alignment
* Allows pipe expansion or misalignment without breaking the seal
* No nuts, bolts, or wrenches required
In the Air Grip Unions(Air-O-Unions)we have patents
1. Medium available: mud,oil,water
2. Medium temperature:-45°C ~50°C
3. Reconversion time when defiated: 1-3 seconds.
4. Medium presssure:0.4Mpa

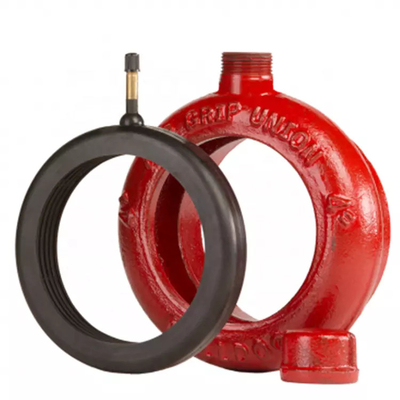

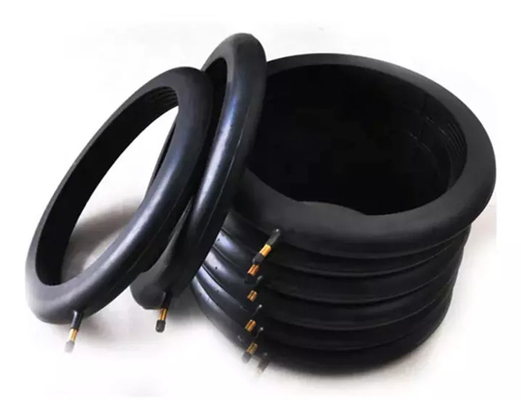

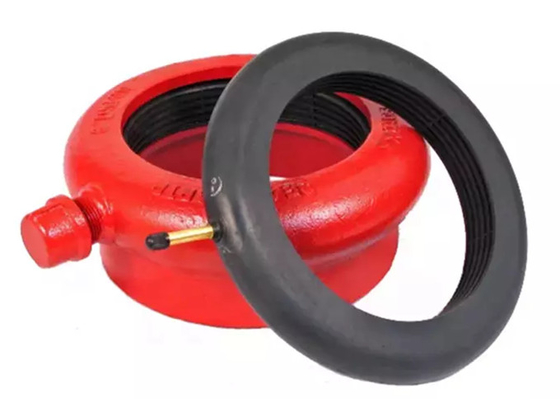

5. Structure: Steel shell and air bag
6. Material: shell for 20# casting steel, Tyre for rubber.

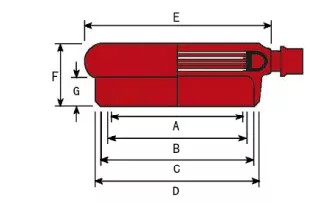

| Normal Pipe | 4″ | 6″ | 8″ | 10″ | 12″ | 14″ | 16″ |
| Size(mm) | -100 | -150 | -200 | -250 | -300 | -350 | -400 |
| Tube I.D.(mm)A | 114 | 171 | 222 | 278 | 329 | 384 | 413 |
| Body I.D.(mm)B | 117 | 176 | 227 | 283 | 333 | 388 | 416 |
| Butt-weld I.D.(mm)C | 129 | 203 | 257 | 308 | 340 | 409 | 441 |
| Butt-weld I.D.(mm)D | 141 | 219 | 273 | 324 | 356 | 425 | 547 |
| Body O.D.(mm)E | 168 | 260 | 311 | 368 | 419 | 476 | 503 |
| Height(mm)F | 80 | 102 | 102 | 108 | 108 | 108 | 108 |
| Wt.(kgs)-Air bag | 0.3 | 0.65 | 0.8 | 1 | 1.2 | 1.5 | 1.7 |
| Wt.(kgs)-Assembly | 5.5 | 8.2 | 9.2 | 12 | 13.5 | 15 | 20 |
