Product Details:
|
| Product Name: | V-Belt | Type: | A/B/C/D/3V/5V/8V/5VX/XPA |
|---|---|---|---|
| Color: | Black | Material: | Rubber, CR ,EPDM |
| Temperature Range: | -55℃ To 70℃ | Feature: | Non-slipping |
| Application: | Oilfield Mud Pump | Condition: | New |
| High Light: | Drilling Rig Three Ribbed V Belt,Wedge Rubber Three V Belt,Ribbed Rubber V Belt API |
||
API Wedge Rubber Three V-Belt Drilling Rig Spare Parts Ribbed V Belt
Oilfield Drilling Rig Spare Parts V-Belt

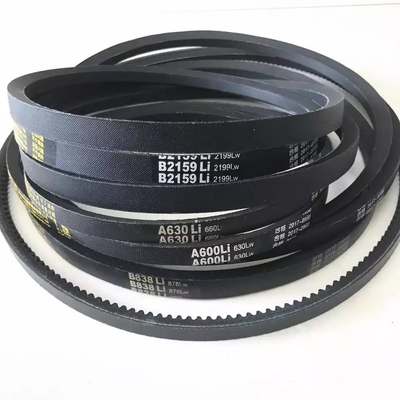

Common V-belt (O, A, B, C, D, E) consists of coating layer, extension layer, brute force layer, compression rubber layer and other parts, and the brute force layer is formed by multilayer cord fabric and single row polyester cotton rope, executive national
standard: GB/T1171-1996
Wedge V-belt (9N, 15N, 20N, 25N) consist of coating layer, extension layer, brute force layer, compression rubber layer and other parts, and the brute force layer is formed by multilayer cord fabric and single row polyester cord, executive national standard: GB/T12730-1991

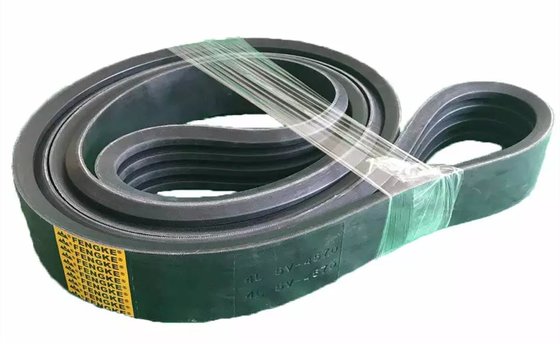

Banded V-belt (3V, 5V, 8V), executive national standard: GB/2819-1996
SP series V-belt (A, B, C), executive national standard: GB/T11544-1989
Linked V-belt (A, B, C, D, E)
Drilling Rig Spare Parts V-Belts Features:
High transmission efficiency
Low noise
Easy clutch
High load
Good bending resistance
Fine wear resistance
Strong shock resistance
Reliable tension capacity, suitable for tensioning wheel clutch
| Type | Top Width (mm) | Height (mm) | Angle (°) | Pitch Length (mm) | Nominal Length (inch) | Nominal Length (mm) |
| A | 13 | 10 | 40 | 15 | 60-200 | 1524-5080 |
| B | 17 | 13 | 40 | 19 | 60-350 | 1524-8890 |
| C | 22 | 16 | 40 | 25.5 | 100-350 | 2540-8890 |
| D | 32 | 21 | 40 | 37 | 100-350 | 2540-8890 |
| 3V | 9 | 10 | 40 | 10.3 | 40-140 | 1016-3556 |
| 5V | 15 | 16 | 40 | 17.5 | 60-355 | 1524-9017 |
| 8V | 25 | 25 | 40 | 28.6 | 100-560 | 2540-14224 |
| AX | 13 | 10 | 40 | 15 | 20-100 | 508-2540 |
| BX | 17 | 13 | 40 | 19 | 20-100 | 508-2540 |
| CX | 22 | 16 | 40 | 25.5 | 40-100 | 1016-2540 |
| 3VX | 9 | 10 | 40 | 10.3 | 25-100 | 635-2540 |
| 5VX | 15 | 16 | 40 | 17.5 | 50-100 | 1270-2540 |

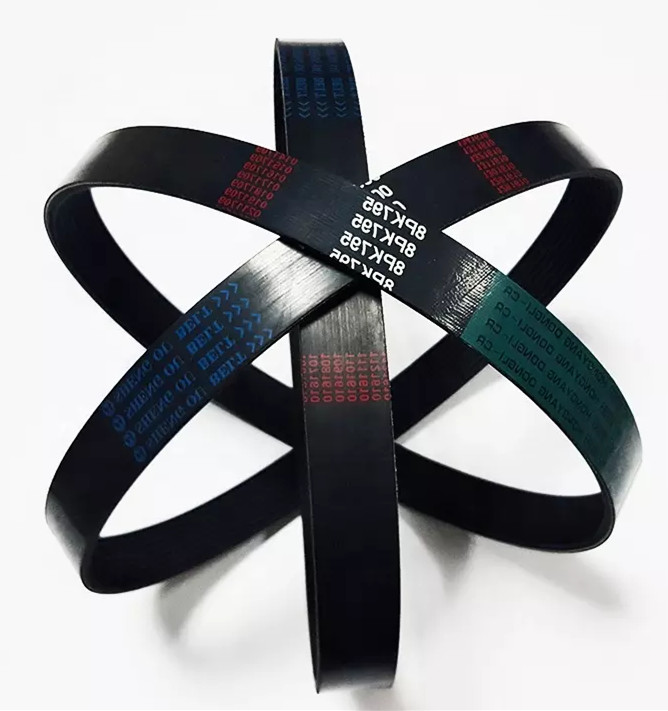

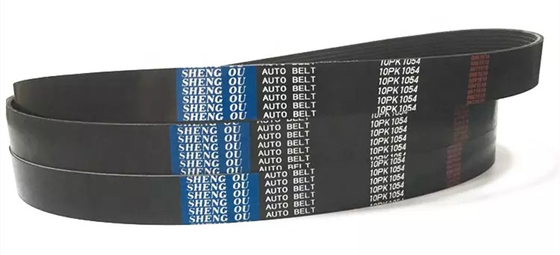

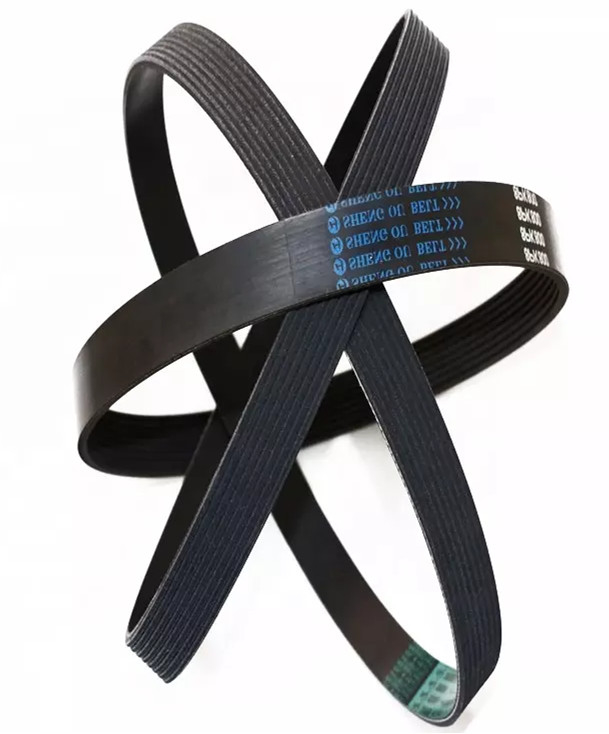

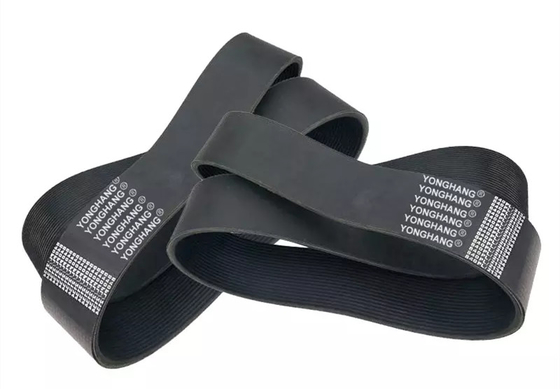

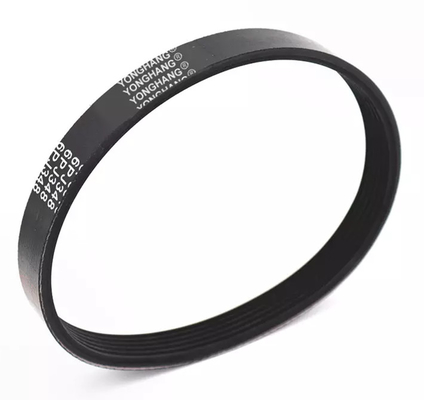

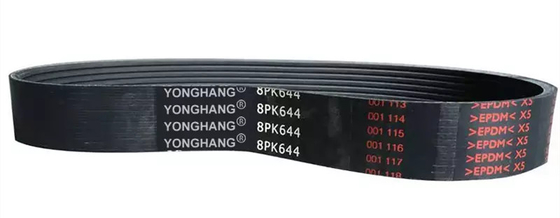

| Type | Rib section(mm) | Angle of rib | Belt Thickness(mm) | Rib numbers | Length range(mm) |
| PH | 1.6 | 40 | 3 | 3-54 | 250-1270 |
| PJ | 2.34 | 40 | 4 | 3-36 | 250-1880 |
| PK | 3.56 | 40 | 3-6 | 3-23 | 600-3000 |
| PL | 4.7 | 40 | 10 | 3-16 | 900-3000 |
| PM | 9.4 | 40 | 17 | 3-8 | 1500-3000 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
Oilfield Drawwork Parts Transmission chains
