Product Details:
|
| Product Name: | Swivels Washpipe Packing Assembly | Thread Below Sub: | 6 5/8 Inch |
|---|---|---|---|
| Thread Below Sub With Hose: | 4LP | Appearance: | Smooth |
| Material: | Carbon Steel | Product Categories: | Top Drive Spare Parts |
| Weight: | 10kg | Application: | Drilling Rig |
| High Light: | Washpipe Top Drive System Parts,4LP Top Drive Spare Parts,Drilling Swivel Top Drive System Components |
||

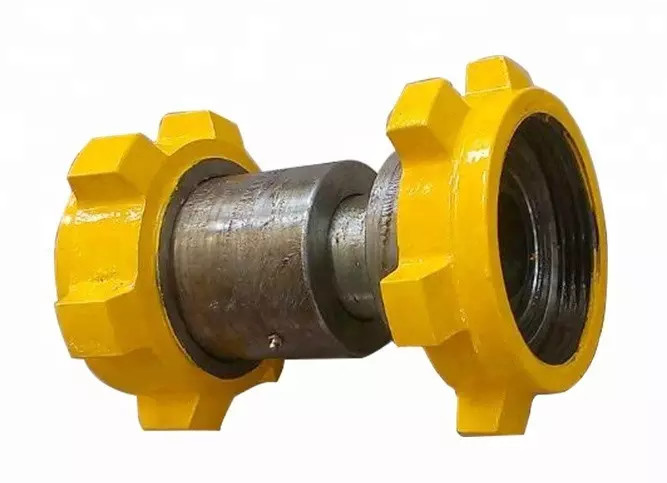

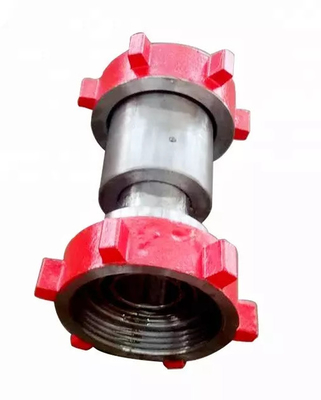

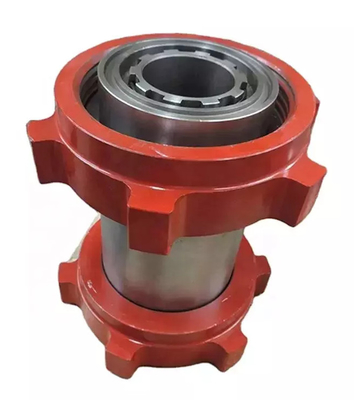

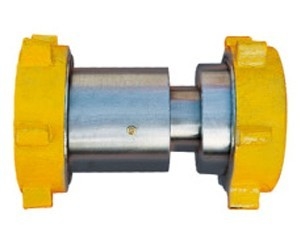

Swivels Washpipe Packing Assembly Drilling Rig Spare Parts Top Drive System Accessories
Swivels Washpipe Packing Assembly Description of Drilling Rig Spare Parts
Swivels Type SL are necessary hoisting tools for hanging drill pipes and jionting hoses in well repairing. There are type SL 35, SL60, SL 90 and SL135,SL225,SL450. They are designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment. The swivels are necessary hoisting tools for hanging drill pipe and jointing hose in well repairing.
Drilling Rig Spare Parts Swivels Washpipe Packing Assembly Feature:
(1) Excellent wear resistance: The wear resistance is the best of all swivels washpipe packing assembly. Laboratory measurement results show that the wear resistance of UR is 3 to 5 times that of natural rubber, and it is often as high as about 10 times in practical applications.
(2) The swivels washpipe packing assembly has high strength and good elasticity within the hardness range of Shore A60 to Shore A70.
(3) Good cushioning and shock absorption. At room temperature, the UR damping element can absorb 10%~20% of the vibration energy. The higher the vibration frequency, the greater the energy absorption.
(4) Good oil resistance and chemical resistance. swivels washpipe packing assembly has less affinity with non-polar mineral oil, and is hardly eroded in fuel oil (such as kerosene, gasoline) and mechanical oil (such as hydraulic oil, engine oil, lubricating oil, etc.) Much better, comparable to nitrile rubber. The disadvantage is that the swelling in alcohols, esters, ketones and aromatic hydrocarbons is relatively large.
(5) The friction coefficient of the swivels washpipe packing assembly is relatively high, generally above 0.5.
(6) Swivels washpipe packing assembly has good low temperature resistance, ozone resistance, radiation resistance, electrical insulation and adhesion.
Swivels Washpipe Packing Assembly Technical Parameter of Drilling Rig Spare Parts
| Model | SL135 | SL225 | SL450 | ||
| Max. static load kN(lbs) | 1350 | 2250 | 4500 | ||
| Max. Rotary speed (r/min) | 300 | 300 | 300 | ||
| Max. working pressure(Mpa) | 35 | 35 | 35 | ||
| Hook Clearance (mm) | 495 | 540 | 549 | ||
| Center Pipe Diameter (mm) | 64 | 75 | 75 | ||
| bore of stem mm(in) | 752 15/16 | 752 15/16 | 752 15/16 | ||
| Connection Screw Thread | Connect to Center Pipe API | REG 4 1/2,LH | REG 6 5/8,LH | REG 7 5/8,LH | |
| Connect to Kelly API | REG 6 5/8,LH | REG 6 5/8,LH | REG 6 5/8,LH | ||
| Model of air motor | FMS-20 | FMS-20 | FMS-20 | ||
| Rated speed r/min | 2800 | 2800 | 2800 | ||
| Power kW | 14.7 | 14.7 | 14.7 | ||
| Rated pressure MPa | 0.6 | 0.6 | 0.6 | ||
| Air consume volume m3/min | 17free air | 17free air | 17free air | ||
| Rated spinning speed r/min | 92 | 92 | 92 | ||
| Max. spinning torque N·m | 3000 | 3000 | 3000 | ||
| Overall dimension mm(in) | Length | 2505 | 2880 | 3015 | |
| Width | 758 | 1046 | 1096 | ||
| Height | 840 | 1065 | 1065 | ||
| Masskg(kg) | 1341 | 2570 | 3060 | ||
