Product Details:
|
| Product Name: | Sucker Rod Coupling | Material: | Carbon Steel, Alloy Steel |
|---|---|---|---|
| Size Range: | 5/8-1 3/4" | Grade: | T,SM |
| Weight: | 0.56kg | Usage: | Well Control System |
| Machine Type: | Drilling Tool | Processing Type: | Forging |
| High Light: | API 11B Polished Rod Coupling,Drilling Rig Sucker Rod Coupling,SM Sucker Rod Coupling |
||
API 11B Polished Rod Coupling Drilling Rig Spare Parts SM Sucker Rod Coupling

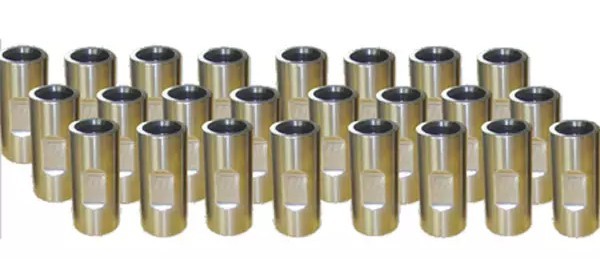

Sucker Rod Coupling description of Drilling Rig Spare Parts
Sucker rod coupling have the same box thread size in each end are used for connecting sucker rod and/or pony rod, and/or sinker bars with sucker rod threads.
The polished rod coupling have the same box thread size in each end are used for connecting polished rod and/or sinker bars with polished rod threads to the sucker rod string.
The sub-coupling have different sizes of box threads in each end are used for connecting two sizes of sucker rods or a polished rod to a sucker rod string.
Class T and Class SM coupling for sucker rods are manufactured as per API Specification 11B. For the thread cutting, we are using cold form rolled by displacing rather than by removing of material for making the coupling thread. The thread rolling cutting results in a compressive stress at the root of the thread, giving maximum strength to the traditional weak point of cut-thread couplings.

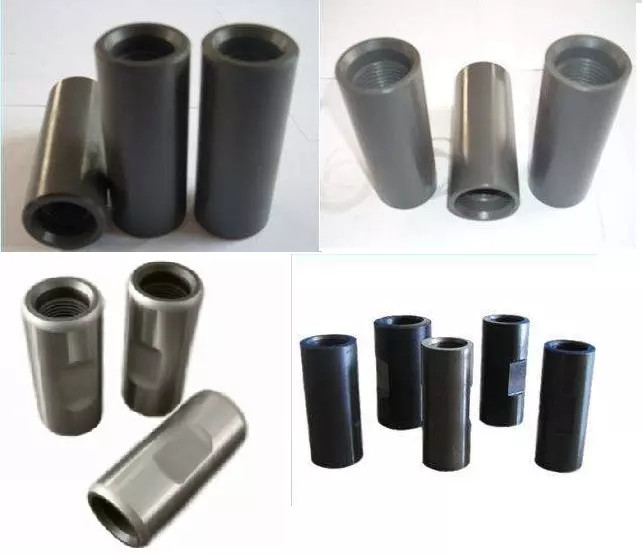

Class T coupling is using AISI 5140 to manufacture.The coupling is coated using phosphate chemical treatment or black oxide on customer’s request.For Class SM coupling, the spray metal is a specification hardening process and is applied on the base metal.
The couplings are available in full size, slim hole and over size.Also, combination couplings are available for different diameters (sub-coupling) for both Class T and Class SM couplings.
We recommend changing sucker rod couplings after three make-ups, provided the connection threads have been inspected and deemed acceptable for reuse.
Drilling Rig Spare Parts Drill Pipe Joint Datasheet
| Pin size | Full Size/Slim Hole | Outside Diameter | Coupling Length | Weight per Coupling | |
| in | in | mm | in | kgs | |
| 5/8" | FS | 1 1/2" | 38.1 | 4" | 0.58 |
| SH | 1 1/4" | 31.75 | 4" | 0.34 | |
| 3/4" | FS | 1 5/8" | 41.28 | 4" | 0.63 |
| SH | 1 1/2" | 38.1 | 4" | 0.47 | |
| 7/8" | FS | 1 13/16" | 46.04 | 4" | 0.77 |
| SH | 1 5/8" | 41.28 | 4" | 0.52 | |
| 1" | FS | 2 3/16" | 55.56 | 4" | 1.23 |
| SH | 2" | 50.8 | 4" | 0.89 | |
| 1 1/8" | FS | 2 3/8" | 60.33 | 4 1/2" | 1.48 |
| SH | 2 1/4" | 57.15 | 4 1/2" | 1.21 | |
