Drilling Rig High Pressure FMC SPM Crossover Sub With FIG 1502 Hammer Union

Drilling Rig Spare Parts High Pressure FMC SPM Crossover Sub With FIG 1502 Hammer Union

Crossover Sub description of Drilling Rig Spare Parts

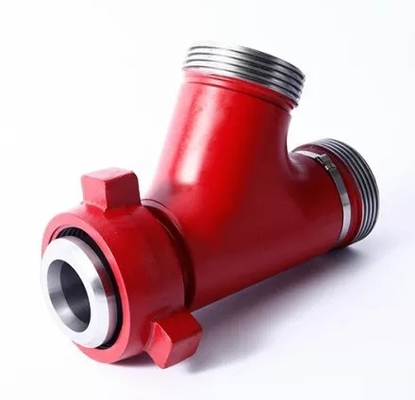

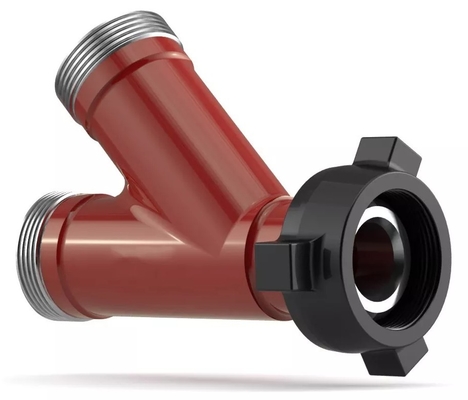

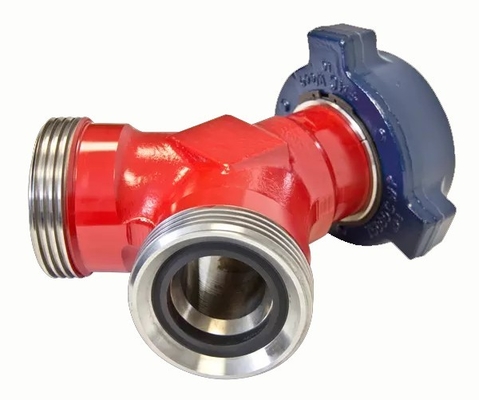

High Pressure Figure 1502 Integral Laterals are manufactured from hot forged alloy steel with special chemical properties, and are carefully heat-treated to enhance tensile strength and low temperature impacts. For incorporation into ground or truck mounted manifolds, the Kemper large bore 45° forged alloy steel Lateral is precision machined with integral 2", 3" or 4" Kemper Hammer Union ends in almost any Figure Number combination.

Variable diameter joints is a kind of both end with diffrent size, type of pipe joints, are indispensable parts of pipeline connetion, can manufacture according to the need of user. the specification is 2" to 5", the rated working pressure of 14-140Mpa(2000Psi to 20000Psi), the interface form including all kinds of types of thread,both at home and abroad by the nonyl head, flange,etc. can provide the normal temperature, low temperature and sulfurous gas confitions apply.

Integral joints is an essential part of high pressure liquid pipeline connection parts,can effectively achieve the liquid distrubution an flow, fluid change to wait for a function, SJ integral joints is my factory in the digestion and absorption of FMC, foreign SPM technololgy innovation on the basis of the improvement of products, its specifications have 2" to 4" , rated working pressure of 21-140Mpa(3000Psi to 30000psi), can provide the normal temperature, stable quiality, in addtition to the type listed in this catalog, can be customized accordting t user requirements for special purpose an specifications of the whole joints.

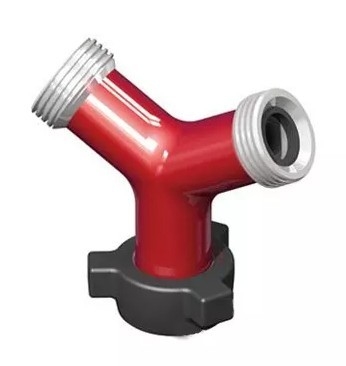

(All type:L90DHS elbow, TEE joints, Y type Joints, Manifold Joint, spider, fishtail joint, three-dimentional, three-dimentaional cross, three dimentional manifold joint Y type Joints).

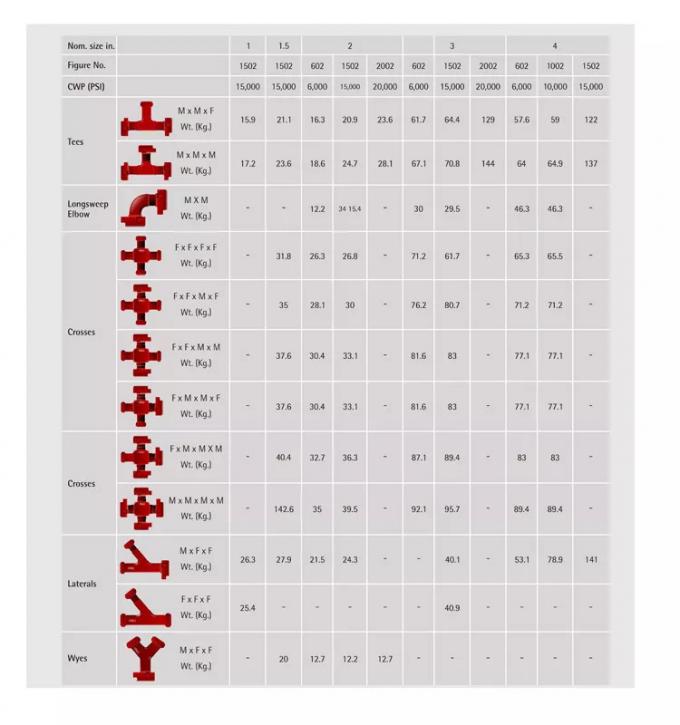

Drilling Rig Spare Parts Crossover Sub Datasheet
