Product Details:
|
| Product Name: | PQ Pneumatic Safety Valve | Color: | Brass |
|---|---|---|---|
| Working Temperature: | 5℃~60℃ | Weight: | 0.1kg |
| Leakage: | 150Nml/min | Size: | 8X2.5X2.5 Cm |
| Machine Type: | Oil Equipment | Package Type: | Carton |
| High Light: | Safety Valve Drilling Rig Components,PQ-L10-40 Pneumatic Safety Valve,150Nml/Min Pneumatic Safety Valve |
||

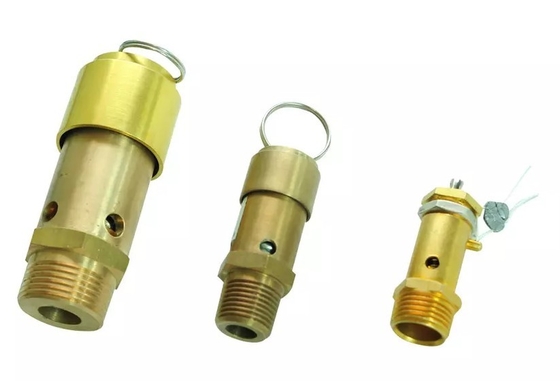

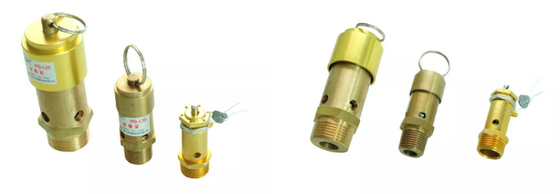

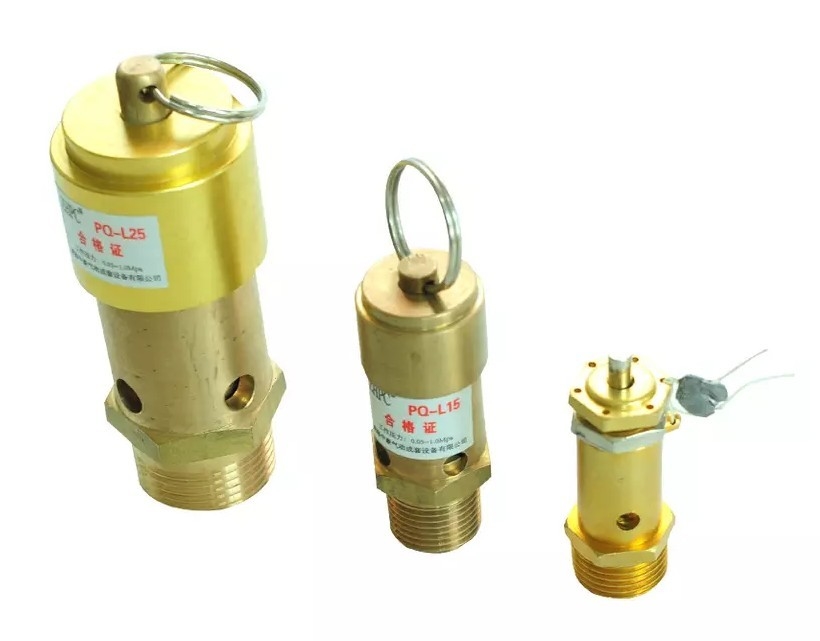

Pneumatic Safety Valve Drilling Rig Spare Parts PQ-L10-40 Safety Valve
PQ Safety Valve description of Drilling Rig Spare Parts
Features:
In a pneumatic transmission system, a safety valve is a valve used to prevent damage to pneumatic devices, equipment and pipelines and limit the maximum pressure of the circuit. When the air pressure exceeds the maximum limit pressure, the safety valve automatically opens to exhaust, and when the air pressure is lower than the maximum limit pressure, the safety valve automatically closes.
Drilling Rig Spare Parts PQ Safety Valve datasheet
| Model | PQ | |||||
| Nominal diameter | 10mm | 15mm | 20mm | 25mm | 40mm | |
| Working pressure range | 0.05～1.00MPa | |||||
| Operating temperature | 5～60°C | |||||
| Model | PQ-L10 | PQ-L15 | PQ-L20 | PQ-L25 | PQ-L40 |
| A | Ø25 | Ø27 | Ø45 | Ø80 | |
| B | 75 | 130 | 287 | ||
| C | 82 | 135 | 300 | ||
| M | ZG3/8" | ZG1/2" | ZG3/4" | ZG1" | ZG11/2" |
| ZG1/2" | ZG3/4" | ||||

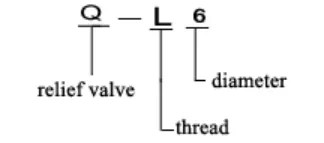

Graphic symbols Model description

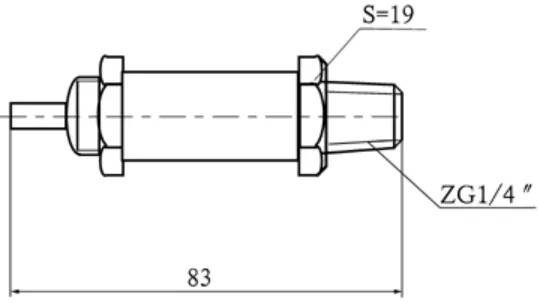

Appearance and installing
