Product Details:
|
| Product Name: | Pressure Regulating Valve | Color: | Dark Brown |
|---|---|---|---|
| Weight: | 1.5kg | Size: | 8.5X8.5X17 Cm |
| Machine Type: | Oil Equipment | Material: | Aluminium Alloy |
| High Light: | Drilling Rig Spare Parts Regulating Valve,TJQ-L15 Pressure Regulating Valve,Drilling Rig Pressure Regulating Valve |
||

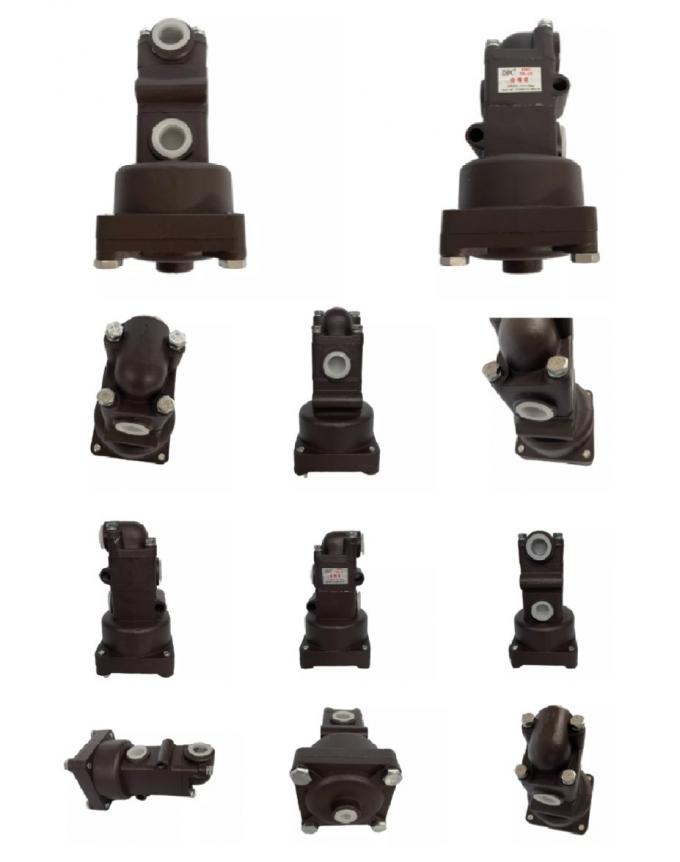

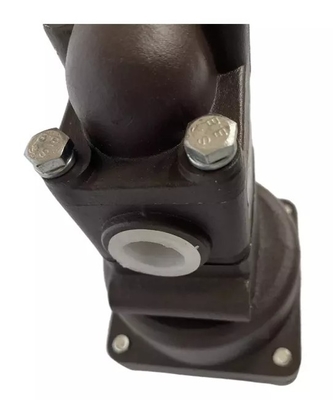

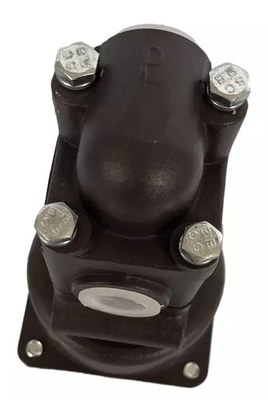

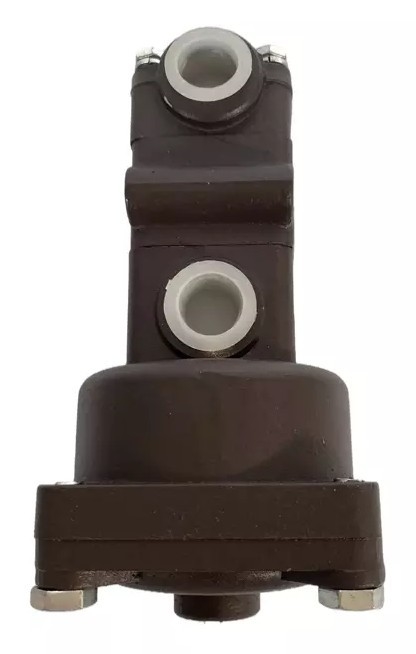

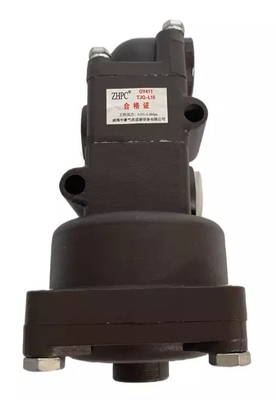

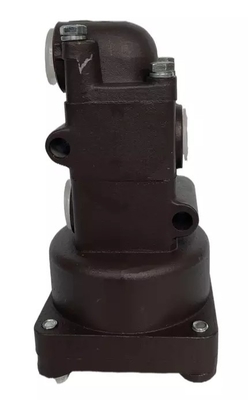

Aluminium Alloy Drilling Rig Spare Parts TJQ-L15 Pressure Regulating Valve
Pressure Regulating Valve description of Drilling Rig Spare Parts
TJQ-L15 pressure regulating valve is a new type of pneumatic control regulator designed in recent years. This valve is suitable for remote control and pneumatic actuators in various pneumatic control systems where the starting balance is required to reach the rated value. The gas flow rate at the working port The valve casing is made of aluminum alloy, which is composed of valve body, valve cover, connecting body, valve core, sealing ring and other parts. The valve casing is made of aluminum alloy, and the valve body is , valve cover, connecting body, valve core, sealing ring and other parts. The greater the control gas pressure, the greater the output port pressure, the smaller the control gas pressure, the smaller the output port pressure, if there is no control gas input, the valve core and inner valve seat are closed, and there is no compressed air output at the output port.
The valve is mainly used for pneumatic systems such as oil drilling rigs, geological exploration drilling rigs, oil maintenance drilling rigs, etc. that require slow-start and fretting pressure control circuits, such as drilling rig control circuits, and can also be used for mining equipment and ships, The pressure control circuit.
Drilling Rig Spare Parts Pressure Regulating Valve datasheet
| Parameter | |
| model | TJQ-L15 |
| size | 8.5*8.5*17 |
| weight | 1.5 |
| Nominal diameter | 15mm |
| Nominal pressure | 1.0MPa |
| Adjustment range | 0-0.8MPa |
| Leakage | ≤25ml/min |
| Working temperature | -25～60℃ (Note: -40℃ low temperature products need special customization) |
| Connection method | P, O, A: ZG1/2 K:Z1/4 |
