| Product Name: | K23JD Electric Control Directional Valve | Color: | Golden |
|---|---|---|---|
| Weight: | 2.5kg | Size: | 17X10X12 Cm |
| Machine Type: | Drilling Equipment | Material: | Aluminium Alloy |
| Condition: | New | Package Type: | Carton |
| High Light: | K23JD Electric Directional Control Valve,Drilling Rig Electric Directional Control Valve,K23JD solenoid hydraulic control valve |
||

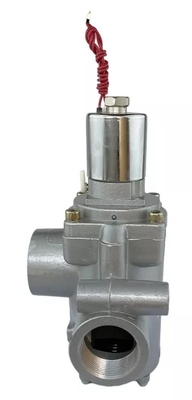

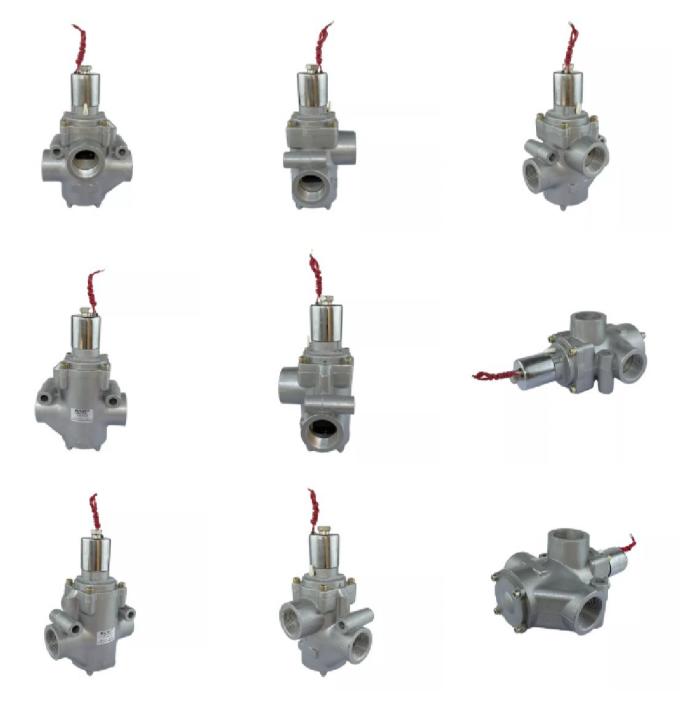

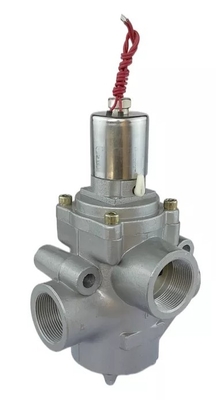

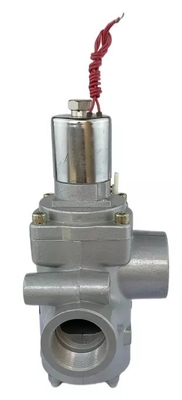

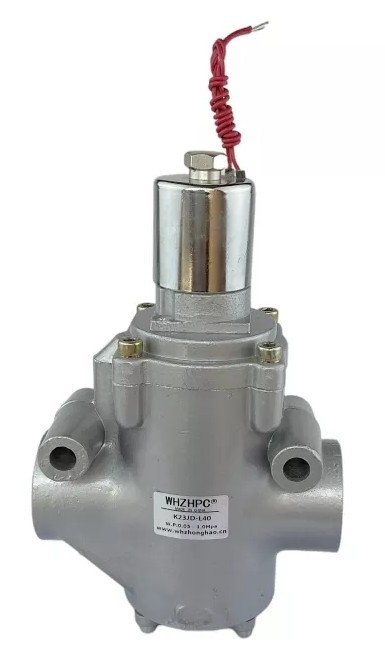

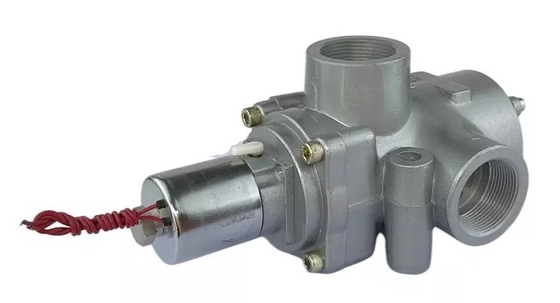

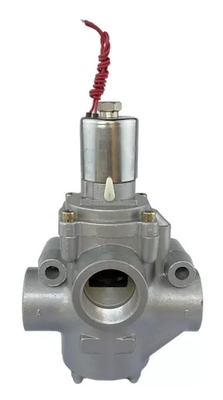

K23JD Drilling Rig Spare Parts Two-Position Three-Way Electronically Controlled Directional Valve
Electronically Controlled Directional Valve description of Drilling Rig Spare Parts
1. Features:
Two-position three-way electronically controlled globe valve is a kind of end-sealed globe directional valve, which has two structural forms: "normally closed" and "normally open". This series of valves has low air purification requirements, strong dust resistance, and has many specifications and large diameter ranges. It is commonly used to control executive components such as single-acting cylinders and diaphragm cylinders, and is also widely used in program control air circuits. If the exhaust port is blocked, it can become a two-position two-way switch type. For some large-bore double-acting cylinders, it is often difficult to solve the two-position five-way valve with a diameter of 32mm or more. The closed two-position three-way globe valve is jointly controlled to solve this problem.
This series of valves has a plate connection with a diameter of 6 to 25mm, and a flange connection with a diameter of 32mm or more.
2. Technical parameters:
| Model | K23JD-6 (T) |
K23JD-8 (T) |
K23JD-10 (T) |
K23JD-15 (T) |
K23JD-20 (T) |
K23JD-20 (T) |
K23JD-F32 (T) |
K23JD-F40 (T) |
K23JD-F50 (T) |
|
| Nominal diameter mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| Working medium | Compressed air | |||||||||
| Working pressure range MPa | 0.2～0.8 | |||||||||
| Medium temperature ℃ | 5～50 | |||||||||
| Ambient temperature ℃ | 5～50 | |||||||||
| Reversing time S | ≤0.04 | ≤0.06 | ≤0.10 | ≤0.30 | ≤0.40 | |||||
| Commutation frequency Hz | ≥6 | ≥4 | ≥2 | ≥1 | ≥0.5 | |||||
| Effective cross-sectional area≥m㎡ | 10 | 20 | 40 | 60 | 110 | 190 | 300 | 400 | 650 | |
| Leakage Nml/min | 50 | 100 | 200 | 300 | 300 | |||||
| Operating Voltage | AC: 220; 36 DC: 24; 12 | |||||||||
| Allowable voltage fluctuation% | 10～-15 | |||||||||
| Minimum working frequency (times/day) | 1/30 | |||||||||
| Solenoid pilot valve diameter (mm) | 1.2 | 2 | 3 | |||||||
| Power consumption(W) | AC | 12 | 15 | 28 | ||||||
| DC | 6 | 8 | 10 | |||||||
| Durability ≥ (ten thousand times) | 150 | |||||||||
| Model specification | d | L1 | L2 | L3 | L4 | L5 | B | B1 | H | H1 | H2 | H3 | L6 | L7 | L8 | B2 | B3 | B4 | d1 | d2 | |
| K23JD-6(T) | G1/8 | M10*1 | 68 | 88 | 28 | 25 | 58 | 7 | 144 | 6 | 14 | 28 | 28 | 25 | 50 | 36 | 48 | 5 | 8 | ||
| K23JD-8(T) | G1/4 | M12*1.25 | |||||||||||||||||||
| K23JD-10(T) | G3/8 | M16*1.5 | 86 | 121 | 40 | 33 | 64 | 7 | 169 | 10 | 19 | 38 | 40 | 40 | 74 | 6 | 40 | 52 | 6 | 15 | |
| K23JD-15(T) | G1/2 | M20*1.5 | |||||||||||||||||||
| K23JD-20(T) | G3/4 | M27*2 | 130 | 180 | 60 | 52 | 100 | 11 | 216 | 12 | 30 | 55 | 66 | 66 | 118 | 10 | 65 | 84 | 9 | 25 | |
| K23JD-25(T) | G1 | M33*2 | |||||||||||||||||||
| K23JD-F32(T) | G11/4 | M42*2 | 80 | 40 | 80 | 215 | 217.8 | 191.5 | 52.5 | ||||||||||||
| K23JD-F40(T) | G11/2 | M48*2 | |||||||||||||||||||
| K23JD-F50(T) | G2 | M60*2 | 101 | 56 | 90 | 265 | 256.8 | 216 | 65 | ||||||||||||

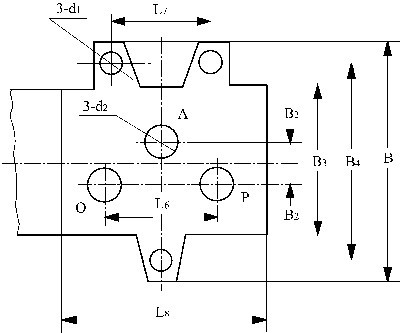

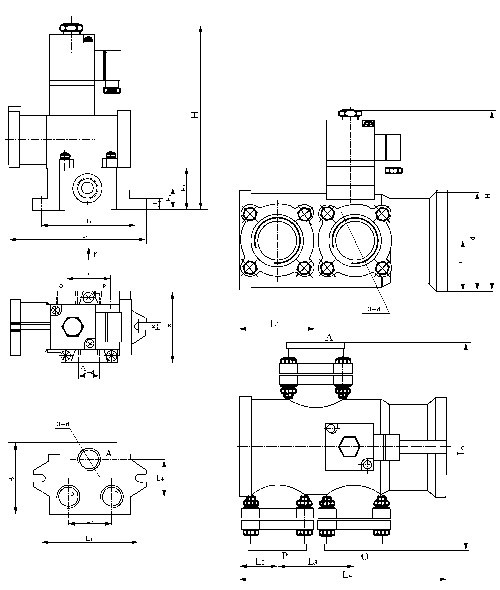

3. Shape and installation dimensions:
