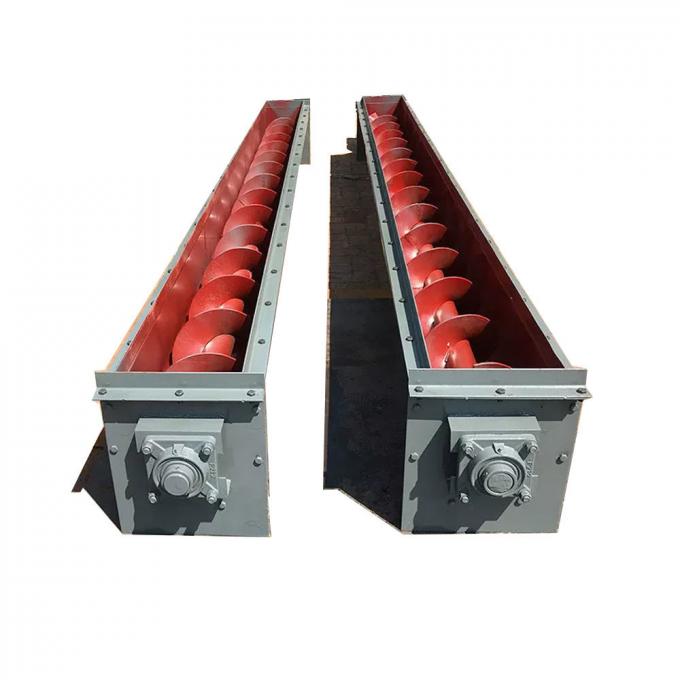

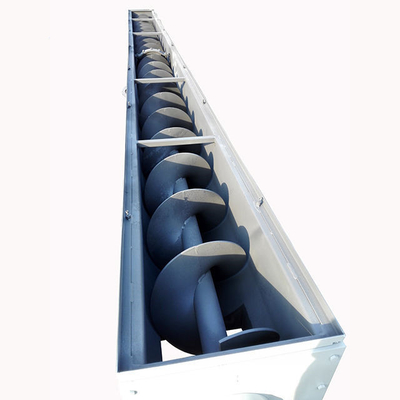

Shaft U Type Spiral / Screw Conveyor For Drilling Mud Rig Parts

Shaft U Type  Drilling Mud Spiral Conveyer/Screw Conveyer For Drilling Rig Parts

Product Application
Screw Conveyer is a continuous conveying device without disturbing traction members. It uses a rotating spiral to convey the conveyed material along the fixed casing for surface movement. The situation seems to be held and cannot be rotated. The nut moves along the screw as the translational movement, so that the force of the material not rotating with the spiral is the gravity of the material and the frictional resistance of the casing to the material.

Product Technical Parameters

Specifications: LS100,160,200,250,315,400,500,630,800,1000,1250.

The length from 4m to 70m. One gear position per 8.5m. When the length exceeds 35m, double-end drive is used.The standard length should be met when selecting the type.Special needs can be raised separately in the optional section.

The LS type screw conveyer (hereinafter referred to as the screw machine) is equivalent to the ISO1050-75 standard. It is designed and manufactured to meet the professional standards of ZBJ81005.1~2-88 "LS type screw conveyor". Compared with the GX screw machine, the structure is novel and technical indicators. Advanced, the head and tail bearings are moved to the outside of the housing. The middle suspension bearing adopts two structures of rolling and sliding interchangeability. Both are provided with dustproof sealing device. The sealing parts are made of nylon and plastic king. The resistance is small, the sealing is strong, and the resistance is strong. Good grinding property, sliding silicon tile with cast copper required to add lubricant, alloy wear-resistant cast iron tile and copper-based graphite less oil lubrication tile, cleaning device with discharge end, strong adaptability, low noise, simple operation and maintenance The position of the inlet and outlet ports is flexible, and the shaft alarm device can be additionally equipped according to the needs of the user.

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5: How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6: What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
