Product Details:
|
| Product Name: | CB Air Clutch | Core Components: | Air Tube |
|---|---|---|---|
| Torque Rating: | 41 - 29,400 Nm @ 5,2 Bar. | Mounting Type: | Flange |
| Type: | Drum Clutch | Weight: | 140 Kg |
| Condition: | New | Application: | Machinery |
| High Light: | Rubflex Air Tube Clutch,Eaton Air Tube Clutch,Airflex Type CB Air Clutch |
||

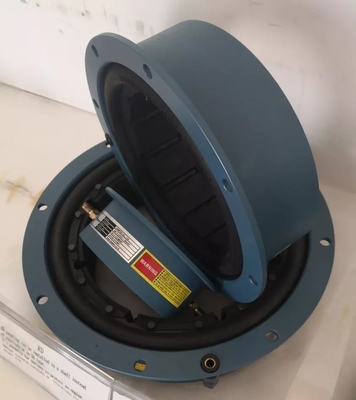

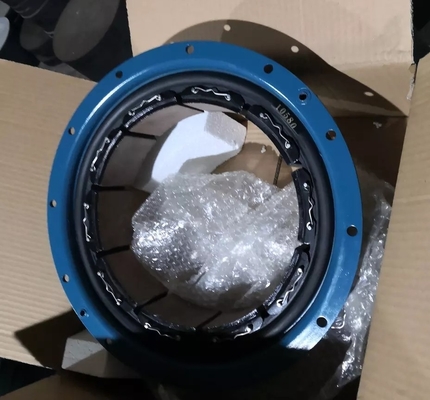

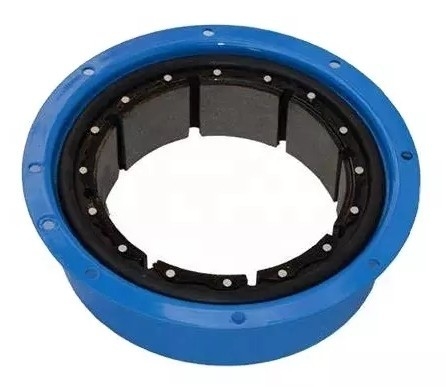

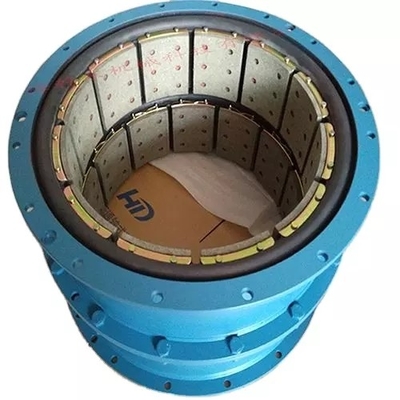

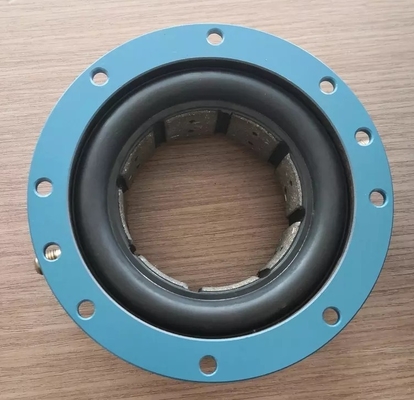

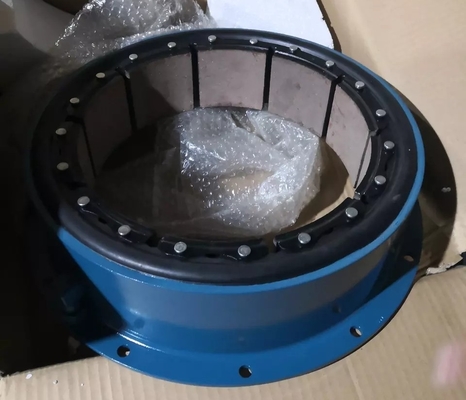

Rubflex Air Tube Clutch Drilling Rig Spare Parts Eaton Airflex Type CB Air Clutch
CB Air Clutch description of Drilling Rig Spare Parts:
CB units are an ideal match for clutch as well as brake applications in operations that are high speed and cyclical. They are also suitable for coupling and general transmission of power. The sidewalls of an adaptable neoprene and cord actuating tube are used for delivering torsional resilience through power transmission. This enables the units to accommodate minor shaft alignment issues.
Drilling Rig Spare Parts CB Air Clutch Features:
1. Small appearance, but can transmit a lot of rotating force.
2. It has strong durability and wear resistance.
3. Long product life, safe and convenient operation.
4. The clutch can be easily installed or uninstalled when transmitting power.
How to Work
Typically, an engine comes with an output shaft, and this is located near the flywheel. The clutch is a type of device that comes in a system of grabbing disks or plates, which engage power from the machinery’s flywheel and transfer this power to the transmission.
CB Air Clutch datasheet of Drilling Rig Spare Parts
| Size | Friction LiningThickness | Maximum Speed | Moment Of Inertia | Weight | Friction Area | Minimum Drum Diameter | Friction Lining Thickness | Air Tube | |
| New | Born | Cavity | |||||||
| 3CB150 | 40.7 | 2000 | 0 | 0.8 | 90.3 | 74 | 5 | 1 | 0.12 |
| 4CB200 | 113 | 2000 | 0.01 | 1.1 | 148.4 | 99 | 3 | 1 | 0.17 |
| 5CB200 | 165 | 2000 | 0.02 | 1.6 | 193.5 | 124 | 5 | 1 | 0.28 |
| 6CB200 | 231 | 1800 | 0.04 | 3.2 | 232.2 | 150 | 4 | 2 | 0.32 |
| 8CB250 | 485 | 1800 | 0.08 | 4.1 | 393.5 | 201 | 3 | 2 | 0.49 |
| 10CB300 | 921 | 1800 | 0.25 | 8.6 | 587 | 251 | 5 | 2 | 0.82 |
| 12CB350 | 1500 | 1800 | 0.46 | 12 | 825.6 | 302 | 5 | 2 | 1.31 |
| 14CB400 | 2230 | 1800 | 0.71 | 14 | 1096.5 | 353 | 5 | 2 | 1.15 |
| SI | N.m 5.2bar | rpm | kg.m2 | kg | cm2 | mm | mm | mm | dm3 |
| Item | Component Description |
| 1 | Elbow Assembly |
| 2 | Compression Ring |
| 3 | Air Connection Tube |
| 4 | Air Connection Gasket |
| 5 | Friction Shoe Assembly |
| 8 | Shoe Pin |
| 9 | Lockwire |
