Product Details:
|
| Process Type: | Forging | Color: | Blue, Red, Golden |
|---|---|---|---|
| Weight: | 25 | Seize: | 6 INCH |
| Material: | Carbon Steel | Warranty: | 1 Year |
| Name: | TCI Tricone Bits | ||
| High Light: | TCI Tricone Three Cone Rock Roller,Oil Rig Three Cone Drill Bit,Carbon Steel Drilling Rock Roller |
||

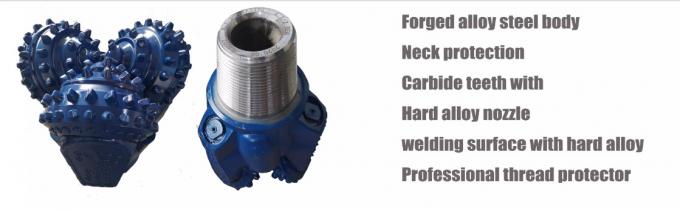

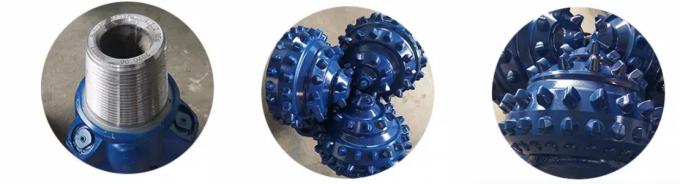

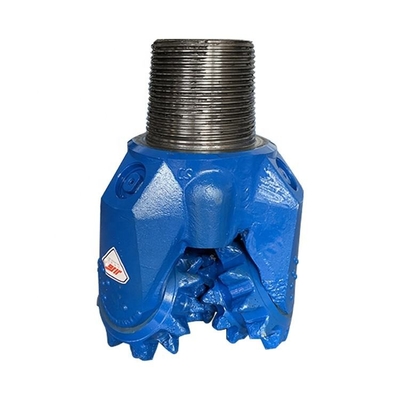

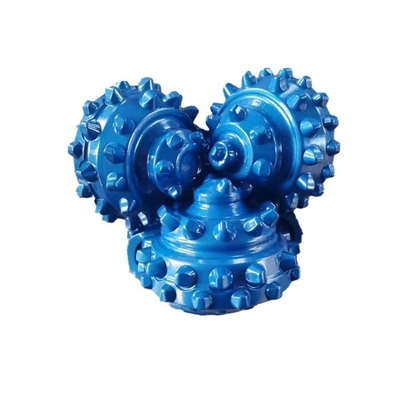

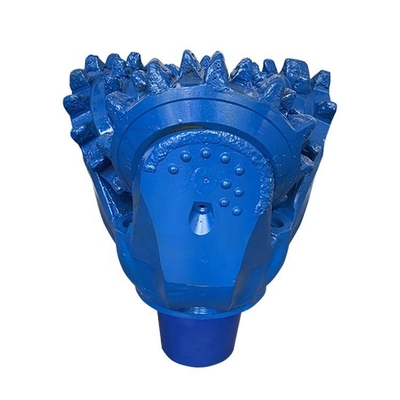

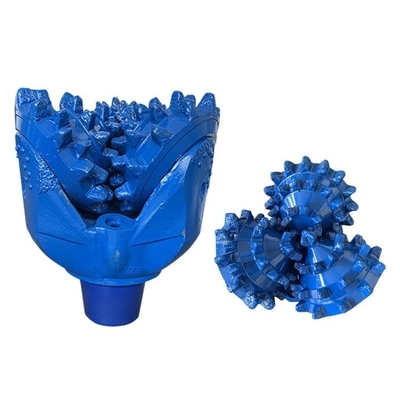

API Drilling Rig Spare Parts TCI Tricone Three Cone Rock Roller Drill Bit For Oil Rig
Soft formation TCI tricone bits:
The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.
Medium formation TCI tricone bits:
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Hard formation TCI tricone bits:
The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.
| IADC | WOB | RPM | Applicable Formations |
| (KN/MM) | (r/min) | ||
| (Bit Dia) | |||
| 116 117 | 0.35~0.8 | 150~80 | Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc. |
| 136 137 | 0.35~1.0 | 120~60 | Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium |
| soft limestone.medium soft sandstone soft formation with harder nterbeds,ect. | |||
| 216 217 | 0.4~1.0 | 100~60 | Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft |
| sandstone,soft formation with harder interbeds ect. | |||
| 246 247 | 0.4~1.0 | 80~50 | Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect. |
| 417 437 | 0.35~0.9 | 150~70 | Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft |
| limestone,etc. | |||
| 447 | |||
| 517 527 | 0.35~1.0 | 140~60 | Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft shale.soft limestone,ect. |
| 537 547 | 0.45~1.0 | 120~50 | Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft |
| sandstone,medium formation with harder and abrasiver interbeds,ect. | |||
| 617 627 | 0.45~1.1 | 90~50 | Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect. |
| 637 | 0.5~1.2 | 80~40 | Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect. |
FAQ
1.Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
