Product Details:
|
| Material: | Cast Iron | Pressure: | 45r/min |
|---|---|---|---|
| Weight: | 20 | Dimension(L*W*H):: | 40 |
| Power: | 1.8kw, Hydraulic | Warranty: | 1 Year |
| Oil Temperature: | Normal-35℃~80℃ | Usage:: | Oil |
| High Light: | BMR OMR Hydraulic Orbit Motor,OMT BMT Hydraulic Orbit Motor,OMH BM Hydraulic Orbit Motor |
||

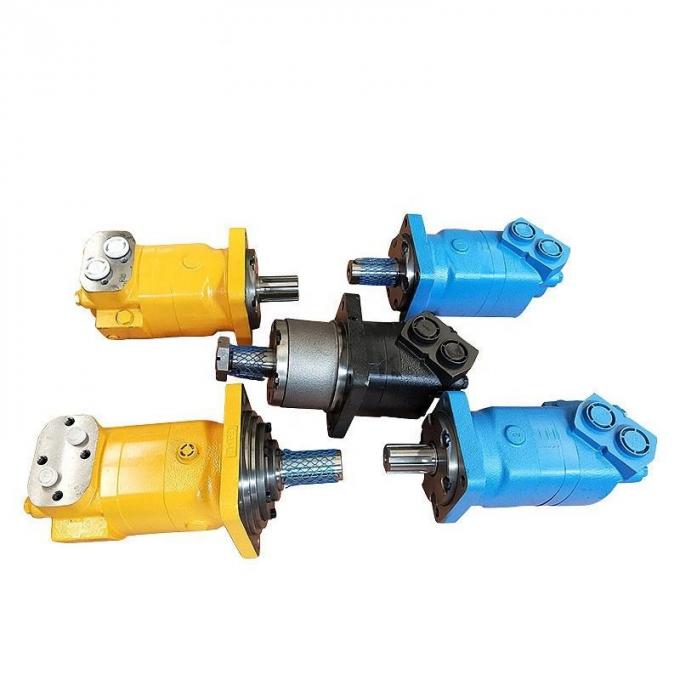

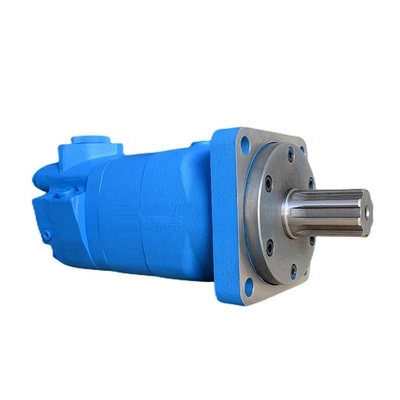

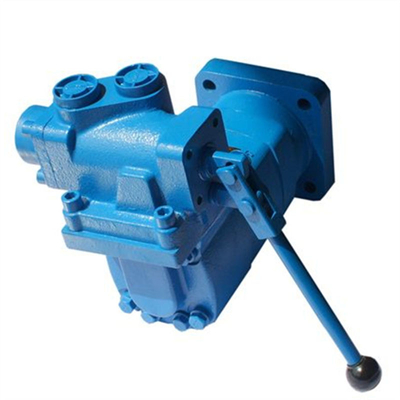

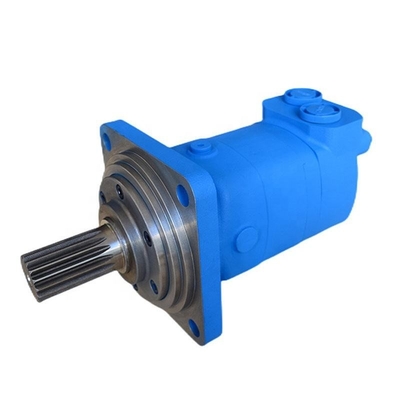

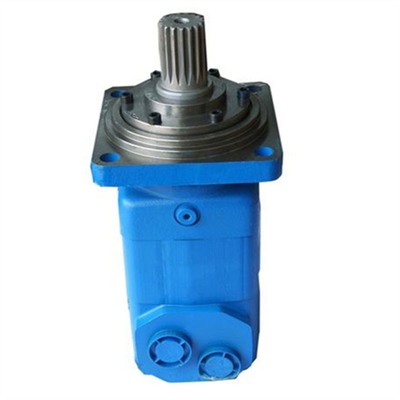

BMR OMR OMT BMT OMH BM OM 36 50 80 100 125 160 200 250 315 400 Hydraulic Orbit Motor for Drilling Rig
Hydraulic Orbit Motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Structural features
·End face distribution type cycloid hydraulic motor
·Advanced column-inlaid stator and rotor parameter design, low starting pressure, high efficiency, stable operation at low speed
·Advanced shaft seal design, high back pressure bearing capacity
·Advanced and reliable linkage shaft design, so that the motor has a long life
·Advanced flow distribution mechanism design, with the characteristics of high distribution accuracy and automatic wear compensation
·The motors are allowed to be used in series and in parallel, and the external drain pipe should be connected when used in series
·Using tapered roller bearing support design, has a large radial load capacity, so that the motor can directly drive the working mechanism
·Various types of installation and connection such as flanges, output shafts, oil ports, etc.
| 10,000 SERIES MOTORS | ||||||
| Displ. cm3/r (in3 /r) | 345 (21.0) | 480(29.3) | 665(40．6) | 940 (57.4) | ||
| Max. Speed) | Continuous | 501 | 354 | 254 | 179 | |
| (RPM) @ Flow | Intermittent | 784 | 552 | 396 | 279 | |
| Flow | Continuous | 170 (45) | 170 (45) | 170 (45) | 170145) | |
| L/min [GPM) | Intermittent | 265 (70) | 265 (70) | 265(70) | 265(70) | |
| Torque | Continuous | 1040 (9220) | 1475 (13050) | 2085 (18450) | 2700 (23910) | |
| Nm (lb-in) | Intermittent | 1390 (12310) | 1965 (17410) | 2610 (23080) | 3440 (30460) | |
| Pressure | Continuous | 205(3000) | 205(3000) | 205(3000) | 190(2750) | |
| bar | Intermittent | 275(4000) | 275(4000) | 260(3750) | 240(3500) | |
| (PSI) | Peak | 275(4000) | 275(4000) | 275(4000) | 260(3750) | |
| Weight | Standard or Wheel Mount Bearingless | 43.5 (96.0) | 45,4(100.0) | 46,3(100.0) | 47,2(104.0) | |
| Kg(lb) | 31,3 (69.0) | 33,1(73.0) | 33,1 (73.0) | 34. 9 (77.0) | ||
This is the biggest disc valve motor of our line with up to 45 GPM and 24,000 in-lb of torque in continuous mode, this motor is powerful and yet provides good efficiency
