Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line

Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line
Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line

Large Image :  Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line

Product Details:
Place of Origin: China
Brand Name: Bomco
Certification: API 9A
Model Number: 6×31WS-IWRC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3500-5000 USD PER Roll
Packaging Details: Standard Package
Delivery Time: 30~50 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Rolls Per Month

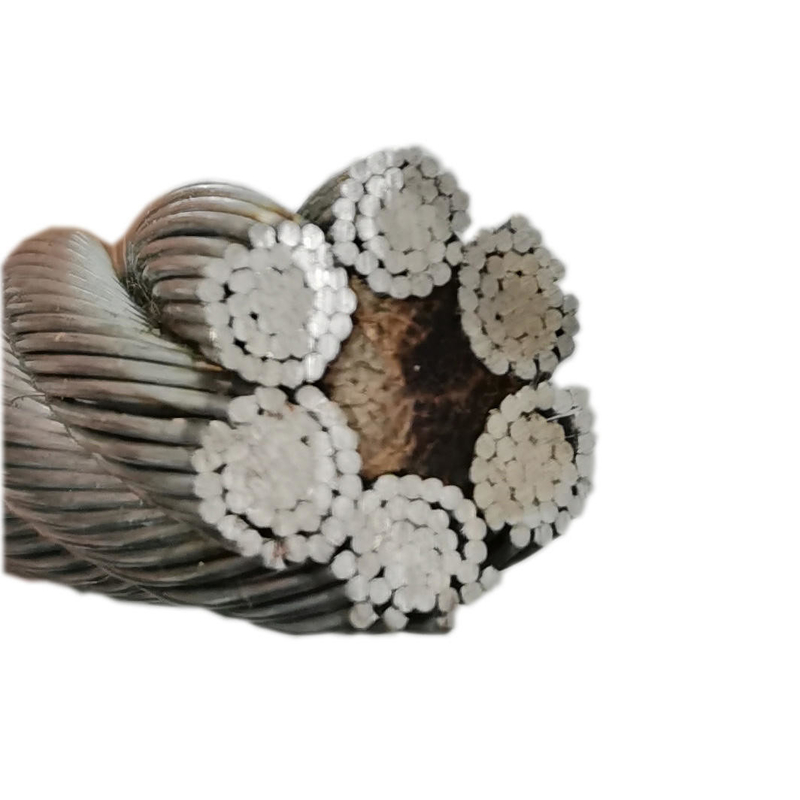

Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line

Description
Product Name: Wire Rope Rasing Line 6×31WS-IWRC Core: IWRC, IWS, FC, PPC
Tensile Strength: IPS/ EIPS/ EEIPS Surface: Galvanized

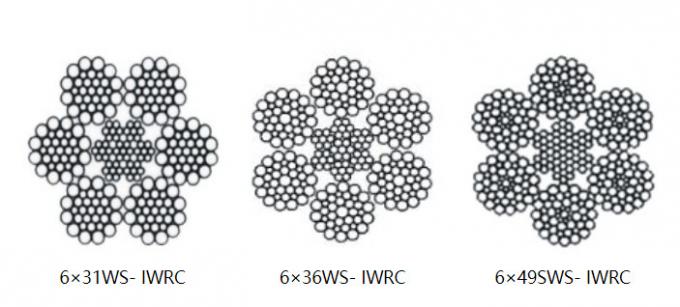

Material: Carbon Steel Structure: 31 Wire Strand Protection
Warranty: 12 Months Type: Wire Rope
Application: Oil And Gas Well Drilling Condition: New
High Light:

6×31WS-IWRC Galvanized Steel Wire Rope

,

Non Galvanized Steel Wire Rope

,

6×31WS-IWRC Rasing Line

Galvanized/Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line For Drilling Rig



Drilling line for oilfield usage is manufactured according to API 9A specification.

We can providfe you steel wire rope drilling line with high strength, long time service life, galvanized or non-galvanized, etc.

Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line 0

NO. ITEM DETAIL
1 Product Name Drill line steel wire rope
2 Steel Grade Carbon Steel
3 Standard AISI ASTM BS DIN GB JIS API ISO
4 Core IWRC, IWS, FC, PPC
5 Surface Galvanized or Non-galvanized
6 Place of Origin China(Mainland)
7 Type W/ S
8 Tensile strength IPS/ EIPS/ EEIPS



Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line 1



Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line 2Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line 3

Advantage:

  • Excellent anti-abrasion performance and flexibility.

  • Customizing by customer’s requirements.

  •

Product Parameters



Product parameters
Product parameters

/mm
Reference weight

kg/100m
Nominal Tensile Strength/MPa
1770 1960 2160 IPS EIP EEIP
Minimum breaking force/kN
12 58.9 90.7 100 111 91.6 106 116
14 80.2 124 137 151 124 143 158
16 105 161 179 197 159 185 204
18 133 204 226 249 202 233 257
19 148 227 252 278 226 259 285
20 164 252 279 308 250 287 316
22 198 305 338 372 302 348 383
24 236 363 402 443 358 412 453
25.4 264 407 450 496 399 460 506
26 276 426 472 520 418 481 529
28 321 494 547 603 483 555 610
28.6 335 515 571 629 503 578 636
31.8 414 637 706 778 617 711 782
32 419 645 715 787 625 720 792
34.9 498 767 850 937 743 854 943
35 501 772 855 942 747 859 948
36 530 817 904 997 789 906 999
38 591 910 1010 1110 876 1010 1110
38.1 594 915 1010 1120 880 1010 1110
40 654 1010 1120 1230 962 1100 1220
41.3 698 1080 1190 1310 1020 1170 1300
44 792 1220 1350 1490 1150 1330 1470
44.5 810 1250 1380 1520 1180 1360 1500
45 828 1280 1410 1560 1210 1390 1530
48 942 1450 1610 1770 1370 1580 1740
50.8 1060 1630 1800 1980 1530 1760 1930
51 1060 1640 1820 2000 1540 1770 1940
52 1110 1700 1890 2080 1600 1840 2020
54.0 1190 1840 2040 2240 1710 1970 2160
56 1280 1980 2190 2410 1830 2110 2320
57.2 1340 2060 2280 2520 1910 2200 2420
60 1470 2270 2510 2770 2100 2420 2660

Galvanized / Non-Galvanized Steel Wire Rope 6×31WS-IWRC Rasing Line 4

FAQ

1.Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.


2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.



4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

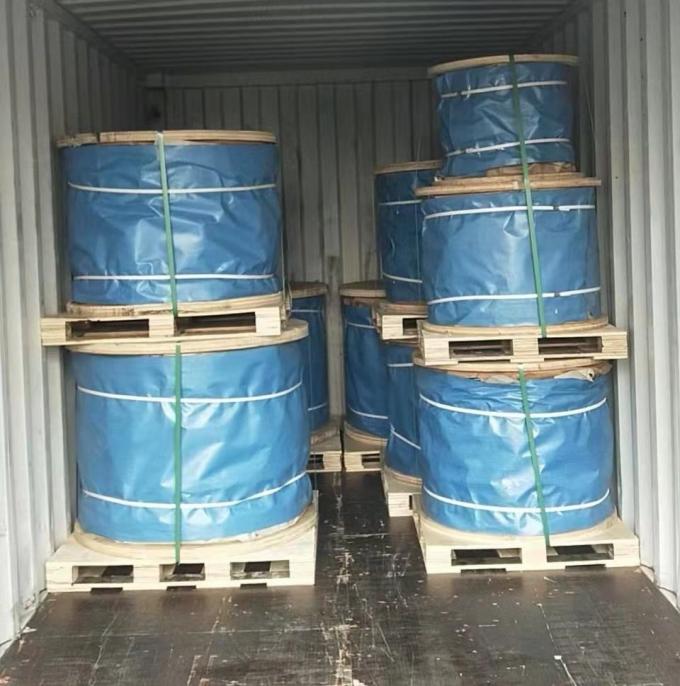

5: How is the packing?
