Product Details:
|
| Material: | Carbon Steel | Warranty: | 1 Year |
|---|---|---|---|
| Weight: | 300 KG | Condition: | New |
| Machinery Test Report: | Provided | Processing Type: | Casting |
| Color: | Green/Blue/Red | ||
| High Light: | ZP135 Drilling Rig Rotary Table,API Drilling Rig Rotary Table,ZP495 rotary table oil rig |
||

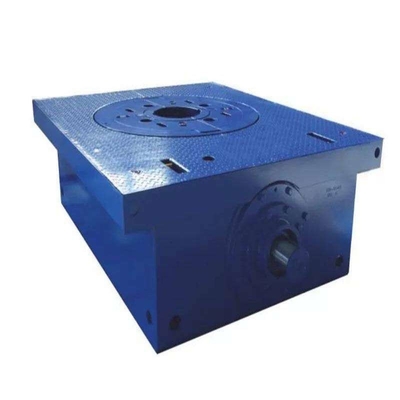

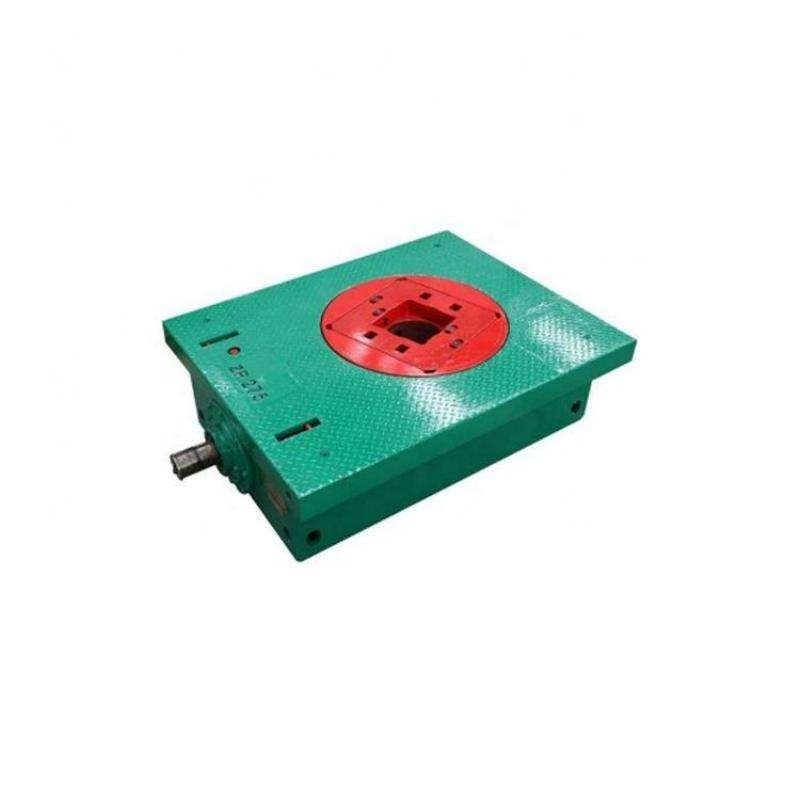

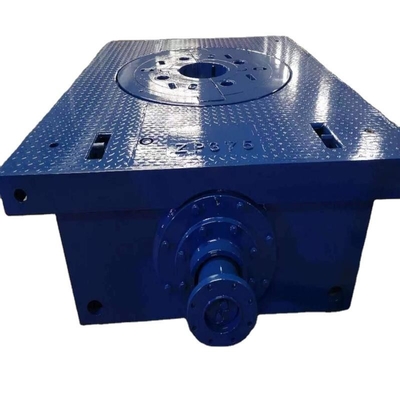

API Standard ZP135-ZP495 Drilling Rig Rotary Table For Drilling Rig Spare Parts With Master Bushing
Rotary Table is an important part of drilling rig. Its function is to slow down a pair of bevel gear pairs during drilling operation, so that the turntable can get a certain range of speed and torque output, and drive drilling tools for drilling operation.

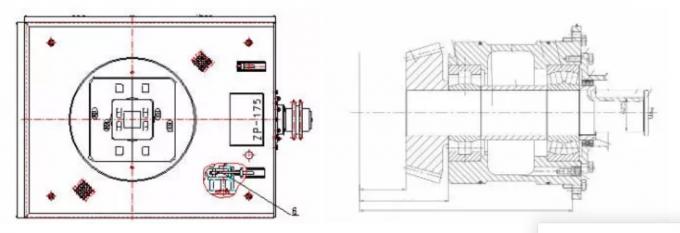

Rotary Table Structure Feature:
1. Meet the Api7k requirements.
2. Conform to the requirements of industry standard SY/T5531.
3.The rotary table adopts spiral bevel gear drive,have higher loading capacity and running smooth,long service life.
4.The casing is a casting and welding structure which has a better rigidity and high precision.
5.The gears and bearing adopt splash lubrication simple and reliable.
6.The input shaft is a cylinder structure ,convenient to servicing.
| Specification | Dia. of Opening mm (in) | Center Distance mm (in) | Max Static Hook Lead Rating KN | Max Working Torque N.m (ft lbs) | Maximum Speed r/min | Gear Ratio | Overrall Dimension (L*W*H) mm (in) | Weight KG (lbs) |
| ZP135 | 305 (12) | 1118 (44) | 1350 | 12000 (8855) | 300 | 3.5 | 1720*890*378 (67.7*35*14.86) | 1240 (2733) |
| ZP175 | 444.5 (17.5) | 1118 (44) | 1350 | 13729 (10132) | 300 | 3.58 | 1935*1280*585 (7 6.2*50.4*23) | 3888 (8572) |
| ZP205 | 520.5 ( 20.5) | 1353 (53.25) | 3150 | 22555 (16646) | 300 | 3.22 | 2292* 1475*673 (90*58*26.5) | 5530 (12191) |
| ZP275 | 698.5 (27.5) | 1353 (53.25) | 4500 | 27459 (20265) | 300 | 3.67 | 2391*1670*685 (94*65.7*27) | 6163 (13590) |
| ZP375 | 952. 5 (37.5) | 1353 (5 3.25) | 5850 | 32362 (23872) | 300 | 3.56 | 2468*1810*718 (97*71*28) | 8026 (17678) |
| ZP495 | 952. 5 (37.5) | 1651 (65 ) | 7250 | 36285 (26778) | 300 | 3.93 | 2940*2184*813 (115*85*31) | 11626 (25607) |
FAQ
1.Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
