Product Details:
|

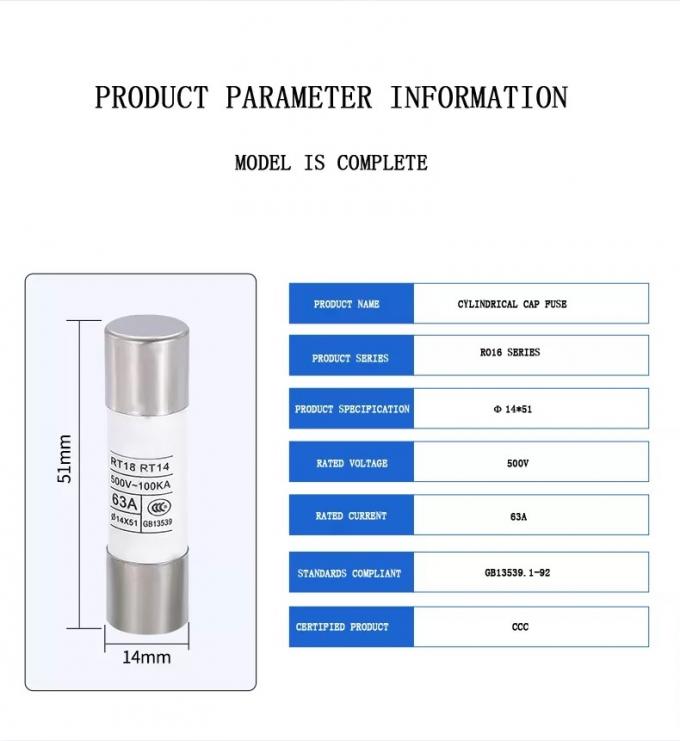

| Product Name: | Power-Filled Cartridge Cylindrical Fuse | Voltage: | 500V |
|---|---|---|---|
| Color: | White | Safety Standards: | IEC |
| Breaking Capacity: | High | Size: | 14*51 |
| Rated Current: | 63A | Usage: | Low Voltage |
| High Light: | 63A Drilling Rig Spare Parts,R016 Power Filled Cartridge Cylindrical Fuse,Drilling Rig Cylindrical Fuse |
||

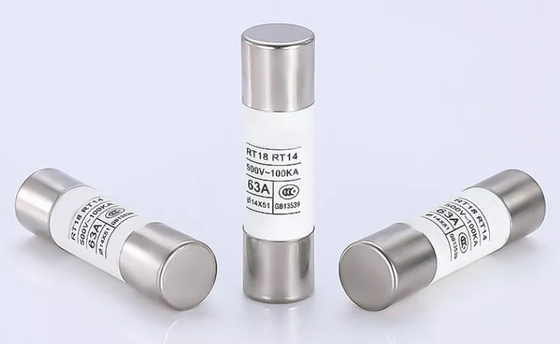

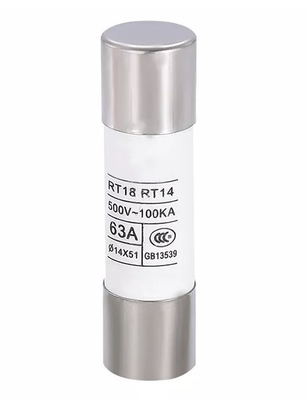

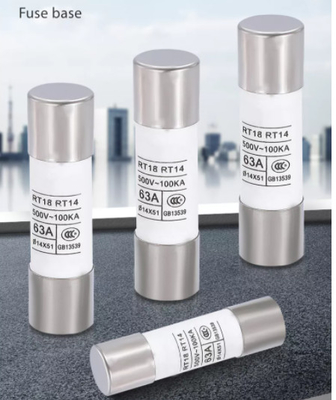

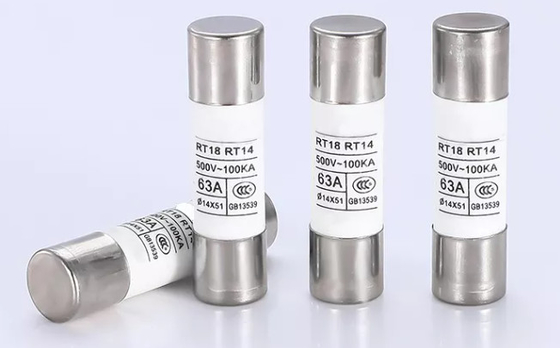

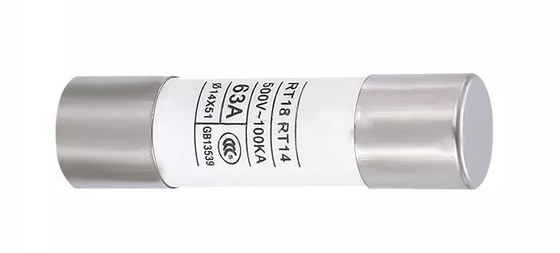

RT18 RT14 Core 63A Drilling Rig Spare Parts R016 Power-Filled Cartridge Cylindrical Fuse
Power-Filled Cartridge Cylindrical Fuse description of Drilling Rig Spare Parts
Application
This series fuse is suitable for AC 50Hz, rated voltage to 600V, rated current to 125A. It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for rotecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs/gtr) as well as the electric motor from short-circuit (aM). The rated breaking capacity is to 100KA. They conform to national standard GB13539 and international
electrical committee standard IEC60269.
Construction Feature

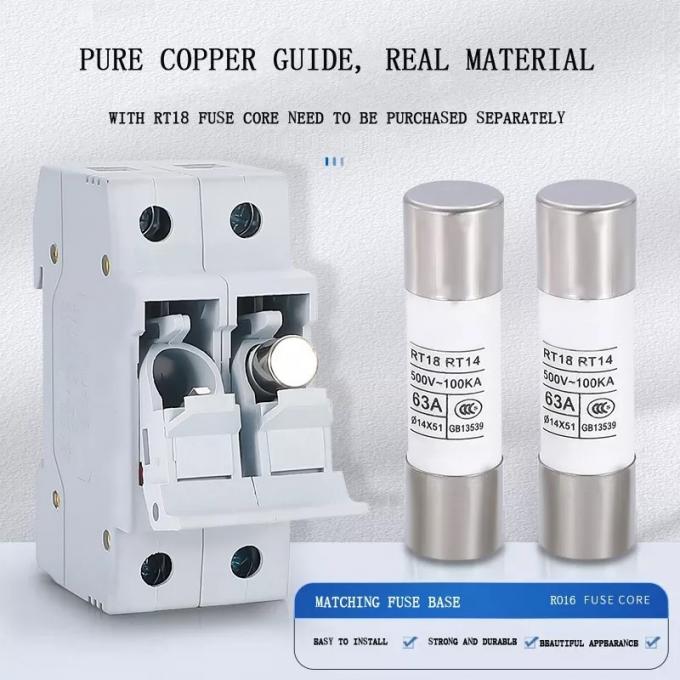

This series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.
| Fuse Model | Rated vltage (V) |
Rated current (A) |
Overall dimension (mm) | ||
| Common (gG) | Fast(aR) | Drawing No. | D X L | ||
| RO06 | RS06 | 250/380 | 1~32 | 1.1 | Φ 12.7 X 29 |
| RO07 | RS07 | 600 | 10~100 | 1.1 | Φ 30 X 57 |
| RO09 | RS09 | 500 | 2~63 | 1.1 | Φ 18 X 37 |
| RO10 | RS10 | 500 | 1.1 | Φ 18 X 50 | |
| RO11 AJT JKS LPJ |
RS11 ACL |
600 | 2~32 | 1.1 | Φ 21 X 58 |
| RO12 AJT JKS LPJ |
RS12 ACL |
600 | 35100 | 1.1 | Φ 27 X 60 |
| RO13 | RS13 | 500 | 2~40 | 1.1 | Φ 15 X 50 |
| RO14 aM1 RT19-16 gF1 |
RS14 | 500 | 0.5~20 | 1.1 | Φ 8.5 X 31.5 |
| RO14A | RS14A | 250 | 0.5~20 | 1.1 | Φ 8.5 X 23 |
| RO14B | RA14B | 380/500 | 0.5~20 | 1.1 | Φ 8.5 X 36 |
| RO15 RT14-20 RT18-32 RT19-25 aM2 gF2 |
RS15 KTK KLM |
380/500 | 0.5~32 | 1.1 | Φ 10.3 X 38 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
