Product Details:
|
| Product Name: | Sucker Rod Pump | Material: | Alloy Steel, AISI 4130,20CrMoA |
|---|---|---|---|
| Grade: | C,K,D,KD,HL,HY | Machine Type: | Pumping Unit |
| Joint Type: | T Type Joint | Size: | 5/8",3/4",7/8",1",1 1/8" |
| Length: | 25-30ft | Advantage: | Anti-Corrosion & Anti-Abrasion |
| High Light: | API 11AX Drilling Rig Spare Parts,Oilfield Sucker Rod Pump,Drilling Rig Sucker Rod Pump |
||

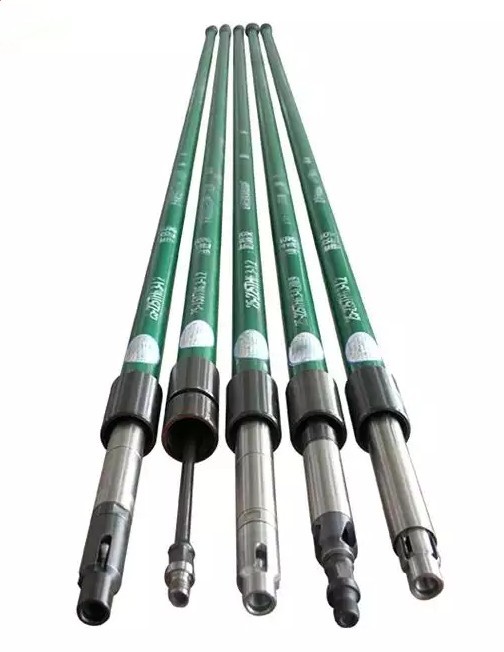

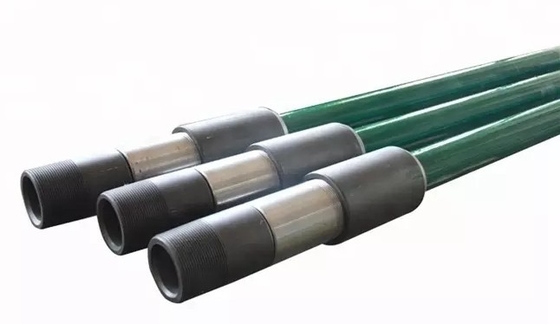

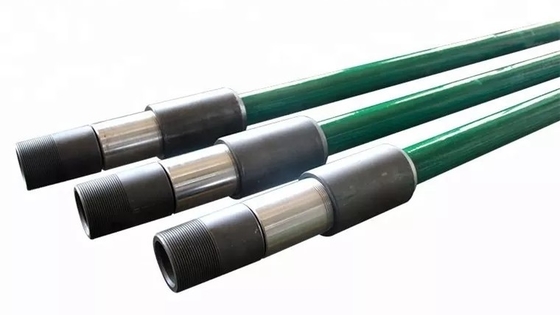

API 11AX Standard Drilling Rig Spare Parts Oilfield Sucker Rod Pump
Sucker Rod Pump description of Drilling Rig Spare Parts
Tubing Pump
The tubing pumps can be sunk into wells in sequence as follows: barrel is run down to the setting depth on the tubing and then plunger with the standing valve on the rod string. For tubing of same diameter, tubing pumps are always of larger capacity than insert pumps. The tubing pump is simple in structure and applicable for wells not too deep and of higher production rate. Tubing pumps are classified as THD pumps and THC or THM pumps. The standing valves of THC or THM pump can be hold and sealed by a mechanical or cup hold-down. Plunger together with standing valve can be lifted out integrally for normal pump check, with the tubing remain intact. This makes the tubing pumps suitable for wells usually with short pump check intervals.

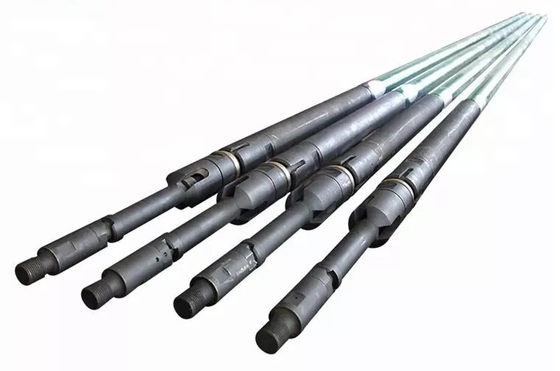

Insert Pump
The insert pump can be connected to sucker rod on the surface and then lowered into the wells integrally through the tubing. Pump checks are easy and without the need of pulling and running the tubing. This makes it especially suitable for deep well applications. Reduced running time and make-and-breaks can surely enhance tubing working life. Insert pumps are clarified as mechanical and cup hold-down pumps by hold-down types or as top hold-down, bottom hold-down and travelling barrel insert pumps by hold-down positions
Drilling Rig Spare Parts Sucker Rod Pump Datasheet

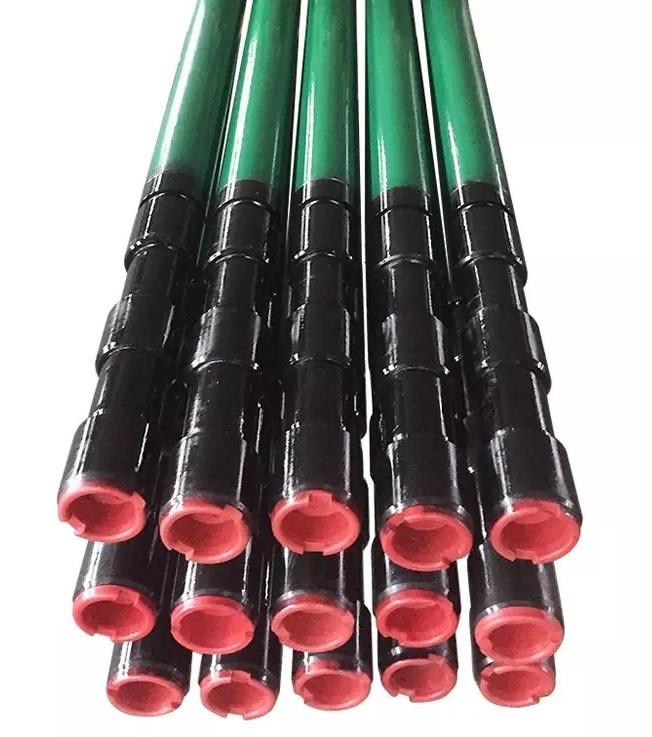

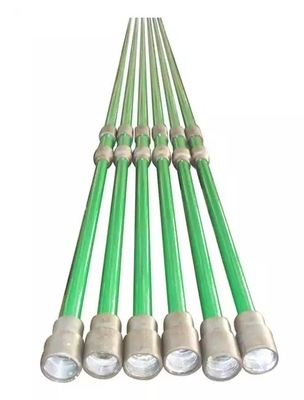

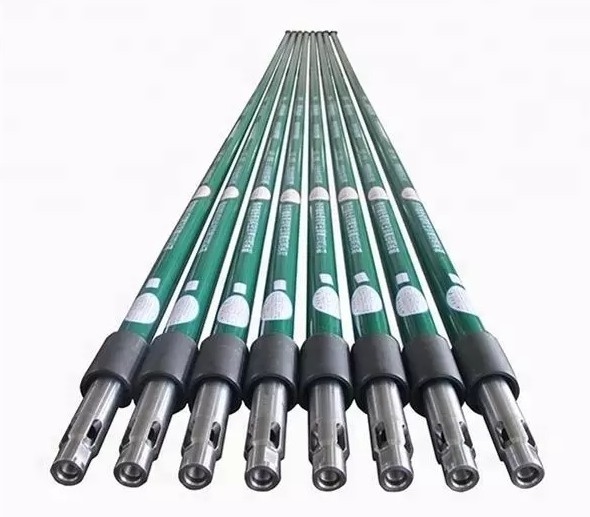

Sucker rod size
| SN | Normal size in(mm) | Dia. of coated rod (mm) | Wrench section width (mm) | Wrench section Length (mm) | OD of Male thread step (mm) | Nipple neck length of ascension(mm) |
| 1 | 5/8(16) | 19 | 27 | 28 | 37 | 127 |
| 2 | 3/4(19) | 22 | 29 | 28 | 43 | 127 |
| 3 | 7/8(22) | 25 | 29 | 28 | 45 | 127 |
| 4 | 1(25) | 28 | 39 | 28 | 55 | 127 |
| 5 | 1 1/8(29) | 32 | 43 | 37 | 60 | 127 |
Coated Layer Performance
| SN | Item | Performance index | Execution Standard |
| 1 | Density/ g/cm3 | 1.1 | GB/T1033 |
| 2 | Vicat Softening Temperature / ℃ | ≥180 | GB/T1633 |
| 3 | Tensile Yield Strength/ MPa | ≥28 | GB/T8804.3 |
| 4 | Elongation at Break Rate/ % | ≥150 | GB/T8804.3 |
| 5 | Shore Hardness/ HD | ≥80 | GB/T2411 |
| 6 | Mortar wear rate/ mg/h | ≤3.5 | Appendix |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
