Product Details:
|
| Product Name: | Oilfields Mud Pump Roller Chain | ISO Chain No.: | 24S-6 |
|---|---|---|---|
| Model: | RC-120-6 | Standard: | GB3638 |
| Pitch: | 38.1mm | Structure: | Roller Type |
| Material: | Alloy Steel | Function: | Transmission Chain |
| High Light: | Oilfield Drilling Roller Chain,Transmission Conveyor Roller Chain,Alloy Steel Roller Transmission Chains |
||

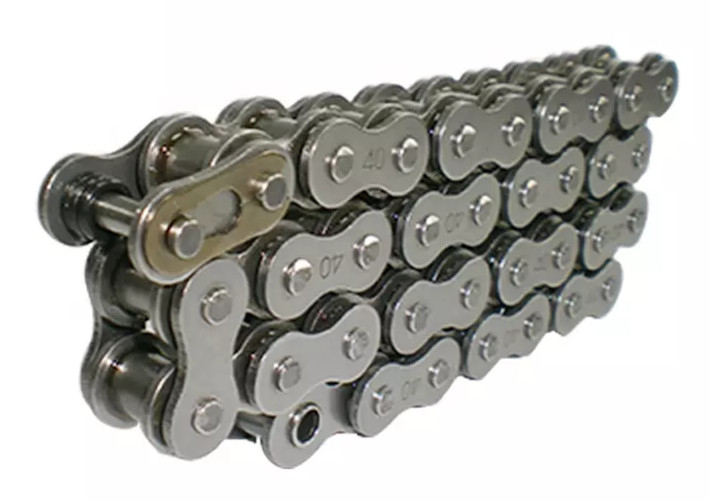

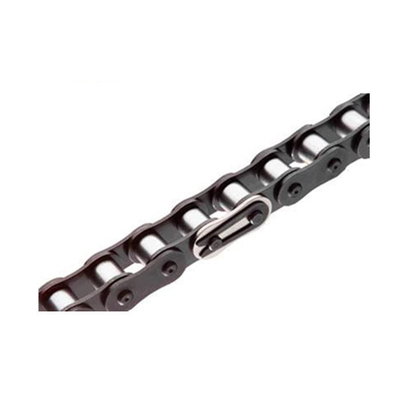

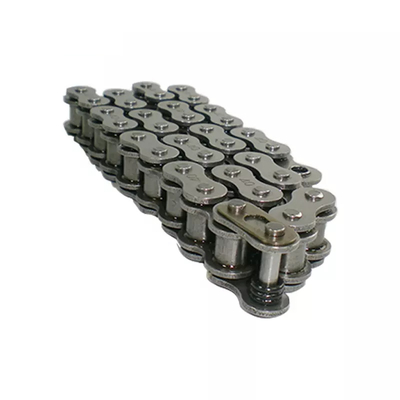

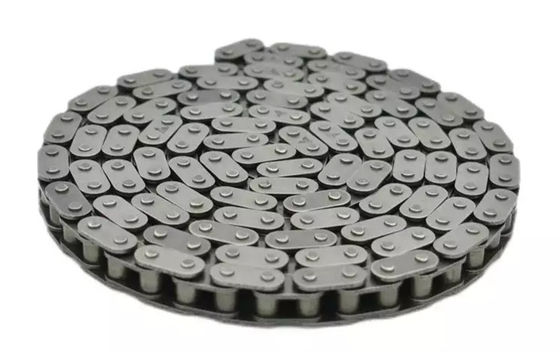

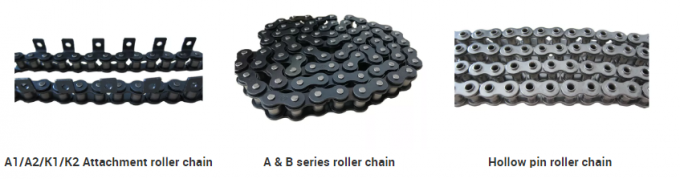

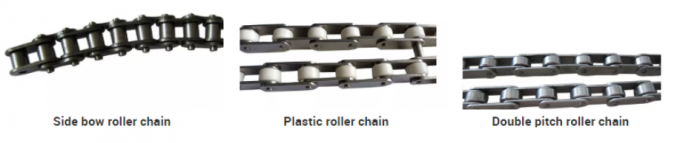

All kinds of Transmission Conveyor Roller Chain For Oilfield Drilling Rig Spare Parts
The transmission chains (oil chain, oil field roller chain) is designed for oil drilling and oil production of mud pump drive, engine group, power drive, camshaft, rotary vice axis, rotary table and other design and production. Oil chains can also be used for natural gas extraction, mining equipment, logging machines and ball mills. Safety and reliability are critical to the oil chain.
| ISO Chain No | ANSI Chiain No |
Chain No | Pitch | Roller Link Width | Roller Outer Diameter | Pin Outer Diameter |
Pin length |
Link Plate Height |
Link Plate Thickness |
Minimum Tensile Strength | Average Tensile Strength | Allowed load | Transverse Pitch |
|
| p | W min |
d1(max) | d2(max) | L max |
Lc max |
H max |
T | min | max | Pt | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | kgf | kgf | kgf | mm | |||
| 04C-2 | 25-2 | 25-2 | 6.35 | 3.10 | 3.30 | 2.31 | 14.5 | 15.20 | 6.02 | 0.75 | 720 | 860 | 110 | 6.40 |
| 06C-2 | 35-2 | 35-2 | 9.525 | 4.68 | 5.08 | 3.60 | 22.80 | 23.70 | 9.05 | 1.15 | 1620 | 2200 | 370 | 10.13 |
| 08A-2 | 40-2 | 40-2 | 12.70 | 7.85 | 7.92 | 3.98 | 32.30 | 36.20 | 12.07 | 1.50 | 2840 | 3900 | 630 | 14.38 |
| 10A-2 | 50-2 | 50-2 | 15.875 | 9.40 | 10.16 | 5.09 | 39.90 | 44.0 | 15.09 | 2.0 | 4450 | 6200 | 1100 | 18.11 |
| 12A-2 | 60-2 | 60-2 | 19.05 | 12.57 | 11.91 | 5.96 | 49.80 | 54.40 | 18.10 | 2.35 | 6400 | 8400 | 1530 | 22.78 |
| 16A-2 | 80-2 | 80-2 | 25.40 | 15.75 | 15.88 | 7.94 | 62.70 | 68.10 | 24.13 | 3.20 | 11360 | 15000 | 2550 | 29.29 |
| 20A-2 | 100-2 | 100-2 | 31.75 | 18.90 | 19.05 | 9.54 | 77.0 | 83.10 | 30.17 | 4.0 | 17760 | 24200 | 3900 | 35.76 |
| 24A-2 | 120-2 | 120-2 | 38.10 | 25.22 | 22.23 | 11.11 | 96.30 | 102.9 | 36.20 | 4.70 | 25540 | 32000 | 5250 | 45.44 |
| 28A-2 | 140-2 | 140-2 | 44.45 | 25.22 | 25.40 | 12.71 | 103.60 | 111.0 | 42.23 | 5.50 | 34760 | 42000 | 6970 | 48.87 |
| 32A-2 | 160-2 | 160-2 | 50.80 | 31.55 | 28.58 | 14.29 | 124.20 | 132.10 | 48.26 | 6.40 | 45600 | 60000 | 9150 | 58.55 |
| 40A-2 | 200-2 | 200-2 | 63.50 | 37.85 | 39.68 | 19.85 | 151.90 | 162.10 | 60.33 | 8.0 | 70920 | 92000 | 12400 | 71.55 |
| 48A-2 | 240-2 | 240-2 | 76.20 | 47.35 | 47.63 | 23.81 | 183.40 | 193.90 | 72.39 | 9.50 | 106220 | 135000 | 17150 | 87.83 |
Data sheet for RC-120-6
| China NO. |
GB Chiain No | Pitch | Roller | Inner width of | Pin | Plate | Plate | Array | Pin length | Tensile | Weight/m |
| ISO Chain No | Diameter | inner link | diameter | thickeness | height | Pitch | load | ||||
| p | d1(max) | b1(max) | d2(max) | h1 | h2 | pt | b2 | min | q | ||
| 80GA-1 | 16S-1 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 36.2 | 55.6 | 2.84 |
| 80GA-2 | 16S-2 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 65.5 | 111.2 | 5.54 |
| 80GA-3 | 16S-3 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 94.8 | 166.8 | 8.23 |
| 80GA-4 | 16S-4 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 124.1 | 222.4 | 10.93 |
| 80GA-5 | 16S-5 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 153.4 | 278 | 13.63 |
| 80GA-6 | 16S-6 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 182.6 | 333.6 | 16.32 |
| 80GA-8 | 16S-8 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 241.2 | 444.8 | 21.72 |
| 100GA-1 | 20S-1 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | - | 43.6 | 86.74 | 4.25 |
| 100GA-2 | 20S-2 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 79.3 | 173.48 | 8.31 |
| 100GA-3 | 20S-3 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 115.1 | 260.22 | 12.36 |
| 100GA-4 | 20S-4 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 150.8 | 346.96 | 16.41 |
| 100GA-5 | 20S-5 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 186 | 433.7 | 20.47 |
| 100GA-6 | 20S-6 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 222.4 | 520.44 | 24.52 |
| 100GA-8 | 20S-8 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 293.9 | 693.92 | 32.63 |
| 120GA-1 | 24S-1 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | - | 54.1 | 125.1 | 6.81 |
| 120GA-10 | 24S-10 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45 | 463.1 | 125.1 | 59.63 |
| 120GA-1 | 24S-2 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 99.6 | 250.2 | 12.12 |
| 120GA-3 | 24S-3 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 145.5 | 375.3 | 18.06 |
| 120GA-4 | 24S-4 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 190 | 500.4 | 23.99 |
| 120GA-5 | 24S-5 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 235.9 | 625.9 | 29.23 |
| 120GA-6 | 24S-6 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 281.3 | 750.6 | 35.87 |
| 120GA-7 | 24S-7 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 326.7 | 875 | 41.82 |
| 120GA-8 | 24S-8 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 372.2 | 1000.8 | 59.63 |
| 140GA-2 | 28S-1 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | - | 58.4 | 170.27 | 7.91 |
| 140GA-10 | 28S-10 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 498.2 | 1702.7 | 76.81 |
| 140GA-2 | 28S-2 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 107.2 | 340.54 | 15.6 |
| 140GA-3 | 28S-3 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 156.1 | 510.81 | 23.25 |
| 140GA-4 | 28S-4 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.7 | 1021.62 | 46.2 |
| 140GA-5 | 28S-5 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 253.9 | 851.35 | 38.55 |
| 140GA-6 | 28S-6 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.7 | 1021.62 | 46.2 |
| 140GA-8 | 28S-8 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 400.5 | 1362.16 | 61.5 |
| 160GA-1 | 32S-1 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | - | 69 | 222.4 | 10.47 |
| 160GA-2 | 32S-2 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 127.5 | 444.8 | 20.65 |
| 160GA-3 | 32S-3 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 186.1 | 667.2 | 30.82 |
| 160GA-4 | 32S-4 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 244.6 | 889.6 | 40.99 |
| 160GA-5 | 32S-5 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 303.2 | 111.2 | 51.6 |
| 160GA-6 | 32S-6 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 361.7 | 1334.4 | 61.33 |
| 160GA-8 | 32S-8 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 478.8 | 1779.2 | 81.68 |
| 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 180GA-2 | 36S-2 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 143.6 | 560.5 | 27.88 |
| 180GA-3 | 36S-3 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 209.4 | 840.7 | 41.62 |
| 180GA-4 | 36S-4 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 275.3 | 1121 | 55.36 |
| 200GA-1 | 40S-1 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | - | 84.5 | 347.5 | 17.35 |
| 240GA-2 | 40S-2 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 156 | 695 | 34.14 |
| 200GA-3 | 40S-3 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 227.6 | 1042.5 | 50.94 |
| 200GA-4 | 40S-4 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 299.1 | 1390 | 67.73 |
| 240GA-1 | 48S-1 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | - | 102.2 | 500.4 | 25.2 |
| 240GA-2 | 48S-2 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 190.1 | 1000.8 | 49.81 |
| 240GA-3 | 48S-3 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 277.9 | 1501.2 | 74.43 |
| 240GA-4 | 48S-4 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 365.7 | 2001.6 | 99.04 |
Material: 40Mn, 45Mn,40Cr, SS304, SS316, SS201.
