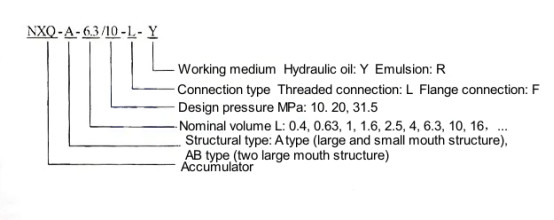

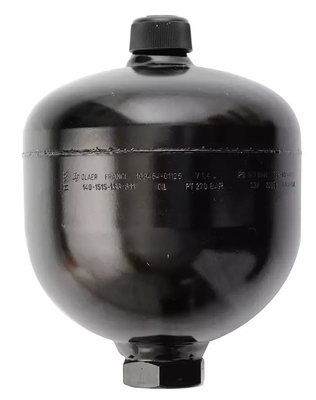

Hydraulic Diaphragm Drilling Rig Spare Parts Accumulator NXQ-AB-40 / 31.5-L-Y

Hydraulic Diaphragm Drilling Rig Spare Parts NXQ-AB-40/31.5-L-Y Accumulator

Accumulator description of Drilling Rig Spare Parts

The accumulator is an essential and important component in the hydraulic transmission system. It has the functions of storing energy, stabilizing pressure, absorbing hydraulic shock, eliminating hydraulic pulsation, and reducing power consumption.

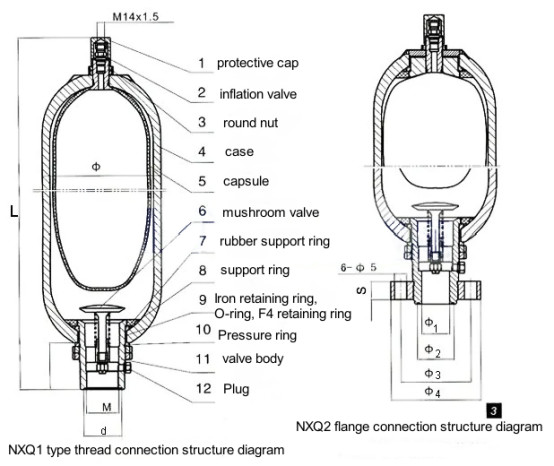

NXQ- accumulator cavity is divided into two parts by the bladder: the bladder is filled with nitrogen, and the bladder is filled with hydraulic oil. When the hydraulic pump presses the hydraulic oil into the animal energy device, the bladder is deformed under pressure, the volume of the gas decreases with the increase of the pressure, and the hydraulic oil is gradually stored. If the hydraulic system needs hydraulic oil, the energy device will discharge the hydraulic oil to compensate the energy of the system.

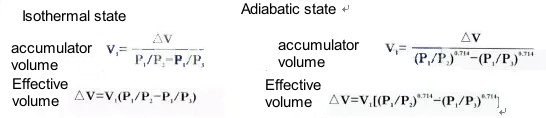

In the formula:

P1=accumulator charging pressure

P2=minimum working pressure of the system

P3=maximum working pressure of the system

Inflation pressure
Shock absorbing - the normal pressure of the energy generator set point or a slightly higher pressure is used as the inflation pressure;
pulsation absorption - 60% of the average pressure of the pulsation is used as the inflation pressure;
energy storage - the inflation pressure should be lower than the system minimum 90% of the working pressure and 25% higher than the maximum working pressure.

Capacity selection:
When the liquid is flushed or drained slowly by the animal energy device, it is enough to allow the nitrogen to fully exchange heat with the surrounding environment when it is pressurized or depressurized, so that the working temperature remains constant. This is an isothermal change. On the contrary, when The animal energy device is filled and discharged quickly, so that the nitrogen cannot fully exchange heat with the surrounding environment when it is pressurized or depressurized, which is an adiabatic change.

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5:How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6: What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.

Topland main products:
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
