Product Details:
|
| Product Name: | High Pressure Ball Valve | Applicable Medium: | Hydraulic Oil, Water, Glycol And Mixture |
|---|---|---|---|
| Pressure Rating: | 210, 420bar | Nominal Diameter: | 13, 20...mm |
| Seal At The Ball: | 2-POM, 4-PTFE | Valve Body: | Carbon Steel |
| Flange Material: | Carbon Steel | Nominal Diamete: | DN 15~ 50mm |
| Working Temperature: | T<100'C | Nominal Pressure: | RH21.0MPa，LJ 31.5MPa |
| High Light: | Flange Hydraulic Manifold Control Valve,50mm Manifold High Pressure Ball Valve,420bar Stainless Steel Manifold Control Valve |
||

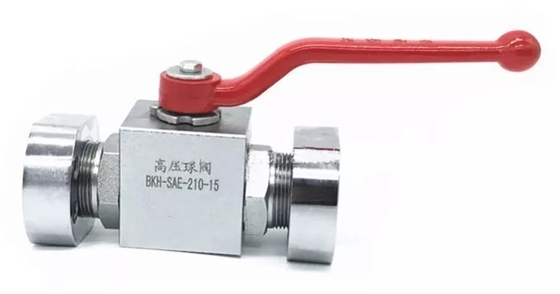

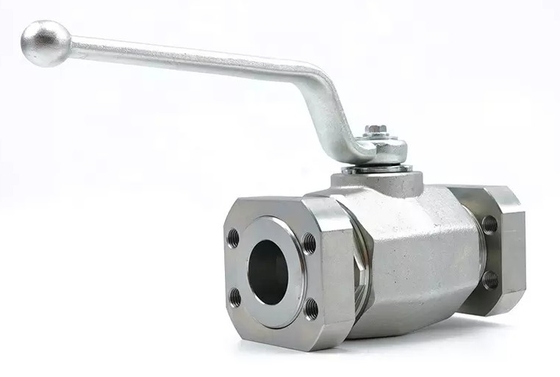

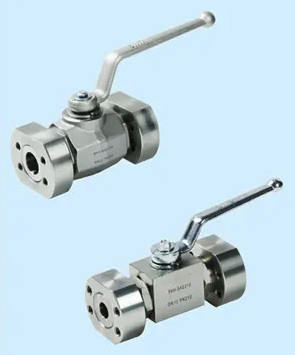

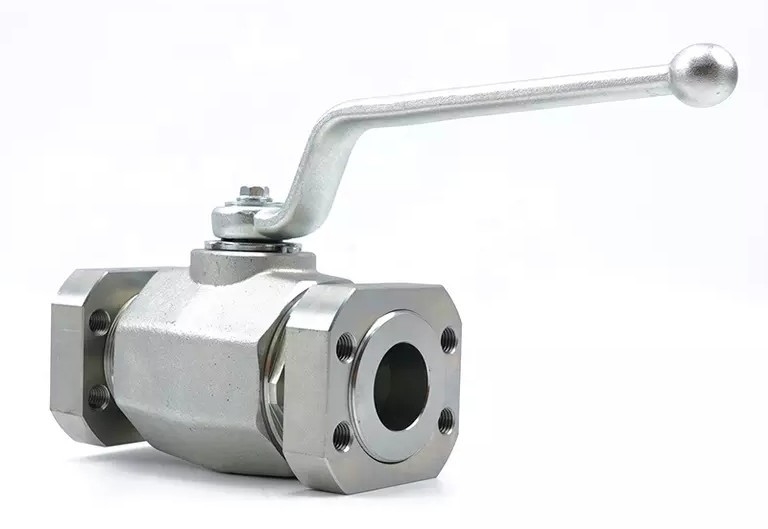

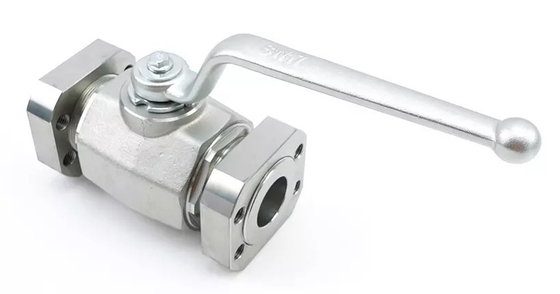

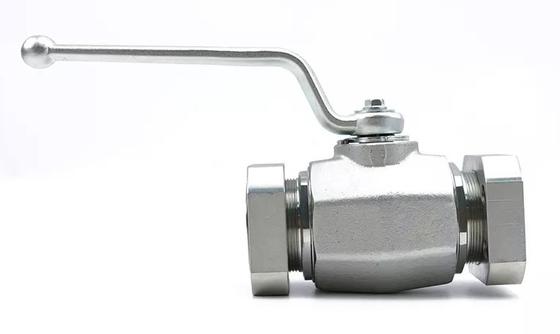

Flange Hydraulic Valve Manifold Control Valve BKH-SAE Stainless Steel High Pressure Ball Valve
High Pressure Ball Valve Description of Manifold Control Valve:
This valve is suitable for the opening and closing of various pipelines in hydraulic systems and chemical systems. According to the form of installation, SAEJ518C-3000PSI and 6000PSI butt joint flanges are installed in the middle of the pipeline. This kind of ball valve should use SAE Standard flange connection, there are two kinds of working pressure of this kind of flanged ball valve that can be accompanied with the ball valve: 21.0MPa and 31.5MPa. According to the installation and maintenance, it is quick and convenient. It can replace imported products and be widely used in hydraulic integrated systems.
| 210bar (3000psi) | ||||||||||||||||

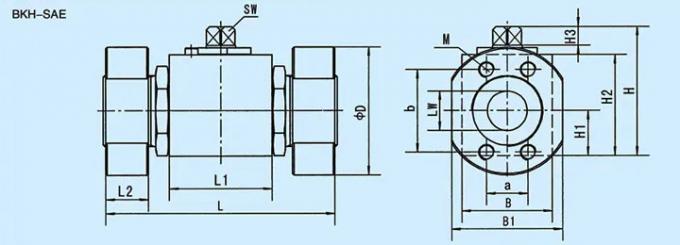

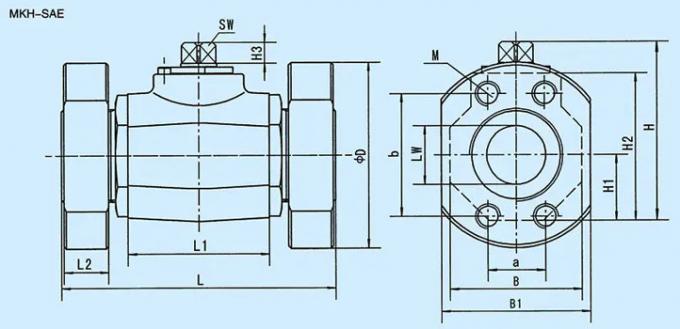

| Model | PN | LW | L | L1 | L2 | D | B | B1 | H | H1 | H2 | H3 | a | b | M | SW |
| BKH-SAE210-13 | 210 | 13 | 120 | 48 | 16 | 57 | 35 | 46 | 52.5 | 17 | 40 | 8 | 17.5 | 38.1 | M8 | 9 |
| BKH-SAE210-20 | 210 | 20 | 136 | 60 | 18 | 70 | 48 | 52 | 75 | 24 | 57 | 12 | 22.2 | 47.6 | M10 | 14 |
| BKH-SAE210-25 | 210 | 25 | 148 | 65 | 19 | 77 | 57 | 62 | 82 | 28.5 | 64 | 12 | 26.2 | 52.4 | M10 | 14 |
| 420bar (6000psi) | ||||||||||||||||
| Model | PN | LW | L | L1 | L2 | D | B | B1 | H | H1 | H2 | H3 | a | b | M | SW |
| BKH-SAE210-13 | 420 | 13 | 120 | 48 | 22 | 61 | 35 | 48 | 52.5 | 17 | 40 | 8 | 18.2 | 40.5 | M8 | 9 |
| BKH-SAE210-20 | 315 | 20 | 136 | 60 | 23 | 76 | 48 | 60 | 75 | 24 | 57 | 12 | 23.8 | 50.8 | M10 | 14 |
| BKH-SAE210-25 | 315 | 25 | 148 | 65 | 27 | 86 | 57 | 70 | 82 | 28.5 | 64 | 12 | 27.8 | 57.2 | M12 | 14 |
| 210bar (3000psi) | ||||||||||||||||
| Model | PN | LW | L | L1 | L2 | D | B | B1 | H | H1 | H2 | H3 | a | b | M | SW |
| MKH-SAE210-21-M10 | 210 | 30 | 172 | 84 | 21 | 87 | 82 | 74 | 108 | 41 | 87.5 | 14 | 30.2 | 58.7 | M10 | 17 |
| MKH-SAE210-21-M12 | 210 | 30 | 172 | 84 | 21 | 87 | 82 | 74 | 108 | 41 | 87.5 | 14 | 30.2 | 58.7 | M12 | 17 |
| MKH-SAE210-40 | 210 | 38 | 177 | 91 | 24 | 103 | 93 | 96 | 119.5 | 46.5 | 99 | 14 | 35.7 | 69.8 | M12 | 17 |
| MKH-SAE210-50 | 210 | 48 | 196 | 100 | 25 | 117 | 110 | 98 | 135.5 | 55 | 115 | 14 | 42.9 | 77.8 | M12 | 17 |
| MKH-SAE210-50/65 | 210 | 48 | 196 | 100 | 25 | 128 | 110 | 114 | 135.5 | 55 | 115 | 14 | 50.8 | 88.9 | M12 | 17 |
| 420bar (6000psi) | ||||||||||||||||
| Model | PN | LW | L | L1 | L2 | D | B | B1 | H | H1 | H2 | H3 | a | b | M | SW |
| MKH-SAE420-32 | 350 | 30 | 172 | 84 | 32 | 103 | 82 | 78 | 108 | 41 | 87.5 | 14 | 31.8 | 66.7 | M14 | 17 |
| MKH-SAE420-40 | 350 | 38 | 177 | 91 | 32 | 120 | 93 | 96 | 119.5 | 46.5 | 99 | 14 | 36.5 | 79.4 | M16 | 17 |
| MKH-SAE420-50 | 350 | 48 | 196 | 100 | 34 | 145 | 110 | 114 | 135.5 | 55 | 115 | 14 | 44.5 | 96.8 | M20 | 17 |
