Product Details:
|
| Type: | Rotary Drilling Swivel | Material: | High Manganese Steel |
|---|---|---|---|
| Max Load: | 675 KN | Central Pipe Drift Dia.: | 50 Mm |
| Max Working Pressure: | 15 Mpa | Color: | Yellow / Red |
| Size: | 90~675 | Use: | Oil Well Drilling |
| High Light: | API Oilfield Drilling Rig Spare Parts,SL450 Drilling Swivels,4500kn Oilfield Drilling Swivels |
||

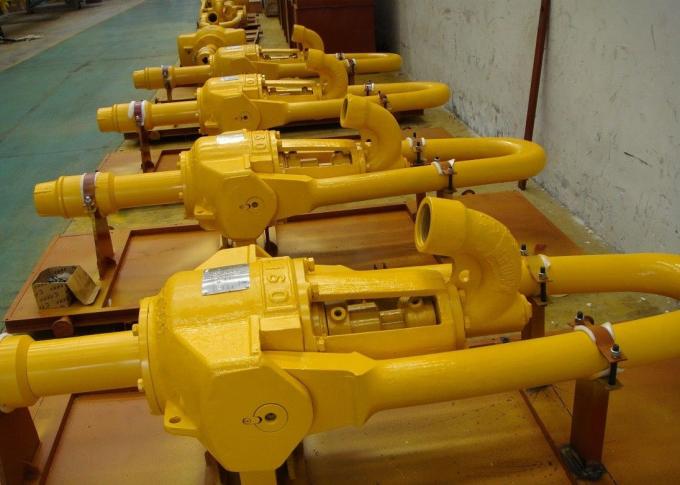

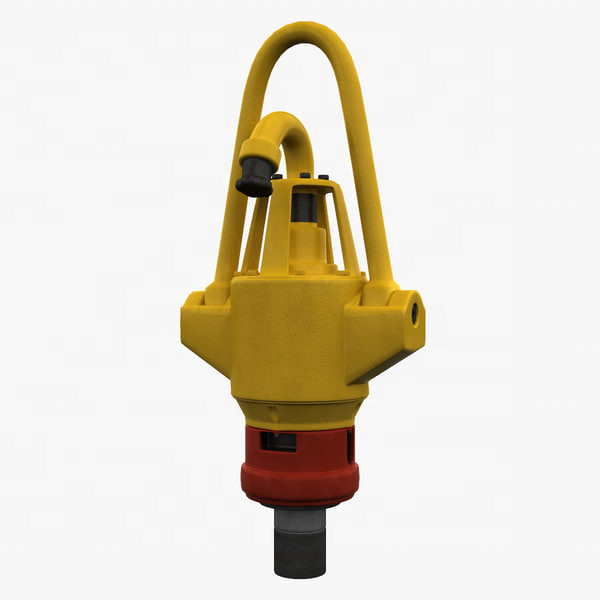

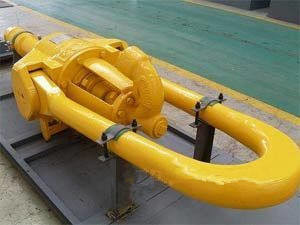

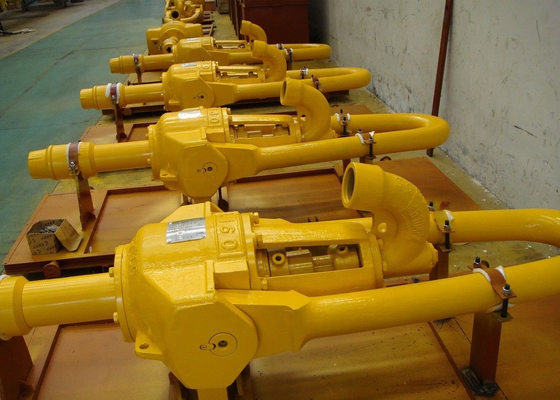

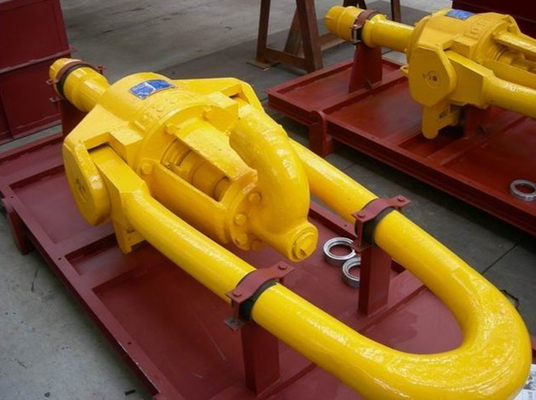

API Oilfield Drilling Rig Spare Parts 4500kn SL450 Drilling Swivels

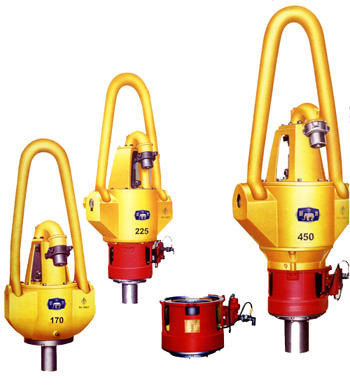

Swivels Type SL are necessary hoisting tools for hanging drill pipes and jointing hoses in well repairing. There are type SL 35,SL60, SL 90 and SL135,SL225,SL450. They are designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment. The swivels are necessary hoisting tools for hanging drill pipe and jointing hose in well repairing
Swivel Features of Drilling Rig Spare Parts
* With standard bails and double pin alloy steel sub.
* The wash pipe and the packing assembly are cartridge type and can be replaced on the floor without disconnecting the rotary hose and/or gooseneck.
* The gooseneck is provided with an outlet for wire line logging.
* With standard gooseneck joints. Threads are in compliance with API 5B.
* The swivels conform to API 8A/8C.
Drilling Hook's Datasheet of Drilling Rig Spare Parts
| Model | SL70 | SL110 | SL135 | SL160 | SL225 | XSL225 | XSL450 | XSL675 |
| Max load (kN) | 675 | 1125 | 1350 | 1600 | 2250 | 2250 | 4500 | 6750 |
| Main axle rated (kN) | 300 | 850 | 1000 | 1200 | 1500 | 1500 | 2500 | 4500 |
| Angle between center line and vertical line of gooseneck pipe | 15° | 15° | 15° | 15° | 15° | 15° | 15° | 15° |
| Goose neck pipe thread | 2 3/8" TBG | 4 1/2" TBG | 4 1/2" TBG | 4 1/2" TBG | 4 1/2" TBG | 4 1/2" TBG | 4" NPT, 4" union | 4" NPT, 4" union |
| Lower thread of joint | 2 7/8" UP DP | 4 1/2" REG LH | 6 5/8" REG LH | 6 5/8" REG LH | 6 5/8" REG LH | 6 5/8" REG LH | 6 5/8" REG LH | 6 5/8" REG LH |
| Max working pressure (MPa) | 15 | 21, 35 | 35 | 35 | 35 | 35 | 35 | 52 |
| Central pipe drift dia.mm | 50 | 64 | 76 | 76 | 76 | 76 | 76 | 102 |
