Product Details:
|
| Product Name: | ZP175 Rotary Table | Condition: | New |
|---|---|---|---|
| Weight: | 5360kg | Distance Inner Row: | 53-1/4 In |
| Diameter: | 37-1/2 In | Material: | Tungsten Carbide & Steel |
| Advantage: | High Performance | Application: | Welling Drilling |
| High Light: | API 7K Drilling Rig Spare Parts,ZP175 Drilling Rig Rotary Table,Welling Drilling Oilfield Rotary Table |
||

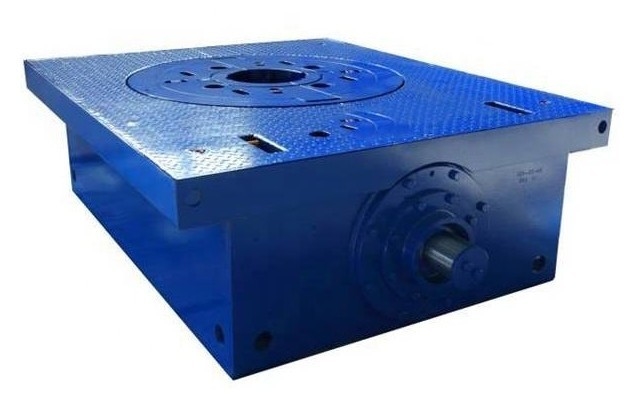

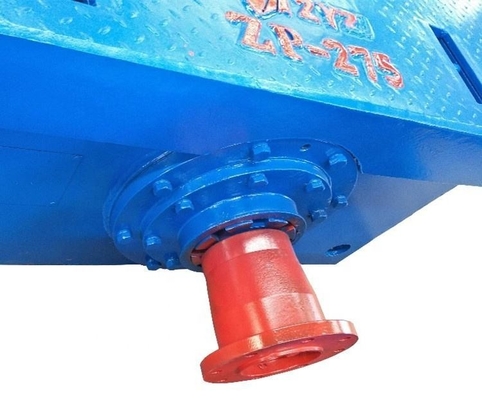

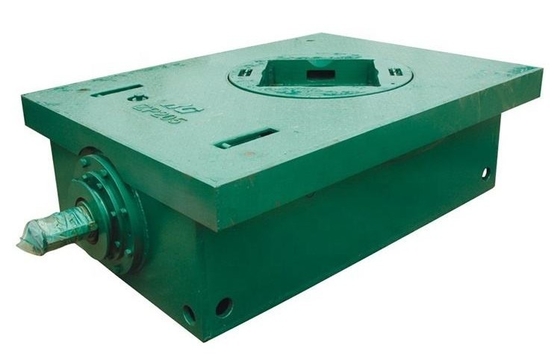

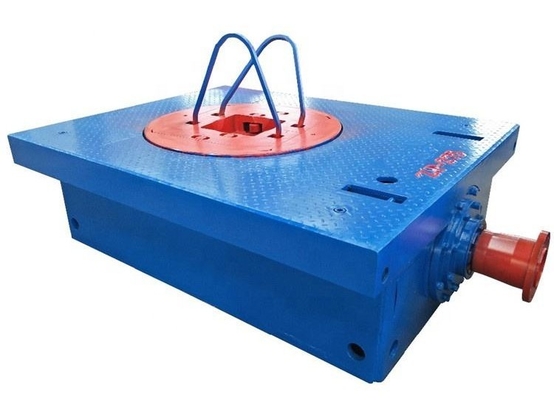

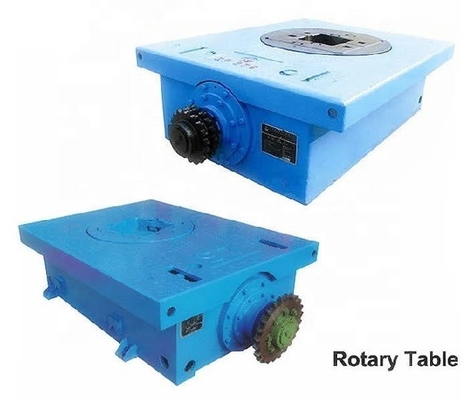

API 7K Standard Drilling Rig Spare Parts Oilfield ZP175 Rotary Table
Rotary Table Description of Drilling Rig Spare Parts
ZP Series of Rotary Tables, are widely used to rotate drill equipment and hold the weight of pipes in well.
Features:
• API Spec7K/ API monogram
• Different designs are available.
• The pinion and gear are made of alloy steel.
• The extension and its keyway of the pinion shaft all meet API Spec.
• The master bushing is made of steel casting with API Standard square Kelly.
• Mechanical and electrical independent table drives can be furnished.
ZP series Manual Rotary Table for drilling rig with follows features:
1. API Spec 7K standard;
2. Alloy steel gear and pinion;
3. Split type main bushing is a steel casting ;
4. Kelly drive or pin drive option:
5. Pin drive may be available in roller type bushing of API standard kelly or hexagonal kelly;
6. Either long or short slips are usable;
7. Matched with API standard casing bushing and special lift fitting;
8. Sufficient lubrication and reliable sealing
| Model | ZP50 | ZP135 | ZP175 | ZP205 | ZP275 |
| Max.torque(kN.m) | 8 | 12 | 14 | 22.5 | 27.5 |
| Opening diamete (mm) | 180 | 292 | 444.5 | 520.7 | 698.5 |
| Max. load (kN) | 600 | 1350 | 2250 | 3150 | 4500 |
| Speed(r/min) | 300 | 300 | 300 | 300 | 300 |
| Size(mm) | 1920x570x540 | 1705x1070x580 | 1902x1280x575 | 2309x1475x668 | 2417x1680x686 |
| Weight(kg) | 531 | 1364 | 3737 | 4177 | 6773 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
Topland is the supplier of ECDC, PDL, ADES. We have been engaged in manufacturing and supplying oilfield equipment and rig component for more than 12 years. Should you have any items interested, just send us inquiry at anytime. We will offer you the best price with excellent quality.
