Product Details:
|
| Product Name: | Skid Mounted Choke Manifold | Design Pressure: | 35Mpa |
|---|---|---|---|
| Dimension: | 1802*1339*680mm | Material Level: | EE |
| Working Temperature: | PU(-29℃~121℃) | Warranty: | 12 Months |
| Condition: | New | Application: | Oil Well Control |
| High Light: | API Skid Mounted Choke Manifold,Oil Well Control Choke Manifold,35Mpa Choke Manifold Drilling Rig |
||
Oil Well Control Drilling Rig Spare Parts API Skid Mounted Choke Manifold
Skid Mounted Choke Manifold Description:

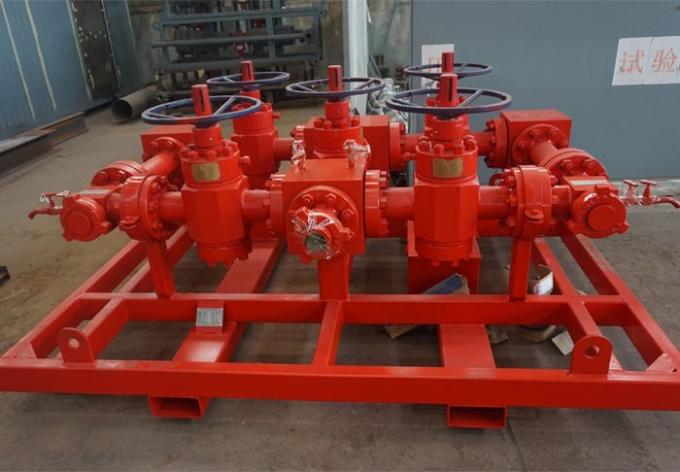

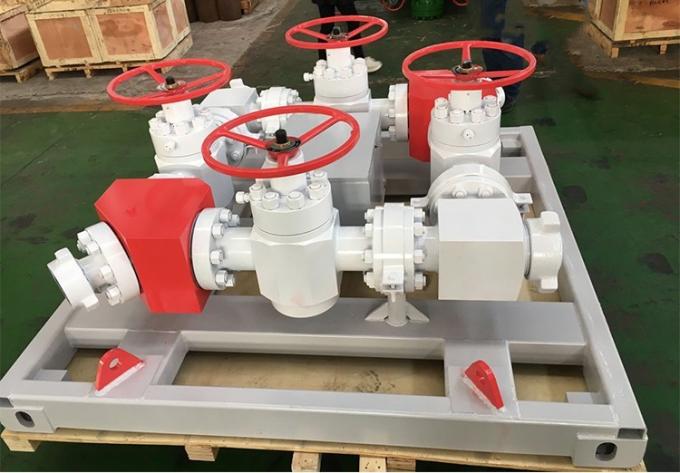

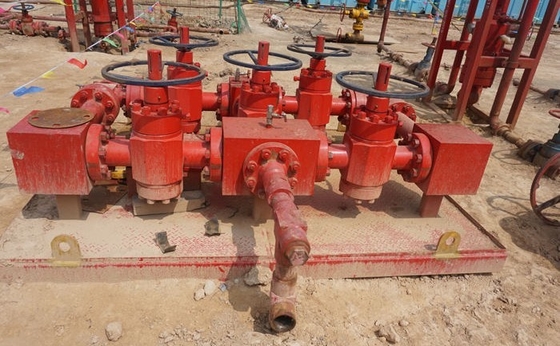

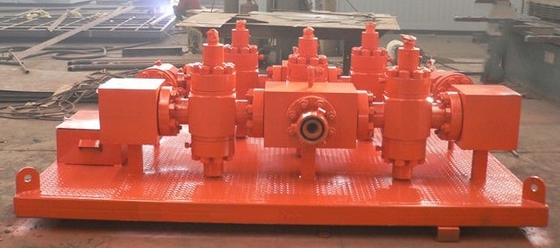

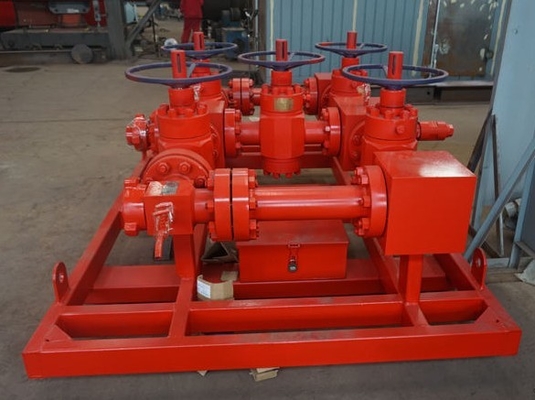

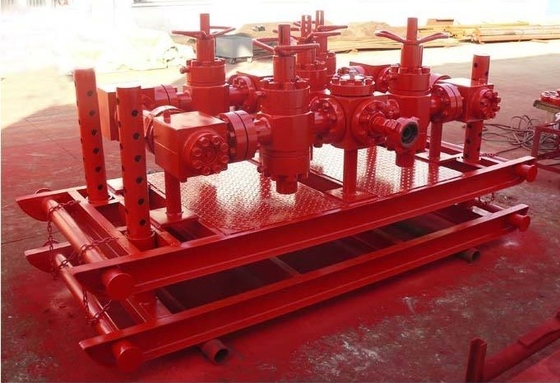

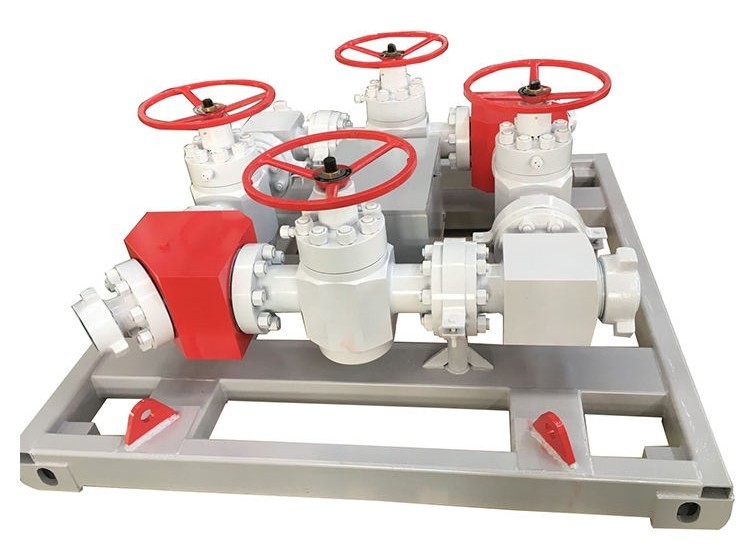

Oil Well Control API skid mounted choke manifold / oilfield manifold / drilling rig choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well. It can be equipped with hydraulic control panel for remote control.
| Pressure | 35MPa(5000psi) | 70MPa(10000psi) | 105MPa(15000psi) |
| Color | Blue | Yellow | Red |
| Model | JG/S52-35 | JG/S78-70 | JG/S78-105 |
| Design Pressure | 35MPa | 70MPa | 105MPa |
| Weight | 2530kg(5578lb) | 3580kg(7892.5lb) | 4630kg(10260lb) |
| Dimension(L×W×H) | 1802×1339×680mm | 2516×1824×799mm | 3270×2371×1038.7mm |
| Material Level | EE | EE | EE |
| Product specification level | PRL3 | PRL3 | PRL3 |
| Working Temperature | PU(-29℃~121℃) | PU(-29℃~121℃) | PU(-29℃~121℃) |
| Product performance level | PR1 | PR1 | PR1 |
| Nozzle | Fixed and adjustable nozzle | Fixed and adjustable nozzle | Fixed and adjustable nozzle |
| Characteristics | Five gate design | Five gate design | Five gate design |
| work medium | Mud,oil and drilling fluid | Mud,oil and drilling fluid | Mud,oil and drilling fluid |
| Connection type | Flange | Flange | Flange |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
