Product Details:
|
| Product Name: | Flexible Expansion Joint | Nominal Size: | DN32 - DN3000mm |
|---|---|---|---|
| Overall Length: | From 95 To 500mm | Working Pressure: | PN10/PN16/PN25 |
| Flange Material: | Carbon Steel / SS304 / SS316 | Standard Of Flange: | DIN/ADSI/JIS/BS |
| Rubber Joint Model: | DN25----DN3000 | Feature: | Elongation/compression/reduction Vibration |
| Technical: | Forged | Condition: | New |
| Temperature: | -20 Degrees Celsius To 150 Degrees Celsius | ||
| High Light: | Double Flanged Rubber Compensator,Rubber Soft Flexible Expansion Joint,Drilling Rig Rubber Compensator |
||

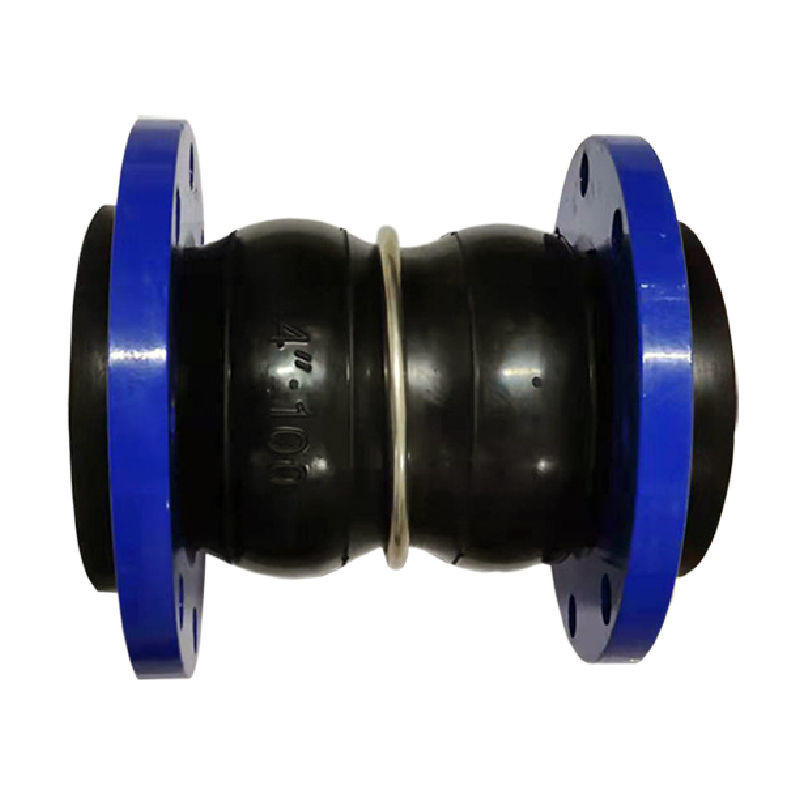

Double Flanged Rubber Compensator Soft Expansion Joint
Rubber soft joints, also known as flexible single-ball rubber joints, rubber flexible joints, soft joints, shock absorbers, pipe shock absorbers, shock absorber throats, etc., is a high Flexible, highly airtight, medium resistant and weatherproof pipe joints.
| Nominal diameter | Length | Axial displacement mm | Horizontal displacement | Angle of deflection | ||
| mm | Inch | (mm) | extension | compress | a1+a2 | |
| 25 | 1 | 175 | 30 | 50 | 45 | 40° |
| 32 | 11/4 | 175 | 30 | 50 | 45 | 40° |
| 40 | 11/2 | 175 | 30 | 50 | 45 | 40° |
| 50 | 2 | 175 | 30 | 50 | 45 | 40° |
| 65 | 21/2 | 175 | 30 | 50 | 45 | 40° |
| 80 | 3 | 175 | 30 | 50 | 45 | 40° |
| 100 | 4 | 225 | 35 | 50 | 40 | 35° |
| 125 | 5 | 225 | 35 | 50 | 40 | 35° |
| 150 | 6 | 225 | 35 | 50 | 40 | 35° |
| 200 | 8 | 325 | 35 | 60 | 35 | 30° |
| 250 | 10 | 325 | 35 | 60 | 35 | 30° |
| 300 | 12 | 325 | 35 | 60 | 35 | 30° |
| 350 | 14 | 350/330 | 35 | 60 | 30 | 25° |
| 400 | 16 | 350/330 | 35 | 60 | 30 | 25° |
| 450 | 18 | 350/330 | 35 | 60 | 30 | 25° |
| 500 | 20 | 350/330 | 35 | 60 | 30 | 25° |
Application:
Due to favourable integrated performance, they can be widely used in chemical industry, construction, water supply, drainage, oil industry, light and heavy industry, refrigeration station, water heating system, fire fighting system, electric power system, etc.
