Product Details:
|
| Warranty:: | 1 Year | Weight (KG):: | 35 |
|---|---|---|---|
| Processing Type: | Casting | Product Number:: | 4.1/8"-28" |
| Color:: | Blue/Red/Black | Material:: | Steel |
| High Light: | Casting Steel Master Bushings Accessories,Oilfield Bit Breaker Adapter Plate,Drilling Bit Breaker Adapter Plate |
||
Oilfield Master Bushings Accessories Bit Breaker Adapter Plate

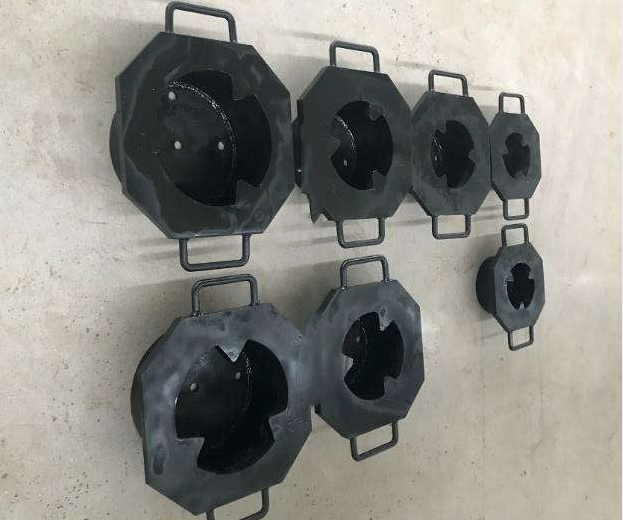

Topland can provide master bushing and insert bowls sizing from 17 1/2 to 49 1/2 inch. They are cast with high-quality alloy steel and the sizes conform to API Spec 7K specification for drilling and well servicing equipment. There are two types, pin drive and square drive. API standard rotary slips, casing slips and roller kelly bushing can be contained in them.
Master Bushing Accessories

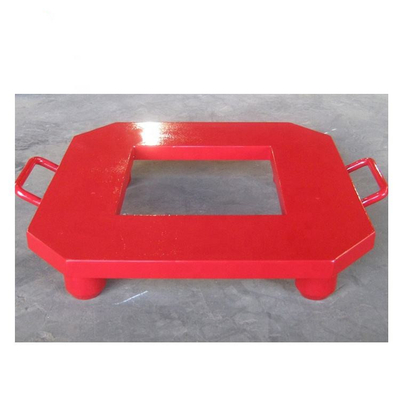

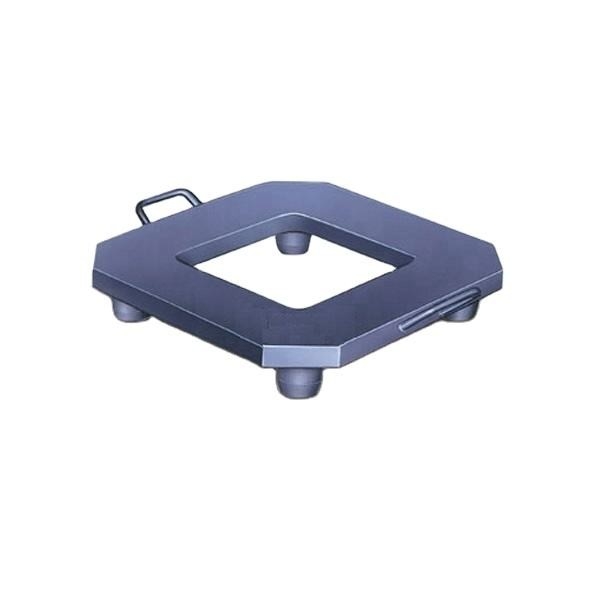

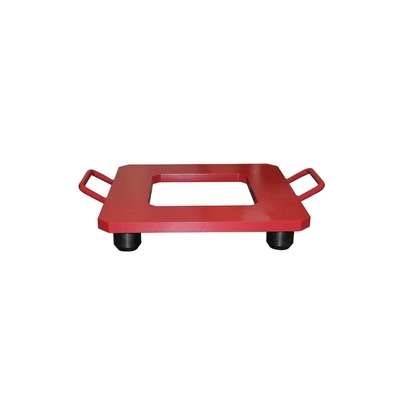

Bit Breaker Adapter Plates are located in the Master Bushing
Drive Pin holes and provide a 13 9/16 inch square to accommodate
bit Breakers. They are used for MPCH, MSPC, MDSP and MSP. P/N:1816 used for 23 -49 1/2 inch master bushing: P/N 1815 use for 17 1/2-21 inch master bushing.
Lifting sling for removing and installing bowls
with 2 hooks P/N 1021 for removing and installing bowls.
with 4 hooks P/N 6699 forremoving and installing bushing.
Bit Breakers are mostly used for screwing standard 3-cone bit.
| Main Technical Specification: | |||
| Model | Rotary table size(in) | Insert bowl | Tubulars OD(in) |
| MSS(Solid) | 17 1/2—23 | Insert bowl 1011 | 2 3/8-7 5/8 |
| Extended insert bowl 1024 | 2 3/8-8 5/8 | ||
| 27 1/2 | Insert bowl 1022 | 2 3/8-7 5/8 | |
| Extended insert bowl 1025 | 2 3/8-8 5/8 | ||
| Insert bowl 1026 | 9 5/8-10 3/4 | ||
| Insert bowl 2002 | 11 3/4-13 3/8 | ||
| MSS(Split) | 17 1/2—27 1/2 | — | 2 3/8-7 5/8 |
| MSPC(Solid) | 20 1/2-22 1/2 | Insert bowl 1809 | 2 3/8-8 5/8 |
| Insert bowl 1902 | 9 5/8-10 3/4 | ||
| Master bushing1805-1 | 11 3/4-13 3/8 | ||
| Master bushing19333 | 11 3/4-13 3/8 | ||
| 23-27 1/2 | No.3 Insert bowl 1810 | 2 3/8-8 5/8 | |
| No.2 Insert bowl 1904 | 9 5/8-10 3/4 | ||
| No.1 Insert bowl 1903 | 11 3/4-13 3/8 | ||
| MDSP(Split) | 17 1/2-20 1/2 | — | 2 3/8-8 5/8 |
| MSP(Split) | 27 1/2 | — | 2 3/8-8 5/8 |
| MPCH | 37 1/2 | No.3 Insert bowl 6608 | 2 3/8-8 5/8 |
| No.2 Insert bowl 6609 | 9 5/8-10 3/4 | ||
| No.1 Insert bowl 6610 | 11 3/4-13 3/8 | ||
| 49 1/2 | MPCH371/2 | 2 3/8-13 3/8 | |
