Product Details:
|
| Product Name: | Master Bushing And Insert Bowls | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Processing Type: | Forging | Material: | Alloy Steel |
| Casing Size: | 2 3/8-30 Inch | Rotary Size: | 17 1/2- 49 1/2 Inch |
| Surface Treatment: | High Frequency Quenching | Bush Type: | Solid And Split Bushings |
| Application: | Rotary Table | Packing: | Standard Exported Package |
| High Light: | Drilling Rotary Table Insert Bowls,MSS Drilling Rig Spare Parts,Alloy Steel Drilling Master Bushing |
||

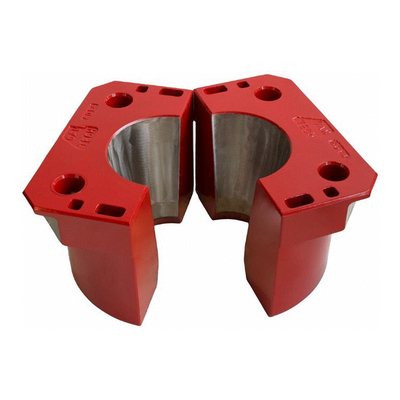

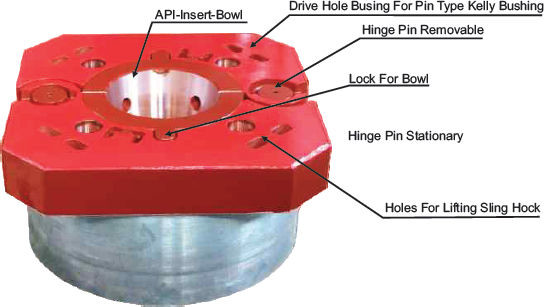

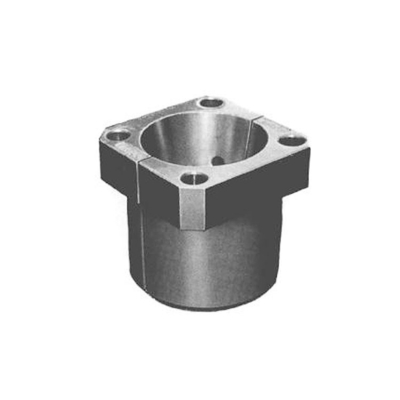

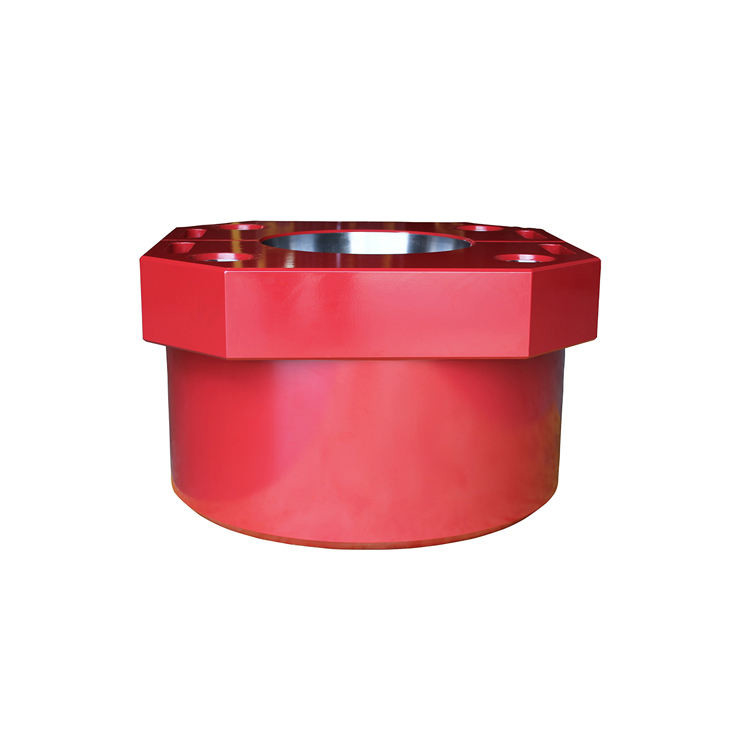

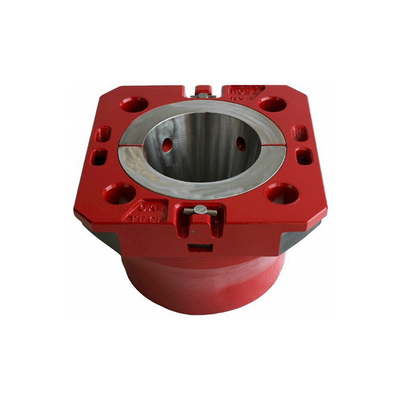

Drilling Rig Spare Parts Master Bushing and Insert Bowls MSS for Drilling Rotary Table
Description of Master Bushing and Insert Bowls MSS for Drilling Rotary Table:
These series of rotary bushing are suitable for API standard rotary slips, drill collar slips, casing slips,insert bowls and roller bushings, with two structures: solid body and split body. Two drive types are available: pin driven and square driven. It is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”. These series of rotary bushing are suitable for API standard rotary slips, drill collar slips, casing slips,insert bowls and roller bushings, with two structures: solid body and split body. Two drive types are available: pin driven and square driven. It is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”
The Technicals of Master Bushing and Insert Bowls
| Model | Rotary table size (in) | Insert bowl | Tubulars OD |
| (in) | |||
| MSS(solid) | 17 1/2~23 | 1011 | 2 3/8~7 5/8 |
| Extended 1024 | 2 3/8~8 5/8 | ||
| 27 1/2 | 1022 | 2 3/8~7 5/8 | |
| Extended 1025 | 2 3/8~8 5/8 | ||
| 1026 | 9 5/8~10 3/4 | ||
| 2002 | 11 3/4~13 3/8 | ||
| MSS(Split) | 17 1/2~27 1/2 | / | 2 3/8~7 5/8 |
| MSPC(Solid) | 20 1/2~22 1/2 | 1809 | 2 3/8~8 5/8 |
| 1902 | 9 5/8~10 3/4 | ||
| Master bushing 1805-1 | 11 3/4~13 3/8 | ||
| Master bushing 19333 | 11 3/4~13 3/8 | ||
| 23~27 1/2 | 1810 | 2 3/8~8 5/8 | |
| 1904 | 9 5/8~10 3/4 | ||
| 1903 | 11 3/4~13 3/8 | ||
| MDSP(Split) | 17 1/2~20 1/2 | / | 2 3/8~8 5/8 |
| MSP(Split) | 27 1/2 | / | 2 3/8~8 5/8 |
| MPCH | 37 1/2 | 6608 | 2 3/8~8 5/8 |
| 6609 | 9 5/8~10 3/4 | ||
| 6610 | 11 3/4~13 3/8 | ||
| 49 1/2 | MPCH 37 1/2 | 2 3/8~13 3/8 |
