Product Details:
|
| Warranty:: | 1 Year | Weight (KG):: | 400 |
|---|---|---|---|
| Application:: | Oil Drilling Rig | Standard:: | API 8C |
| Type:: | Hydraulic Support | Material:: | Carbon Steel |
| High Light: | Carbon Steel Drilling Rig Spare Parts,Rotary Cathead Drilling Rig Spare Parts,Drilling Rig Rotating Hydraulic Cat Head |
||

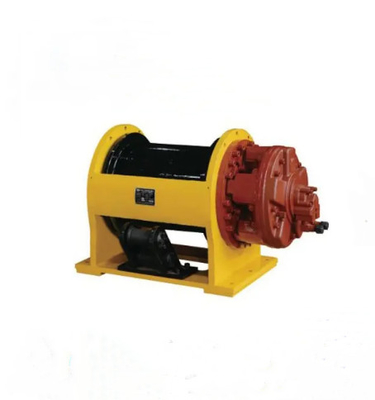

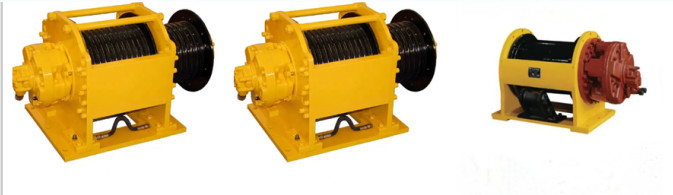

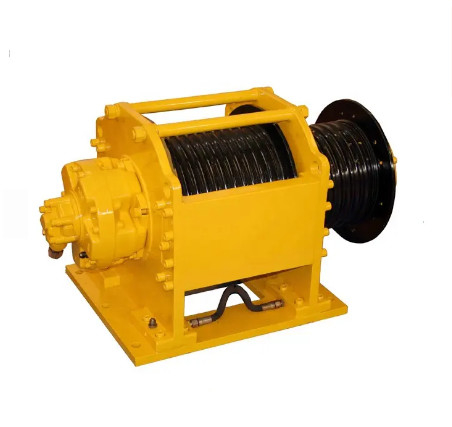

Drilling Rig Spare Parts API YXM Series Rotating Hydraulic Cat Head
The rotary cathead is widely used to tighten or loosen joint in drilling and service operation. It also is applicable for hauling and lifting weight. The cathead is hydraulically driven and braked. It feathers high start torque, stable running, low noise, safe and reliable. The cathead is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment.
Specification of YXM SERIES ROTARY CATHEAD
| Model | YXM-2 | YXM-5 | YXM-13 | YXM-16 | YXM-10/3 | YXM-18/3 | |||
| secondary drum | main drum | secondary drum | main drum | ||||||
| Flow rating | L/min | 40 | 120 | 120 | 120 | 120 | 120 | ||
| gpm | 10.6 | 31.7 | 31.7 | 31.7 | 31.7 | 31.7 | |||
| Pressure rating | MPa | 16.6 | 16.6 | 16.6 | 20 | 16.6 | 20 | ||
| psi | 2400 | 2400 | 2400 | 2900 | 2400 | 2900 | |||
| Max.Pull | kN | 20 | 50 | 130 | 160 | 30 | 100 | 30 | 180 |
| US ton | 2.2 | 5.5 | 14.3 | 17.6 | 3.3 | 11 | 3.3 | 19.8 | |
| Max.rope speed | m/min | 30 | 30 | 14 | 14 | 65 | 15 | 54 | 10.8 |
| ft/min | 98 | 98 | 46 | 46 | 212 | 49 | 176 | 35 | |
| Wire rope diameter | mm | 10 | 30 | 24 | 26 | 25.4 | 24 | 25.4 | 25.4 |
| in | 3/8 | 13/16(Coir rope) | 15/16 | 11/32 | 1 (Coir rope) | 15/16 | 1 (Coir rope) | 1 | |
| Rope storage | m | 15 | 10 | 40 | 40 | 50 | 40 | 12 | 20 |
| ft | 49 | 32.75 | 131 | 131 | 164 | 131 | 39 | 65.5 | |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
