Product Details:
|
| Product Name: | Top Drive System | Motor: | DC Motor |
|---|---|---|---|
| Drill Hole Diameter: | 100-150mm | Drill Hole Depth: | >300m |
| Rotary Speed: | 0 - 220rpm | Drilling Depth: | 7,000m(23,000FT) |
| Rated Load Capacities: | 4,500kn(500t) | HS Code: | 8431431000 |
| Max. Torque Of Break Out: | 80kn.M | Tilt Angle Of Tilt Arm ( Max): | Forth 30" Back 55" |
| High Light: | Top Drive Drilling Rig Spare Parts,DC Motor Drilling Rig Spare Parts |
||

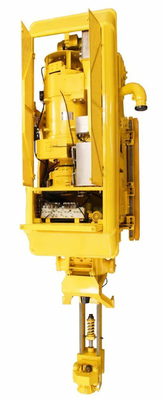

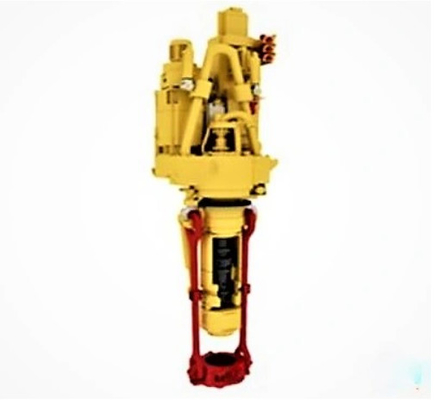

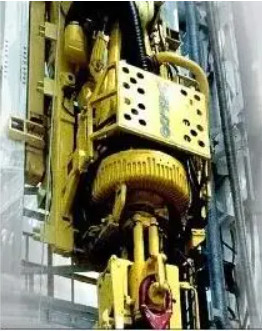

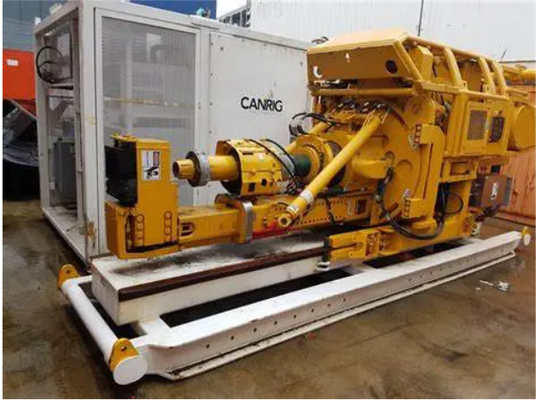

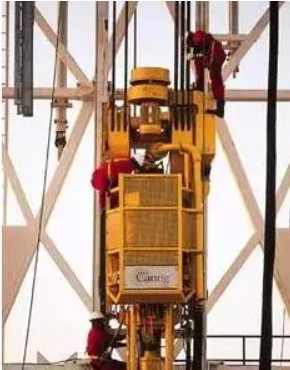

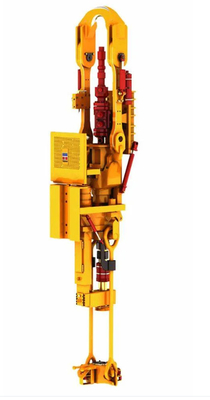

Nov Varco Carig Tesco Drilling Rig Spare Parts BJ 500 Ton Top Drive System

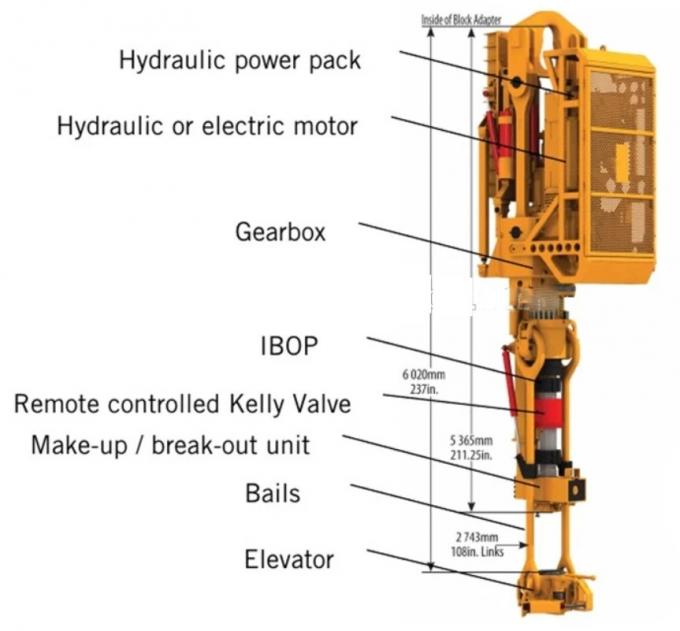

Top Drive System Description of Drilling Rig Spare Parts:

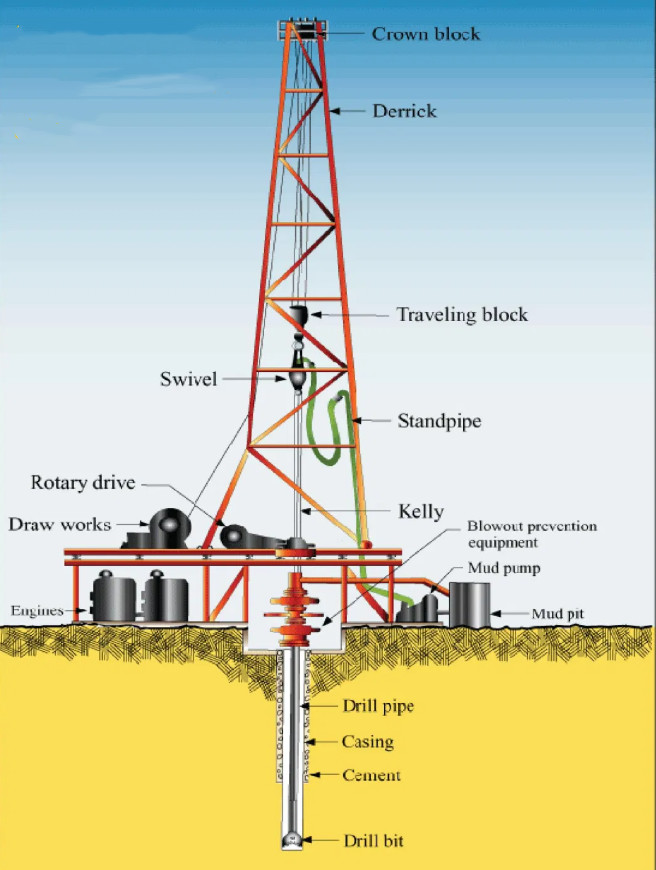

TDS is one of the greatest technological revolutions of petroleum equipment which is used to replace Kelly and rotary table.TDS can drill with triples instead of singles which can reduce two-thirds volume of work of makeup and breakout and greatly increase drilling speed.
Drilling Rig Spare Parts IBOP Technical Parameter:
| Specification | 250Ton | 350Ton | 500Ton |
| Nominal drilling depth (5 1/2" drill pipe) | 4,000m(13,000ft) | 5,000m(16,000ft) | 7,000m(23,000ft) |
| Rated load capacities | 2,250KN(250t)) | 3,150KN(350t) | 4,500KN(500t) |
| Drilling torque (continuous, max.) | 32KN.m | 36KN.m | 54KN.m |
| Rotary speed | 0 - 180rpm | 0 - 180rpm | 0 - 220rpm |
| Rated power of AC induction motor | 315 KW x 1 | 350KW x 1 | 350KW x 2 |
| Tilt angle of tilt arm ( max) | Forth 30" Back 55" | Forth 30" Back 55" | Forth 30" Back 55" |
| Maximum torque of break out | 50KN.m | 65KN.m | 80KN.m |
| Working pressure of hydraulic system | 16MPa | 16MPa | 16MPa |
| Input voltage of driving cabinet | 600VAC | 600VAC | 600VAC |
| Range of variable frequency | Rated 0 - 121Hz | Rated 0 - 121Hz | Rated 0 - 121Hz |
| Shift gears range of motor | 0 - 2,400rpm | 0 - 2,400rpm | 0 - 2,400rpm |
| Drill pipe range | 2 7/8" - 5 1/2" | 2 7/8" - 5 1/2" | 2 7/8" - 5 1/2" |
| Alarm Temperature of motor | 220degree | 220degree | |
| Alarm Temperature of gear oil | 75degree | 75degree | |
| Alarm Temperature of hydraulic oil | 75degree | 75degree | |
| Transmission ratio | 12.8:1 | 10.4:1 | |
| Shift gears range of motor | 0 - 2,400rpm | 0 - 2,400rpm | 0 - 2,400rpm |
| Drill pipe range | 2 7/8" - 5 1/2" | 2 7/8" - 5 1/2" | 2 7/8" - 5 1/2" |
| Alarm Temperature of motor | 220degree | 220degree | |
| Alarm Temperature of gear oil | 75degree | 75degree | |
| Alarm Temperature of hydraulic oil | 75degree | 75degree | |
| Transmission ratio | 12.8:1 | 10.4:1 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
Topland main products:
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
