Product Details:
|
| Warranty:: | 1 Year | Type:: | Varco Top Drive Spare Parts, Integal Swivel Assembly Wash |
|---|---|---|---|
| Model:: | SL135, SL170, SL225, SL450 | Color:: | Customers' Requirement |
| Processing Type:: | Casting | ||
| High Light: | Oilfield Drilling Rig Spare Parts,Wash Pipe Drilling Rig Spare Parts |
||

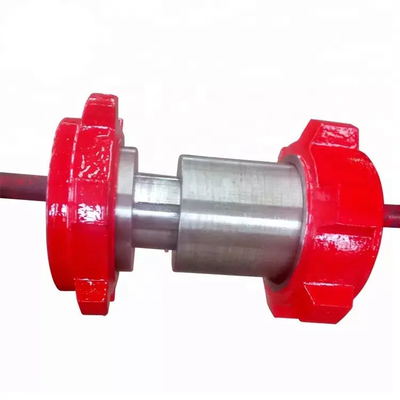

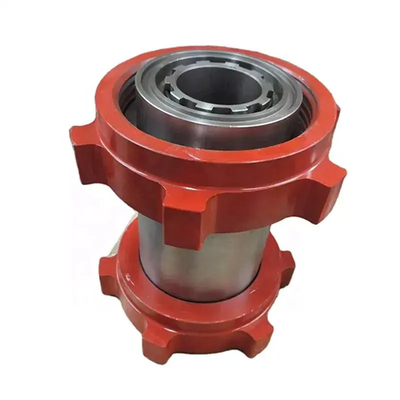

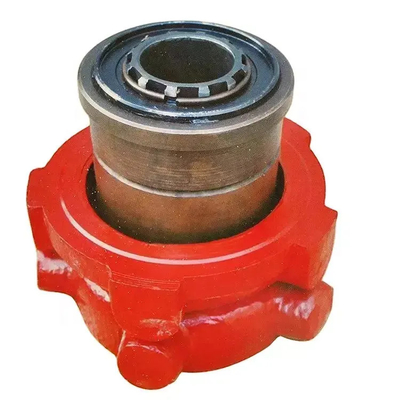

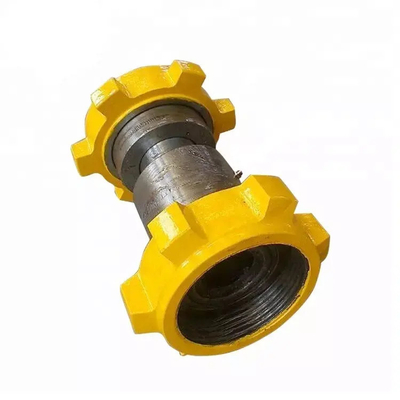

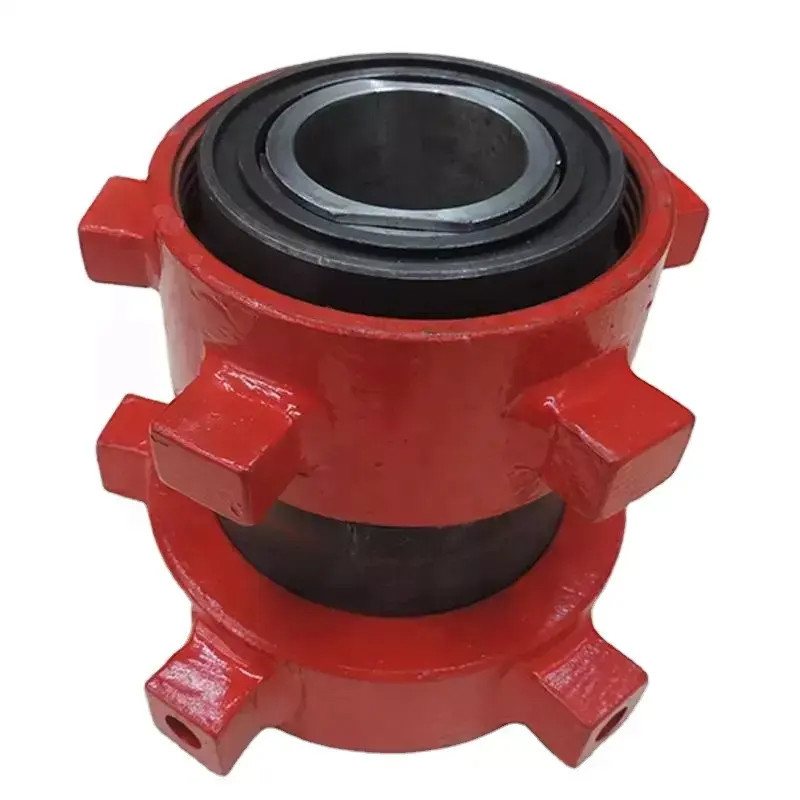

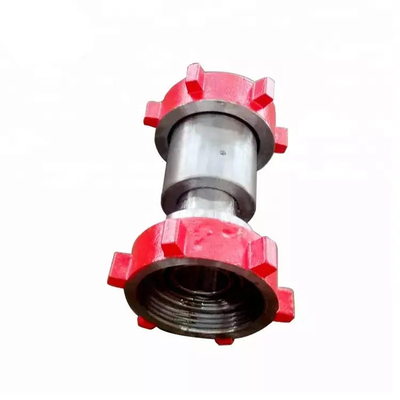

Oilfield Drilling Rig Swivels Wash Pipe Packing Assembly
Swivels Type SL are necessary hoisting tools for hanging drill pipes and jionting hoses in well repairing. There are type SL 35,SL60, SL 90 and SL135,SL225,SL450. They are designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment. The swivels are necessary hoisting tools for hanging drill pipe and jointing hose in well repairing.
Specification:
| Model | SL135 | SL225 | SL450 | ||
| Max. static load kN(lbs) | 1350 | 2250 | 4500 | ||
| Max. Rotary speed (r/min) | 300 | 300 | 300 | ||
| Max. working pressure(Mpa) | 35 | 35 | 35 | ||
| Hook Clearance (mm) | 495 | 540 | 549 | ||
| Center Pipe Diameter (mm) | 64 | 75 | 75 | ||
| bore of stem mm(in) | 752 15/16 | 752 15/16 | 752 15/16 | ||
| Connection Screw Thread | Connect to Center Pipe API | REG 4 1/2,LH | REG 6 5/8,LH | REG 7 5/8,LH | |
| Connect to Kelly API | REG 6 5/8,LH | REG 6 5/8,LH | REG 6 5/8,LH | ||
| Model of air motor | FMS-20 | FMS-20 | FMS-20 | ||
| Rated speed r/min | 2800 | 2800 | 2800 | ||
| Power kW | 14.7 | 14.7 | 14.7 | ||
| Rated pressure MPa | 0.6 | 0.6 | 0.6 | ||
| Air consume volume m3/min | 17free air | 17free air | 17free air | ||
| Rated spinning speed r/min | 92 | 92 | 92 | ||
| Max. spinning torque N·m | 3000 | 3000 | 3000 | ||
| Overall dimension mm(in) | Length | 2505 | 2880 | 3015 | |
| Width | 758 | 1046 | 1096 | ||
| Height | 840 | 1065 | 1065 | ||
| Masskg(kg) | 1341 | 2570 | 3060 | ||
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
Topland is the supplier of ECDC, PDL, ADES. We have been engaged in manufacturing and supplying oilfield equipment and rig component for more than 12 years. Should you have any items interested, just send us inquiry at anytime. We will offer you the best price with excellent quality.
