Product Details:
|
| Product Name: | Oilfield Roller Chain | Type: | Short Pitch Precision Roller Chains |
|---|---|---|---|
| Transport Package: | Box | Material: | Cast Steel & Forged Steel |
| Commodity: | New | Surface Treatment: | Oil Blooming |
| Feature: | Heat Resistant | Chain Size: | 1/2" * 3/32" |
| High Light: | Roller Chain Drilling Rig Spares Parts,Short Pitch Drilling Rig Spares Parts,Short Pitch Precision Oilfield Roller Chain |
||

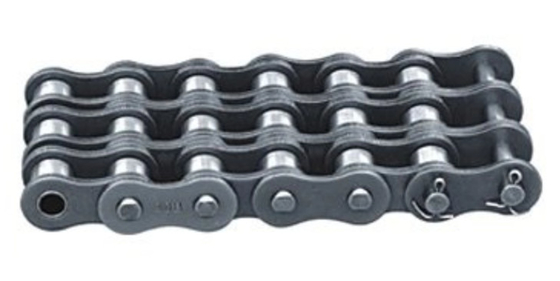

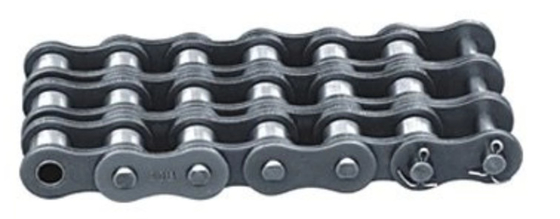

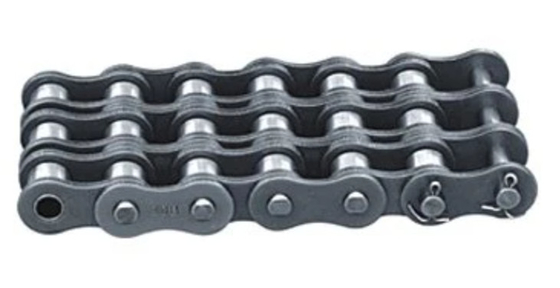

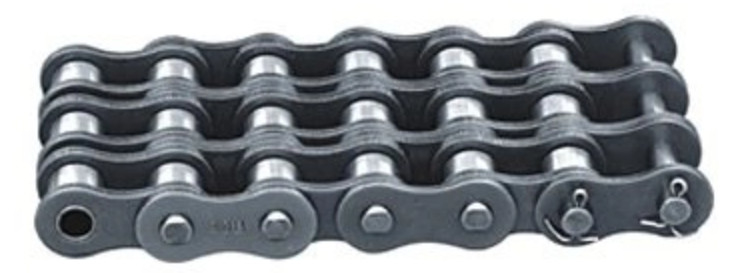

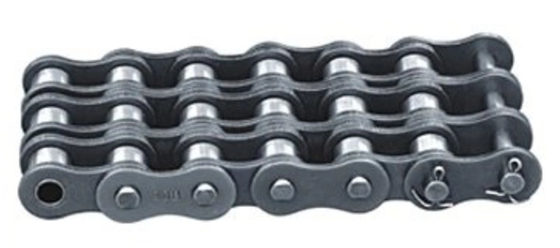

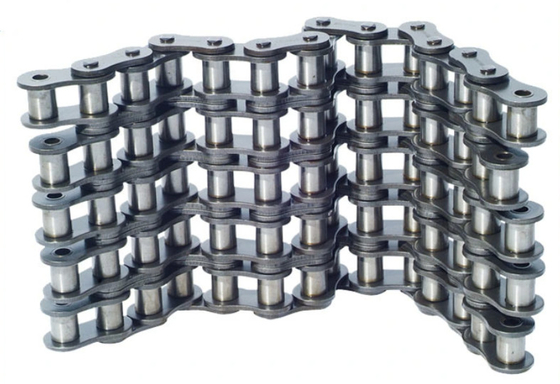

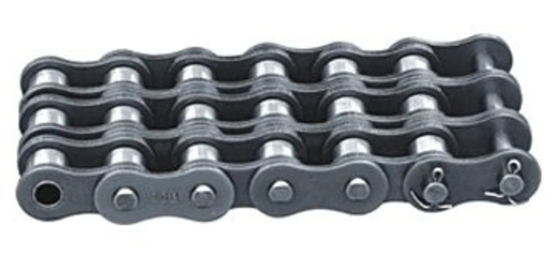

16S-1 Short Pitch Precision Roller Chains Drilling Rig Spares Parts Oilfield Roller Chain
Drilling Rig Spare Parts Oilfield Roller Chain description

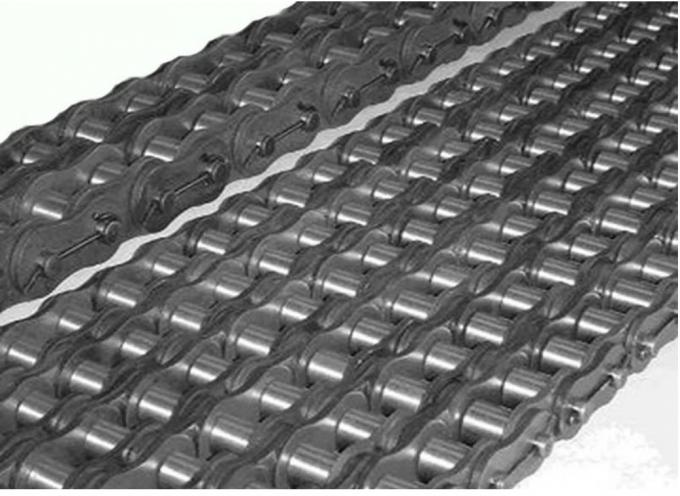

Oil Field Chains are used for oil-field drilling and producing operations such as mud pump drives, engine compounds, tubular and casing draw works input, transmission drives, camshafts, low and high drum, rotary countershafts, and rotary tables. These chains are also used in mining, logging and ball mill applications. Safety and reliability is paramount for oil field chains.

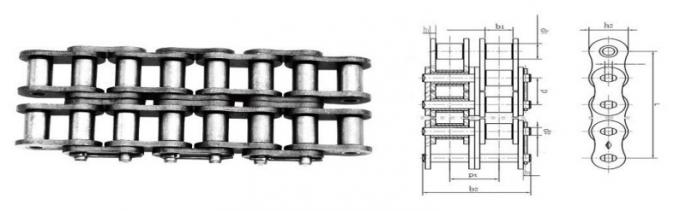

Oilfield Roller Chain datasheet of Drilling Rig Spare Parts
| GB Chiain No | Pitch | Roller Diameter | Inner width of inner link |
Pin diameter | Plate thickeness | Plate height | Array Pitch | Pin length | Tensile load | Weight/m |
| P | d1(max) | b1(max) | d2(max) | h1 | h2 | pt | b2 | min | q | |
| 16S-8 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 241.2 | 444.8 | 21.72 |
| 16S-6 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 182.6 | 333.6 | 16.32 |
| 16S-5 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 153.4 | 278 | 13.63 |
| 16S-4 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 124.1 | 222.4 | 10.93 |
| 16S-3 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 94.8 | 166.8 | 8.23 |
| 16S-2 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 65.5 | 111.2 | 5.54 |
| 16S-1 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 36.2 | 55.6 | 2.84 |
| 48S-4 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 365.7 | 2001.6 | 99.04 |
| 48S-3 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 277.9 | 1501.2 | 74.43 |
| 40S-2 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 156 | 695 | 34.14 |
| 48S-2 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 190.1 | 1000.8 | 49.81 |
| 48S-1 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | - | 102.2 | 500.4 | 25.2 |
| 40S-4 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 299.1 | 1390 | 67.73 |
| 40S-3 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 227.6 | 1042.5 | 50.94 |
| 40S-1 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | - | 84.5 | 347.5 | 17.35 |
| 36S-4 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 275.3 | 1121 | 55.36 |
| 36S-3 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 209.4 | 840.7 | 41.62 |
| 36S-2 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 143.6 | 560.5 | 27.88 |
| 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 32S-8 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 478.8 | 1779.2 | 81.68 |
| 32S-6 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 361.7 | 1334.4 | 61.33 |
| 32S-5 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 303.2 | 111.2 | 51.6 |
| 32S-4 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 244.6 | 889.6 | 40.99 |
| 32S-3 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 186.1 | 667.2 | 30.82 |
