Metal Valve Seal Oval Drilling Rig Spare Parts G0145 Octagonal Ring Joint Gasket

Metal Seal Oval Drilling Rig Spare Parts Octagonal Ring Joint Gasket

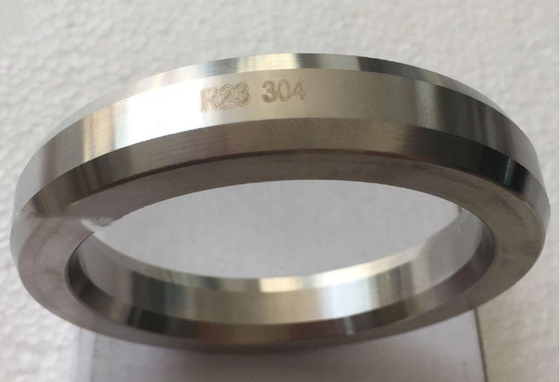

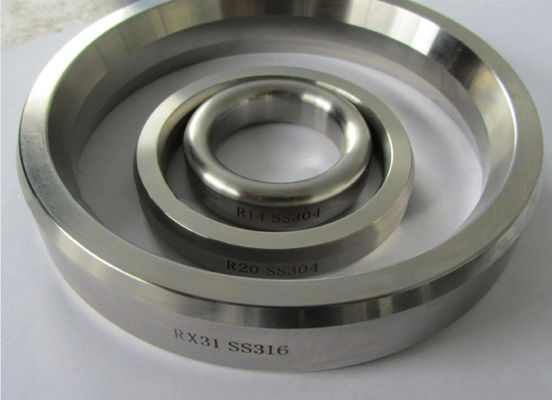

Ring type joint Description of Drilling Rig Spare Parts:

The ring type joint was initially developed for high pressure and temperature applications found in the petroleum industry and is primarily used in the oil field on drilling and completion equipments. However, today this product range can also be found on valves and pipework assemblies, along with some high integrity pressure vessel joints.

Metal ring gasket first comes from the United States, in the 1920 s, the first to use in boiler, then used for manhole cover, autoclave other Windows sealed, later in the oil production and refining industry particularly valued.With the increase of temperature and pressure of the steam power plant, metal ring gasket have been used more and more widely. Ring joint gasket is suitable for high temperature and pressure environment pipe flange, pump, valve joint. Standard ring type joints are manufactured to meet both API 6A and ASME B16.20 sizes and ratings.

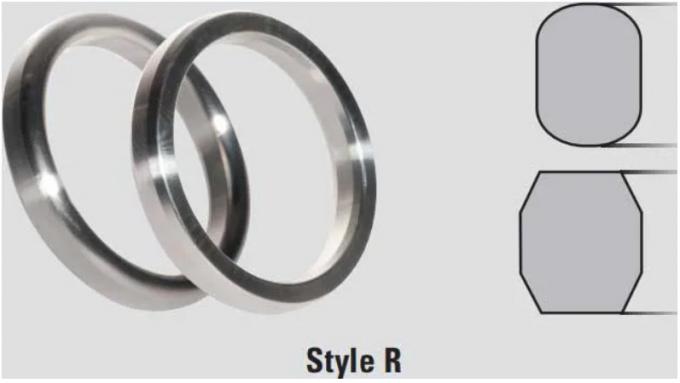

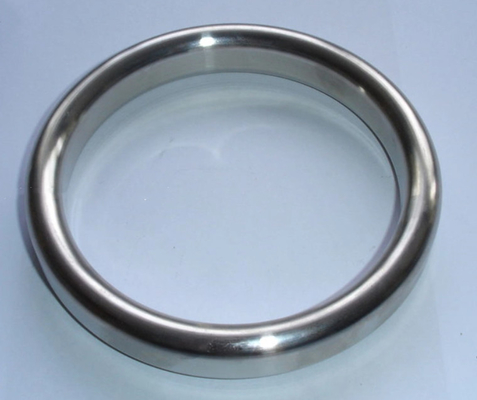

R series
R Series ring type joint gaskets are available in oval and octagonal designs. The oval design can be used in older round bottom gland designs, while both can be used in a flat bottom design. R Series are available up to 5,000 PSI.

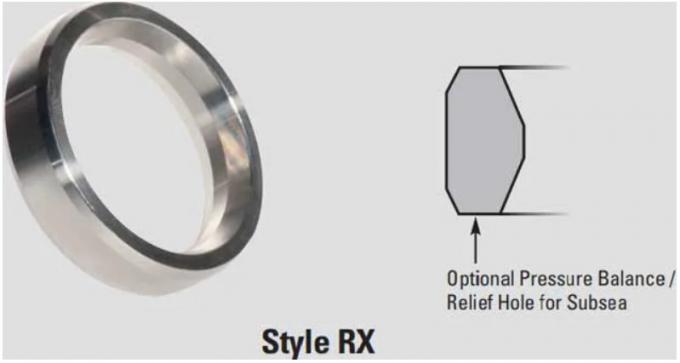

RX Series
RX series are replaceable with R series octagonal gaskets designed for API 6B flanges. RX out perform R series in situations that have higher pressures with more intense vibrations. RX gaskets are available up to 5,000 PSI.

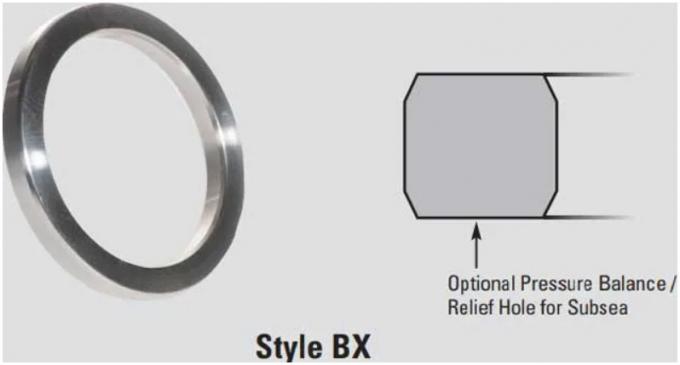

Flange ring joint gasket, Style BX

Ring Joint Gasket, Style IX

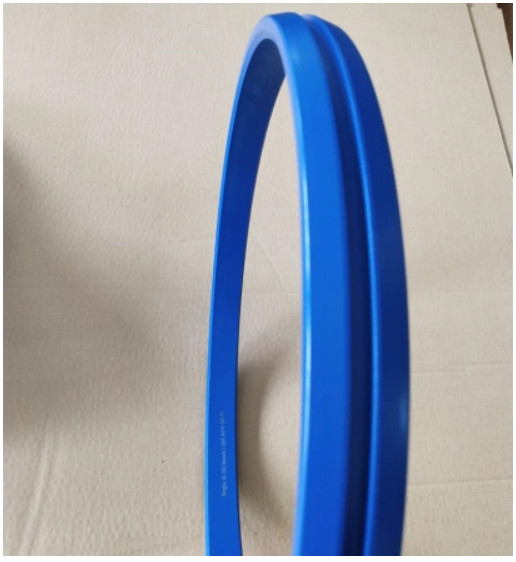

IX Seal Rings are designed and used where NORSOK CFC (Compact Flange Connections) are in use. The rings come in three different kinds of steel and are coated with PTFE in varying colors in order to distinguish between them

The designed or materials shall be selected, so that main sealing ares can not be subject to corrosion.

How IX Ring Seal Works?

IX Seal Ring axial forces are exerted on the taper of the metal seal ring and translated into a radial sealing force.

Furthermore with increased pre-load, the bevel is closed and face to face contact is achieved at the outer wedge while most of the bolt pre-load is transferred as compressive forces between the flange faces at the heel.

There are two independent seals. The first seal is created by application of seal seating stress at the flange heel. The flange also remains in contact along it`s outer circumference at the flange faces for all allowable load levels. The main seal is the IX Seal Ring. The seal ring force is provided by the elastic stored energy in the stressed seal ring. Any hell leakage will give intemal pressure acting on the seal ring inside intensifying the sealing action.

The design aims at preventing exposure to oxygen and other corrosive agents. Thus, this prevents corrosion of the flange faces, the stressed length of the bolts and the seal ring.

Application of ring joint gaskets
Usually used in high temperature and high pressure steam, gas, solvent tube flange, tank, pressure vessel, the joint surface, high temperature and high pressure valve, the cover.Oil and gas industry in wellhead sealing and oil extraction tree.
