Product Details:
|
| Product Name: | Combine Interlocking Kelly Bar | Material: | Q355B+35CrMo+27SiMn |
|---|---|---|---|
| Outer Pipe Dimeter: | 340mm-580mm | Length Per Section: | 13m-17m |
| Drilling Depth: | 36m-70m | Rated Torque: | 120kn.m-400kn.m |
| Condition: | New | HS Code: | 8431431000 |
| High Light: | 35CrMo Drilling Rig Spare Parts,Combined Interlocking Kelly Bar,Drilling Rig Full Interlocking Kelly Bar |
||

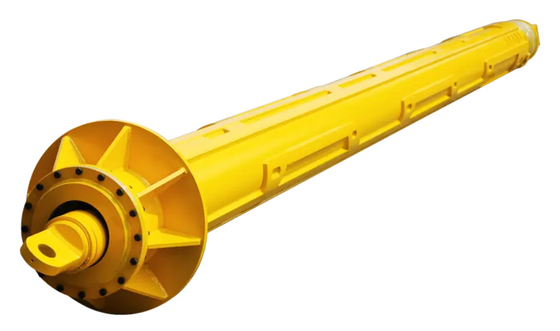

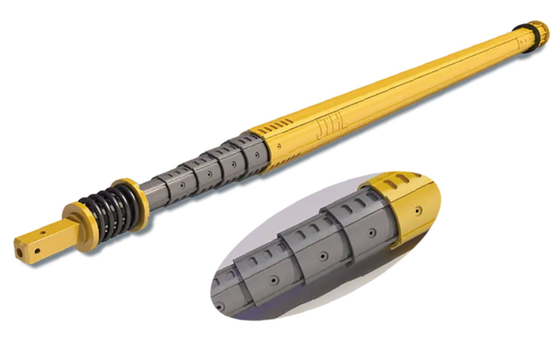

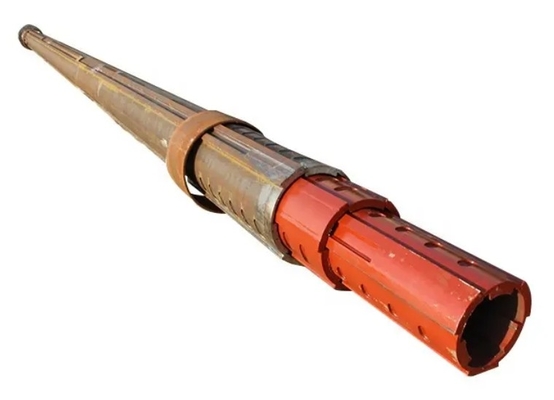

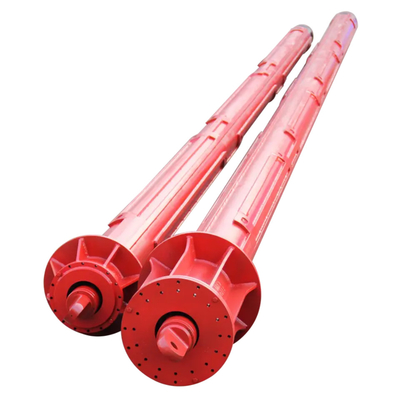

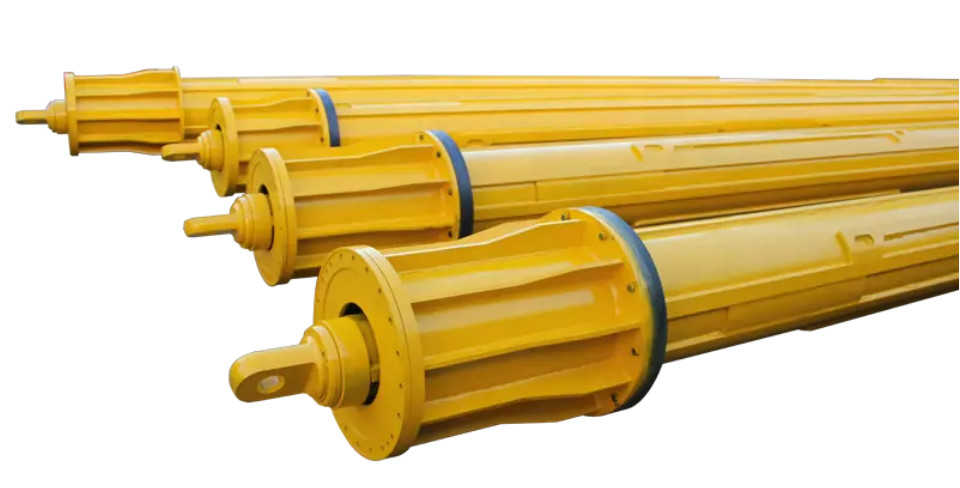

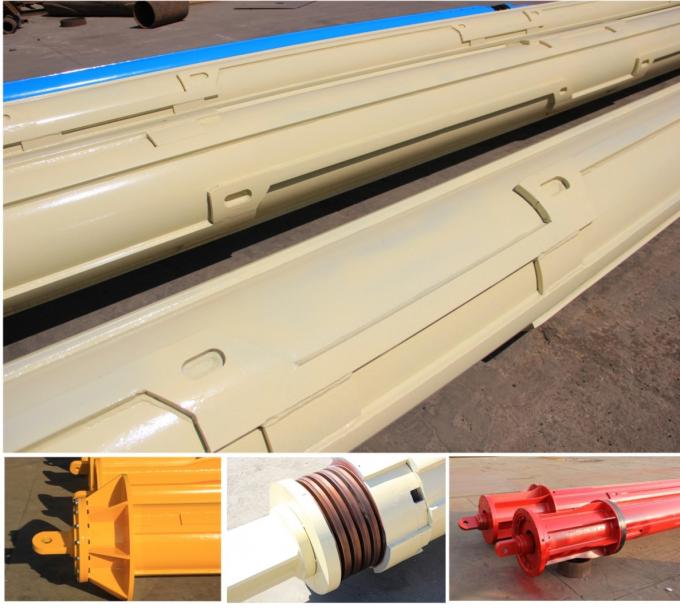

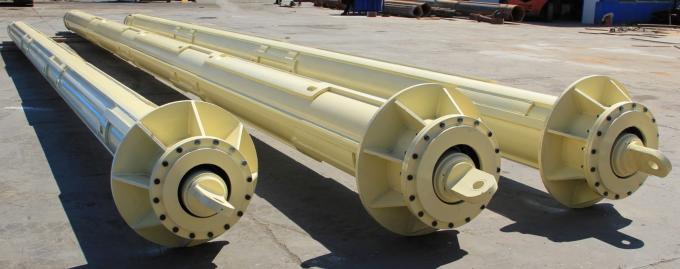

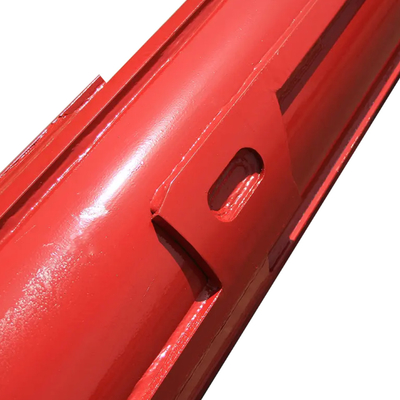

Combined Interlocking Kelly Bar Drilling Rig Spare Parts Full Interlocking Kelly Bar
Combined Interlocking Kelly Bar Description of Drilling Rig Spare Parts:
Combined full-interlocking kelly bar is one type of kelly bar combining of machine-locking form and full-interlocking form. This kelly bar use high-strength alloy steel pipe and wear-resistant alloy strip. It has advantage of passing down pressure with small pressure loss and the rapid transmission. Combined full-interlocking kelly bar is widely used in hard layer, frozen layer, goossse gravel layer.
Drilling Rig Spare Parts Combined Interlocking Kelly Bar Technical Parameter:
| Combined Full Interlocking Kelly Bar | ||||
| Type | O.Dia. (mm) |
Section | Drilling Depth (m) |
Torque (kn.m) |
| 12 φ340-3x13 | φ340 | 3 | 36 | 120 |
| 12 φ356-3x13 | φ356 | 3 | 36 | 120 |
| 15 φ377-4x14 | φ377 | 4 | 52 | 150 |
| 20 φ406-4x14 | φ406 | 4 | 52 | 200 |
| 22 φ406-4x14 | φ406 | 4 | 52 | 220 |
| 25φ 445-4x15 | φ445 | 4 | 56 | 250 |
| 25φ 470-4x15 | φ470 | 4 | 56 | 250 |
| 28φ 508-4x15 | φ508 | 4 | 56 | 280 |
| 28 φ508-5x15 | φ508 | 5 | 70 | 280 |
| 30 φ530-4x17 | φ530 | 4 | 63 | 300 |
| 40 φ580-4x17 | φ580 | 4 | 63 | 400 |
