Product Details:
|
| Product Name: | Integal Swivel Assembly Wash Pipe | Material: | Carbon Steel |
|---|---|---|---|
| Condition: | New | Weight: | 10 KG |
| Type: | Varco Top Drive Spare Parts, Integal Swivel Assembly | Machine Type: | Drilling Tool, Drilling Equipment |
| Processing Type: | Casting | HS Code: | 8431431000 |
| High Light: | Drilling Rig Wash Pipe Packing Assembly,Integral Swivel Assembly Wash Pipe |
||

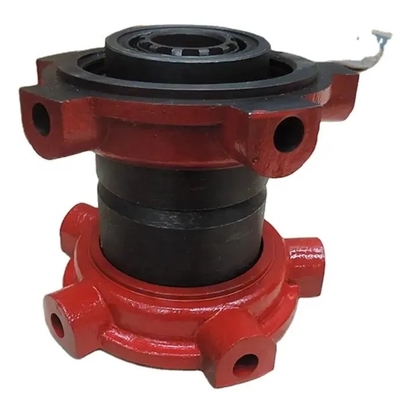

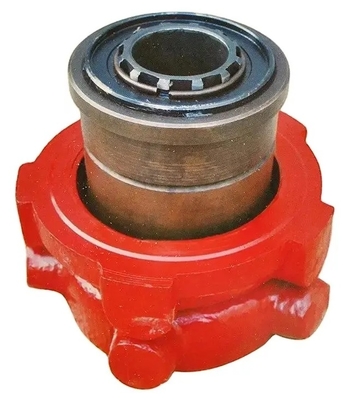

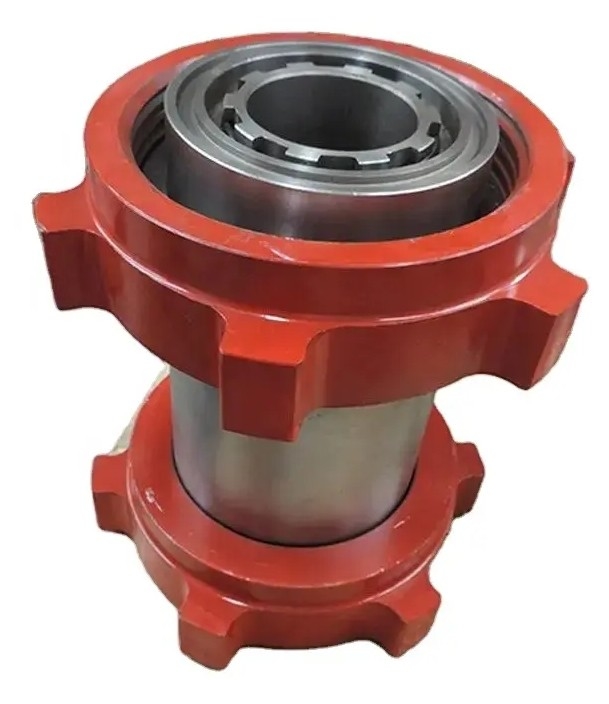

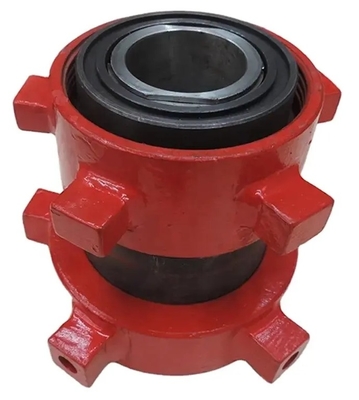

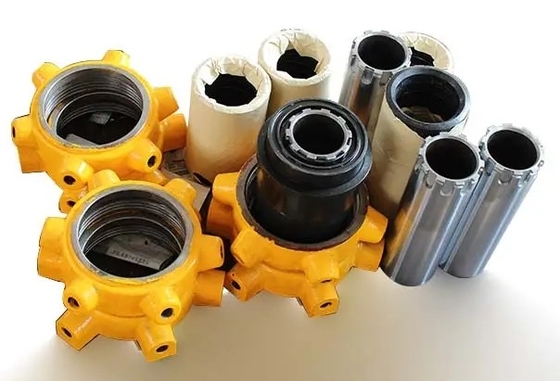

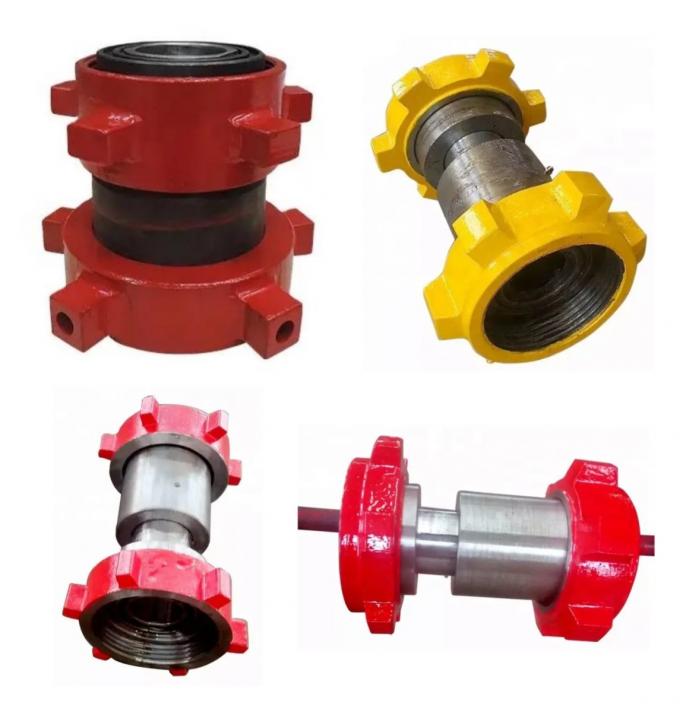

Wash Pipe Packing Assembly Drilling Rig Spare Parts Integal Swivel Assembly Wash Pipe
Integal Swivel Assembly Wash Pipe Description of Drilling Rig Spare Parts:
Swivels Type SL are necessary hoisting tools for hanging drill pipes and jionting hoses in well repairing. There are type SL 35,SL60, SL 90 and SL135,SL225,SL450. They are designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment. The swivels are necessary hoisting tools for hanging drill pipe and jointing hose in well repairing.
Drilling Rig Spare Parts Integal Swivel Assembly Wash PipeTechnical Specification
| Model | SL90 | SL135 | SL225 | SL450 | SL675 | |
| Max. static load KN | 900 | 1350 | 2250 | 4500 | 6750 | |
| Max. rotary speed r/min | 300 | 300 | 300 | 300 | 300 | |
| Max. working pressure MPA (psi) | 25 (3570) |
35 (5000) |
35 (5000) |
35 (5000) |
53 (7000) |
|
| Clearance between bail and gooseneck mm (in) |
435 (17 1/8) |
495 (19 1/2) |
540 (21 1/4) |
549 (21 5/8) |
640 (25) |
|
| Center pipe diameter mm(in) | 64 (2 1/2) |
64 (2 1/2) |
75 (3) |
75 (3) |
102 (4) |
|
| Center pipe upper screw thread | Connect to center pipe API In | 4 1/2 REG LH |
4 1/2 REG LH |
6 5/8 REG LH |
7 5/8 REG LH |
8 5/8 REG LH |
| Center pipe lower | Connect to Kelly API in | 6 5/8 REG LH |
6 5/8 REG LH |
6 5/8 REG LH |
6 5/8 REG LH |
6 5/8 REG LH |
| Gooseneck connection screw thread | 3"-8 teeth/inch | 3"-8 teeth/inch | 4"-8 teeth/inch | 4"-8 teeth/inch | 4"-8 teeth/inch | |
| Dimension (L x W x H) mm | 2505*758*840 | 2505*758*840 | 2880*1026*1065 | 3015*1096*1065 | 3649*1450*1162 | |
| Weight kg | 940 | 1345 | 2402 | 3310 | 6230 | |
| Note: For above models, spinner (makeup and breakout) is optional. | ||||||
