Product Details:
|
| Warranty Of Core: | 1 Year | Weight:: | 200kg |
|---|---|---|---|
| Certification:: | API 7K | Core Components:: | Motor |
| Applicable: | Energy & Mining | ||
| High Light: | Air Winch,Lifting Hauling Equipment QJL,Air Winch Drilling Rig Spare Parts |
||

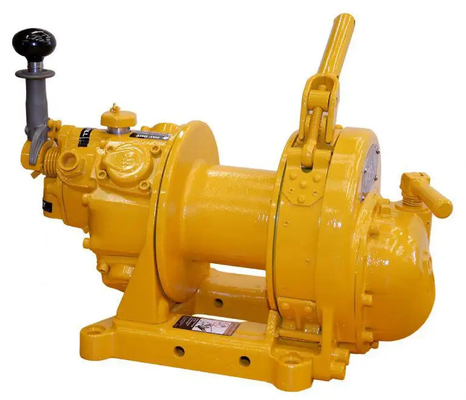

Drilling Rig Spare Parts Lifting Hauling Equipment QJL 0.5/40(A) /QJ5/220(B) Air Winch

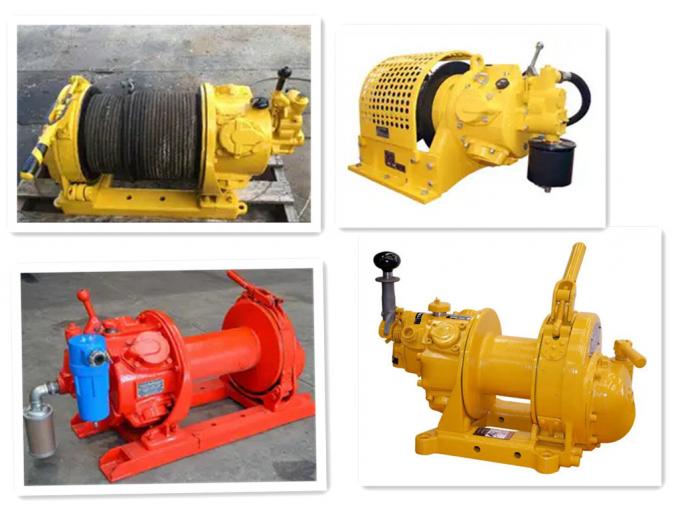

Description of Air Winches
Air winches are powered by piston-type air motor. They have the advantages of compact structure, light weight, safe and easy to operate and they are used for general lifting, hauling and other works in mines, oil fields, on shipboards and etc. Mainly consist of the Air motor, gear box, cylinder, brake system, frame etc.
Feature:
1. Piston type air motor used the double supporter design;
2. Operation rod can be adjusted infinite speed variation;
3. Main parts used the high strength steel;
4. Wire line can be provide.
5. Design and produce according to the API 7K standard
Technical Parameters:
| Model | QJL 0.5/40(A) | QJ0.5/120(A) | QJ1/100(A) | QJ3/200(B) | QJ5/220(B) | QJ5/220(B) | |
| Air pressure | Mpa | 0.5-0.9 | |||||
| Psi | 72-130 | ||||||
| Max.Pull | kN | 5 | 10 | 30 | 50 | ||
| ton | 0.55 | ||||||
| Max.Line Speed | m/min | 12 | 24 | 12 | 35 | 20 | 12 |
| Ft/min | 39.3 | 78.6 | 39.3 | 114.8 | 65.6 | 35.3 | |
| Rope Storage | M | 40 | 120 | 100 | 200 | 120 | 220 |
| ft | 131 | 393 | 328 | 656 | 393 | 720 | |
| Wire rope dia. | Mm | 8 | 11 | 15.875 | 19 | ||
| in | 5/16 | 7/16 | 5/8 | 3/4 | |||
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
