Product Details:
|
| Warranty:: | 3 Months | Weight (KG):: | 30 |
|---|---|---|---|
| Standard:: | API 7-1 | Bit Size:: | 4-1/2" ~ 17-1/2'' (114mm ~ 444.5mm) |
| WOB (KN/mm):: | 0.35 ~ 0.90 | Model:: | PDC Bit, PDC Drag Bit |
| Blade:: | 3 ~ 9 Blades | Rotary Speed (rpm):: | 300 ~ 800 |
| Cutters Size:: | 1313, 1613, 1616, 1913, 1916, 1919 | ||
| High Light: | API PDC Drill Bits,Oilfield PDC Drill Bits |
||
Drilling Rig Spare Parts Oilfield API Drill Bit For oil PDC Drill Bits
Description of PDC drill bit
PDC drill bit is super hard material combined with diamond and hard alloy under high temperature. It not only has the advantages of hard and durable from diamond, but also has the advantages of high impact resistance and big blade from hard alloy. It greatly improves the drilling efficiency and is the ideal drill bit for the drill operation of medium & hard as well as super hard rock. PDC bit PDC drill bit Diamond PDC bit
Cutting structure is force balanced and bit blade is asymmetrically designed so that the load on bit is balanced that resulting better stability of the bit PDC bit PDC drill bit Diamond PDC bit
Main cutter are high performance PDC cutters to insure service life of the bit while improving ROP.
Cutter exposure is optimized to insure the oil bit can achieve higher ROP is soft to medium formations.
Shock absorbers are designed to make the bit capable of drilling through formations with hard strigers.
Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance cleaning and cooling effects of the bit to effectively prevent bit from balling PDC bit PDC
Technical Parameter
| 1. PDC Matrix Body bit | |
| Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc. |
| Body Type: Matrix or Steel | |
| Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. | |
| Blades:2~9 Wings. | |
| 2. PDC Matrix Body Core Bit | |
| Type and Features | PDC core bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | 75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc. |
| 3. PDC Steel Body Bit | |
| Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc. |
| Body Type: Matrix or Steel | |
| Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. | |
| Blades:2~9 Wings. | |
| 4.PDC Drill Bit Body & Cutters Welding | |
| PDC Body(Matrix) | Customized. Wings: 2~9. Main Diamters:65mm,75mm,94mm,113mm,133mm,152mm,215.9mm,311.1mm etc. |
| 2.PDC Body(Steel) | Customized. Wings: 2~9. MainDiamters:65mm,75mm,94mm,113mm,133mm,152mm,215.9mm,311.1mm etc. |
| Core Bit Body(Matrix or Steel) | MainType:75/54,94/74,113/89,113/109,153/129mm,110/215.9mm, etc. PDC bit PDC drill bit Diamond PDC bit |
| 4.PDC Cutters and Welding OEM | PDC Cutters Type : 5/16"(8mm), 1/2"(13mm), 5/8"(16mm), 3/4"(19mm). |

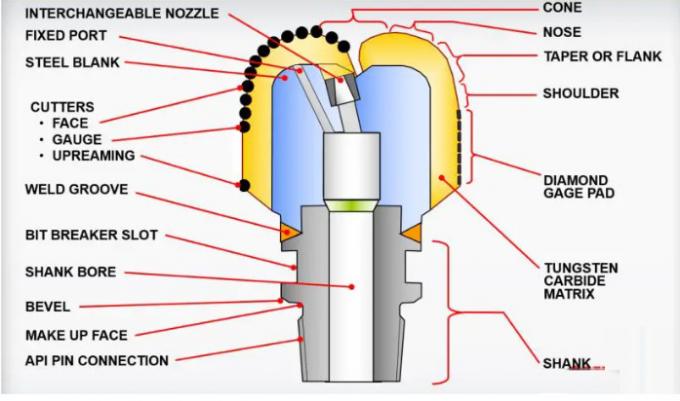

Contruction
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
