Product Details:
|
| Warranty:: | 6 Months | Weight (KG):: | 1000 |
|---|---|---|---|
| Type:: | Hook Block | Wire Line OD(mm):: | 25.4-32 |
| Application:: | Lifting Equipment | Capacity:: | 100kg -1000kg |
| High Light: | Oil Traveling Crane Hook Block,Drilling Rig Oilfield Hook,API Crane Hook Block |
||
Drilling Rig Spare Parts Oilfield Hook API Crane Hook Block For Oil Traveling Block

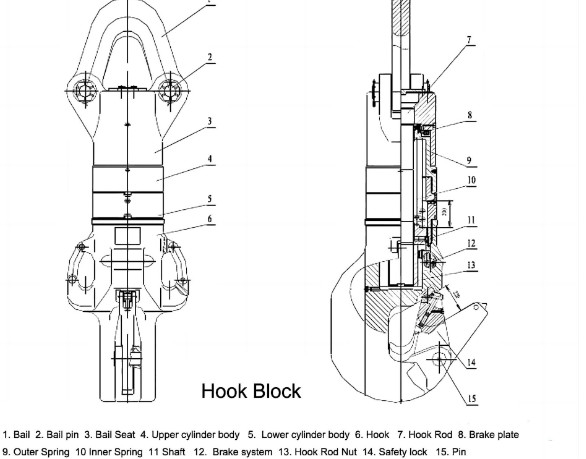

Description of Hook Block
The Hook Block includes a traveling block and a hook, it can be used to lifting drill string when in drilling situation. Its housing assembly is made of thick section steel plate and wire rope is kept taut when hoisting or lowering the unload block. Sheave grooves are hardened by medium frequency induction to provided extended service life Working sheaves have double-row conical roller bearings and each bearing is individually lubricated The sheaves are interchangeable with Corresponding Crown Block.The Traveling Block and the Hook conforms to 8C.
Technical Parameters:
| Model | DG90 | DG135 | DG170 | DG225 | DG315 | DG450 | DG585 | |
| Max. Hook Load | kN | 900 | 1350 | 1700 | 2250 | 3150 | 4500 | 5850 |
| Ton | 100 | 150 | 200 | 250 | 350 | 500 | 650 | |
| Main hook opening size | Mm | 155 | 165 | 180 | 190 | 2008/5/8 | 2009/3/8 | |
| in | 6-1/16 | 6-1/2 | 7 | 7-1/2 | 39576 | 39880 | ||
| Assistant hook dia. | Mm | 80 | 90 | 100 | 120 | |||
| in | 3-1/8 | 3-1/2 | 4 | 4-3/4 | ||||
| Spring stroke | mm | 180 | 200 | |||||
| in | 7 | 8 | ||||||

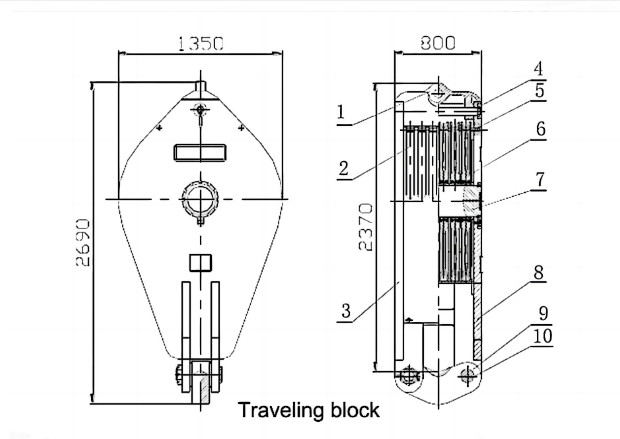

Traveling Block
| Model | YC90 | YC135 | YC170 | YC225 | YC315 | YC450 | YC585 | |
| Max. Hook Load | kN | 900 | 1350 | 1700 | 2250 | 3150 | 4500 | 5850 |
| Ton | 100 | 150 | 200 | 250 | 350 | 500 | 650 | |
| Sheave O.D. | Mm | 762 | 915 | 1120 | 1270 | 1524 | ||
| in | 30 | 36 | 44 | 50 | 60 | |||
| Sheave Qty | 4 | 5 | 6 | 7 | ||||
| Wire Rope Dia. | mm | 26 | 29 | 32 | 35 | 38 | 42 | |
| in | 1 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | 1-5/8 | |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
