Product Details:
|
| Certification:: | API 8C | Size:: | 20"~36" |
|---|---|---|---|
| Type:: | Crown Block | Warranty:: | 3 Months |
| High Light: | Drilling Rig Crown Wire Rope Pulley,Drilling Rig Wire Rope Sheave,API 8C Wire Rope Sheave |
||

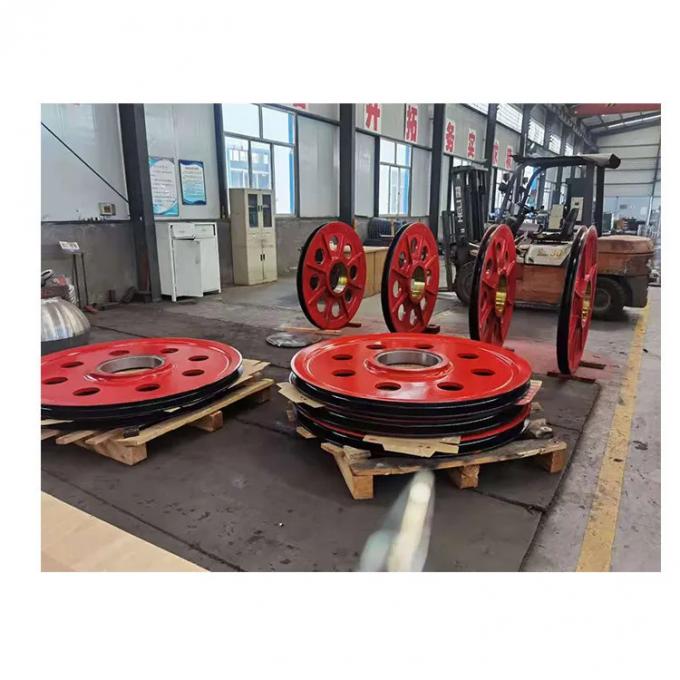

Drilling Rig Spare Parts API 8C Drilling Rig Crown Wire Rope Pulley /Wire Rope Sheave
Description of Wire Rope Pulley:
Roll-Forged Sheaves are available in many configurations in order to meet various oilfield applications.
• Roll-Forged™ sheaves are available in sizes up to 78” in diameter.
• Applications should provide for tightening separator plates against bearing cones to adjust and insure proper function of bearing.

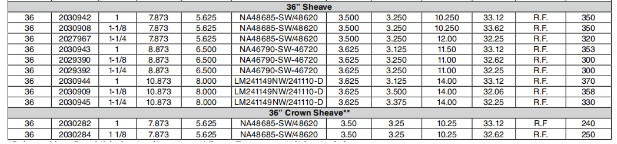

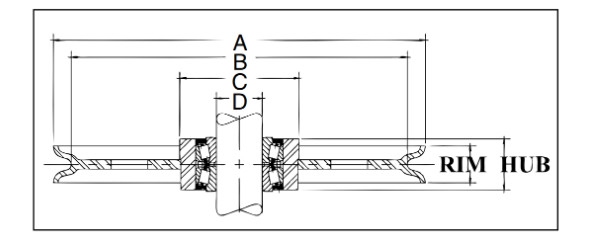

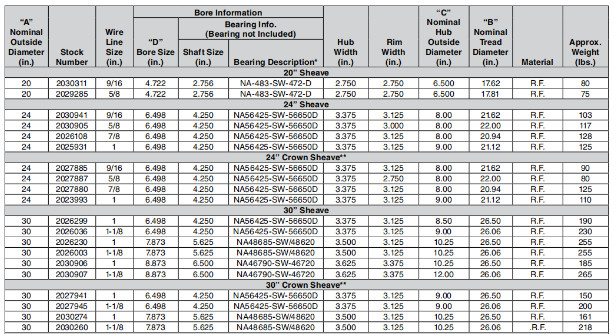

• Each sheave in the table below has a machined bore sized to accept the respective bearing number shown.
• The sheaves are provided from the factory plain bore (the bearings are not included).
Technical Parameters:
| Crown Block Sheave Technical Parameters | ||||
| Model | TC225 | TC315 | TC450 | |
| Max.Hook Load kN(lbf) | 2250 (505800) | 3150(708200) | 4500(1011600) | |
| Qty. And OD of Sheave mm(in) | (5+1) | (6+1) | (6+1) | |
| 1120(44) | 1270(50) | 1524(60) | ||
| OD of Guiding Sheave mm(in) | 1270(500) | 1524(60) | 1524(60) | |
| Dia. Of Wirerope mm(in) | 32(1 1/4) | 35(1 3/8) | 38(1 1/2 ) | |
| Overall Dimensions mm(in) | Length | 3200(126) | 3295(129.7) | 3305(1300) |
| Width | ||||
| Height | 3135(123.4) | 3700(145.7) | 3760(148) | |
| Weight kg(lbs) | 5764(12707.3) | 7980(17592.9) | 10600(23369) | |
