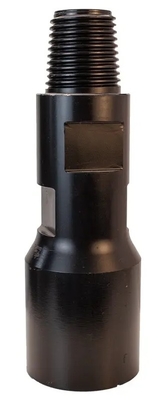

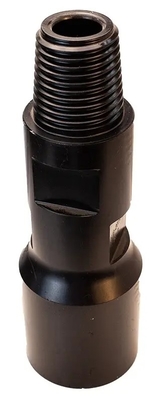

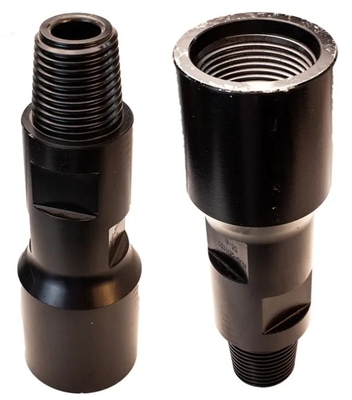

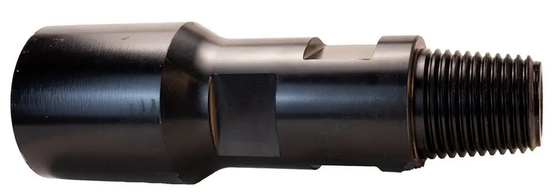

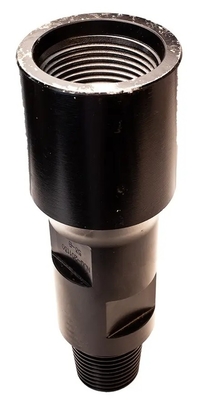

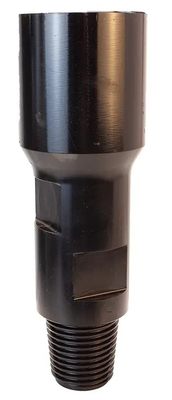

Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector

I'm Online Chat Now

Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector

Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector
Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector

Large Image :  Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector

Product Details:
Place of Origin: China
Brand Name: Topland
Certification: API
Model Number: Drill Rod Adapter
Payment & Shipping Terms:
Minimum Order Quantity: 10~20 pieces
Price: 50-500USD Per SET
Packaging Details: Wooden BOX
Delivery Time: 10 Work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1500 Set/Month

Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector

Description
Product Name: Drill Pipe Box And Pin Adapter Material: Carbon Steel, High Manganese Steel
Usage: Drilling Rig Spare Parts Condition: New
HS Code: 8431431000 Machine Type: Drilling Tool
Processing Type: Forging Pressure: High Air Pressure
High Light:

Drill Rig Pin Adapter

,

Forging Well Drill Pipe Box

,

API Well Drilling Connector

Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector



Drill Rod Adapter Description of Drilling Rig Spare Parts



Drill rod adapter is the portion of drill pipe, which includes pin adapter and box adapter, connected the two sides of the teo sides of the casing tube.



Drill Rod Adapter Technical Parameter of Drilling Rig Spare Parts:

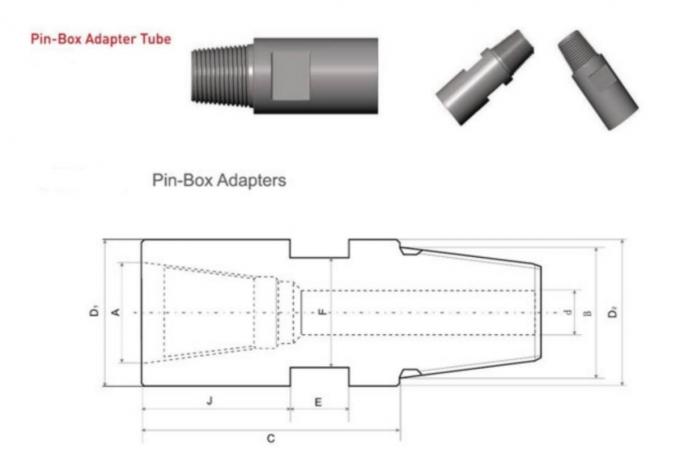

Pin-Box Adapters
Connection
C
Length
(mm)
J
Length Shoulder
(mm)
E
Width
Spanner flats
(mm)
d
Std bore
(mm)
Outside Diameter Across flat F
(mm)
Box up A Thread Type (B) D1
Top D1(mm)
D2
Bottom D2(mm)
API 2 3/8" REG API 2 3/8" REG 140 50.8 65 24 88.9 88.9 69.85
API 2 3/8" REG API 2 7/8" REG 134.9 69.85 50.8 31.75 88.9 88.9 69.85
API 2 3/8" REG API 3 1/2" REG 146 39.7 50.8 25.4 114.3 88.9 98.4
API 3 1/2" REG API 3 1/2" REG 101.6 39.7 50.8 44.45 127 127 98.4
API 3 1/2" REG API 4 1/2" REG 134.9 39.7 50.8 52.4 114.3 146 98.4
API 2 7/8" REG API 2 3/8" REG 134.9 39.7 50.8 31.75 88.9 88.9 69.85
API 2 7/8" REG API 3 1/2" REG 134.9 39.7 50.8 44.45 114.3 114.3 98.4
API 2 7/8" REG API 4 1/2" REG 174.6 100 50.8 44.45 114.3 146 98.4

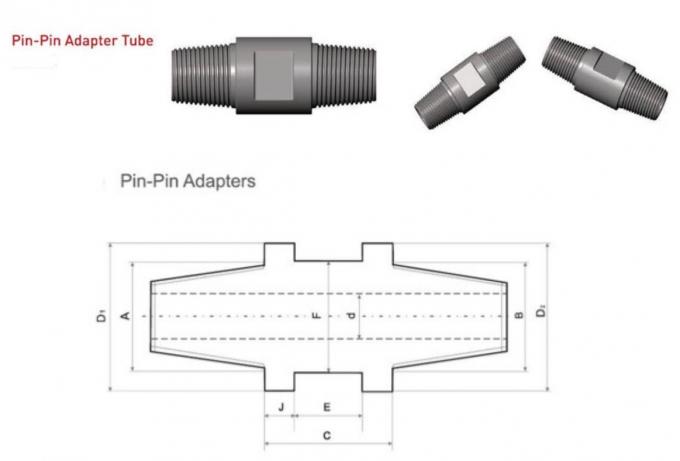

Pin-Pin Adapters
Connection
C
Length
(mm)
J
Length Shoulder
(mm)
E
Width
Spanner flats
(mm)
d
Std bore
(mm)
Outside Diameter Across flat F
(mm)
Pin up A Thread Type (B) D1
Top D1(mm)
D2
Bottom D2(mm)
API 2 3/8" REG API 2 7/8" REG 70 20 50.8 24 78 78 65
API 2 3/8" REG API 2 7/8" REG 152.4 50.8 50.8 25.4 88.9 88.9 69.85
API 2 3/8" REG API 3 1/2" REG 96 35 50.8 24 114.3 114.3 98.4
API 3 1/2" REG API 3 1/2" REG 177.8 63.5 50.8 44.45 114.3 114.3 98.4
API 3 1/2" REG API 4 1/2" REG 92 12.7 69.85 38.1 114.3 139.7 120.65
API 4 1/2" REG API 4 1/2" REG 203.2 76.2 50.8 58.7 146 146 120.65

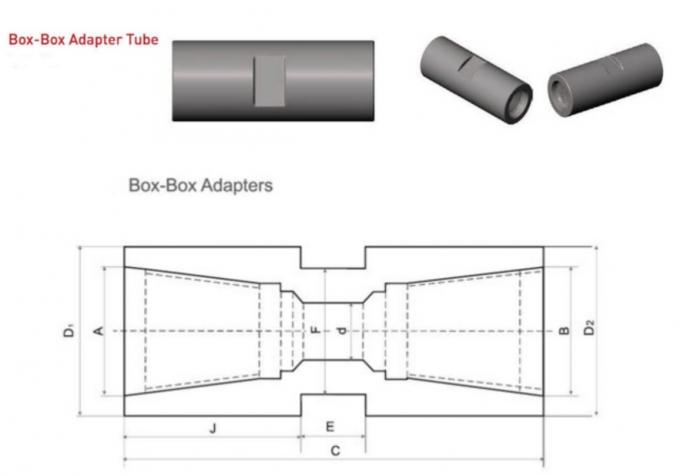

Box-Box Adapters
Connection
C
Length
(mm)
J
Length Shoulder
(mm)
E
Width
Spanner flats
(mm)
d
Std bore
(mm)
Outside Diameter Across flat F
(mm)
Box up A Thread Type (B) D1
Top D1(mm)
D2
Bottom D2(mm)
API 2 3/8" REG API 2 3/8" REG 219 57.1 50.8 38.1 88.9 88.9 69.85
API 2 7/8" REG API 2 3/8" REG 219 69.85 50.8 38.1 114.3 88.9 98.4
API 2 3/8" REG API 3 1/2" REG 128.6 57.1 50.8 38.1 88.9 114.3 69.8
API 3 1/2" REG API 3 1/2" REG 241.3 69.85 50.8 44.45 114.3 114.3 98.4
API 3 1/2" REG API 4 1/2" REG 269.8 88.9 50.8 58.7 114.3 146 98.4
API 2 7/8" REG API 3 1/2" REG 241.3 69.85 50.8 44.45 114.3 51.7 98.4
API 4 1/2" REG API 2 7/8" REG 250.8 76.2 50.8 44.45 114.3 146 98.4



Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector 0

Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector 1

Drill Pipe Box Pin Adapter Drilling Rig Spare Parts API Well Drilling Connector 2
