Product Details:
|
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Application: | Well Drilling | Keyword:: | NOV Top Drive Spare Parts |
| Processing Type:: | Forging | ||
| High Light: | PH-100 IBOP Valve,TDS-8S Top Drive Spare Parts,Upper IBOP Valve |
||

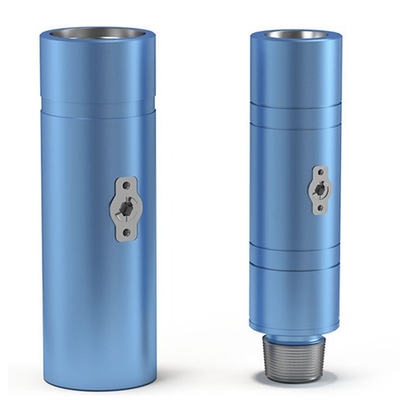

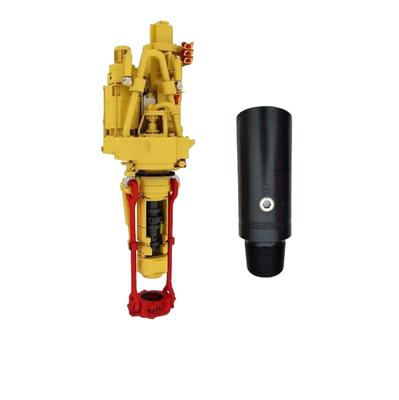

TDS-8S Top Drive Spare Parts Lower/Upper IBOP Valve NOV IBOP PH-100
IBOP Description of Drilling Rig Spare Parts:
IBOP for top drive can be divided into Upper IBOP and Lower IBOP; they are control valves which are used with the top drive system. Usually the two valves connected to the top drive drilling device. The IBOP adopts high reliable metal seal. So it can bear high pressure upward and downward. The working pressure can be achieved 10000 psi or 15000 psi. The bore of the valve body and all internal parts are special treated to prevent from corrosion and they can have a long life service. When well kick occurring, The upper IBOP can be closed by remote controlled, but the lower IBOP will be closed manually. Actuator for top drive is a subsidiary body which controls open and close of Upper IBOP. It works with other accessories of the rig, so that control opening and closing of Upper IBOP on.
Drilling Rig Spare Parts IBOP Technical Parameter:
| OD | ID | OAL | Connection |
| mm (inch) | mm (inch) | mm (inch) | |
| 187 (7-23/64) | 78 (3-5/64) | 572 (22-33/64) | 6-5/8 REG |
| 187 (7-23/64) | 78 (3-5/64) | 523 (20-19/32) | 6-5/8 REG |
| 187 (7-23/64) | 76.2 (3) | 572 (22-33/64) | 6-5/8 REG |
| 187 (7-23/64) | 76.2 (3) | 523 (20-19/32) | 6-5/8 REG |
| 187 (7-23/64) | 78 (3-5/64) | 523 (20-19/32) | 6-5/8 REG |
| 187 (7-23/64) | 78 (3-5/64) | 572 (22-33/64) | 6-5/8 REG |
| 190 (7-31/64) | 76.2 (3) | 547 (21-17/32) | 6-5/8 REG |
| 197 (7-3/4) | 76.2 (3) | 572 (22-33/64) | 6-5/8 REG |
| 197 (7-3/4) | 76.2 (3) | 536 (21-7/64) | 6-5/8 REG |
| 197 (7-3/4) | 78 (3-5/64) | 584 (23) | 6-5/8 REG |
| 197 (7-3/4) | 78 (3-5/64) | 512 (20-5/32) | 6-5/8 REG |
| 200 (7-7/8) | 76.2 (3) | 547 (21-17/32) | 6-5/8 REG |
| 216 (8-1/2) | 78 (3-5/64) | 600 (23-5/8) | 7-5/8 REG |
| 216 (8-1/2) | 78 (3-5/64) | 533 (20-63/64) | 7-5/8 REG |
| 216 (8-1/2) | 76.2 (3) | 603 (23-47/64) | 7-5/8 REG |
| 254 (10) | 105 (4-1/8) | 596 (23-15/32) | 8-5/8 REG |
| 67331-SBER | 30173887-500 | MODEL 30173887-500 UPPER IBOP VALVE, UPPER, IBOP, 15K,COMPLETE ASSY FOR TDS-8S TOP DRIVE SYSTEM AND PH-100 PIPE HANDLER.VARCO UPPER I-BOP VALVE P/N. 30173887-500, 5.¼" X 15,000 PSI WP WITH 9.06" OD X 3.1/16" ID WITH 3.82" BORE X 29½" LONG COMPLETE WITH 7.5/8" API REG BOX X BOX CONNECTIONS, SPLINED DUAL CRANK WITH SHOULDER AND REMOTE CONTROL AIR ACTUATOR FOR OPERATIONS |
| 67331-SBER | 91138 | MODEL 91138 LOWER IBOP VALVE, LOWER, IBOP, 15K, COMPLETE ASSY FOR TDS-8S TOP DRIVE SYSTEM AND PH-100 PIPE HANDLER. VARCO LOWER I-BOP VALVE P/N. 91138, 5.¼" X 15,000 PSI WP WITH 8.5/8" OD X 3.1/16" ID WITH 3.82" BORE COMPLETE WITH 7.5/8" API REG R.H. BOX X PIN CONNECTIONS |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service

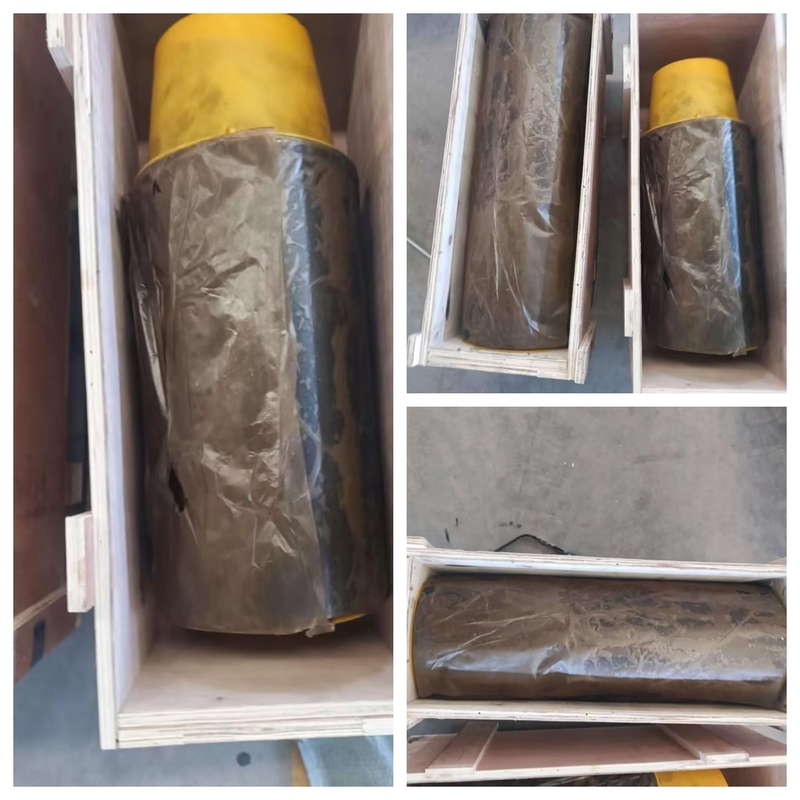

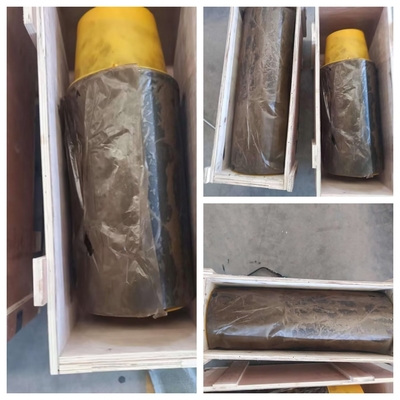

5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
