Product Details:
|
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| OPERATING PRESSURE (BARG): | -0.754 | TYPE: | Straight Way |
| Applicable Medium: | Water/ Oil/ Gas/ Air/Liquids Etc | ||
| High Light: | Float Type Sight Glasses,Sight Glasses SG-FQ41-206,Straight Way Drilling Rig Spare Parts |
||

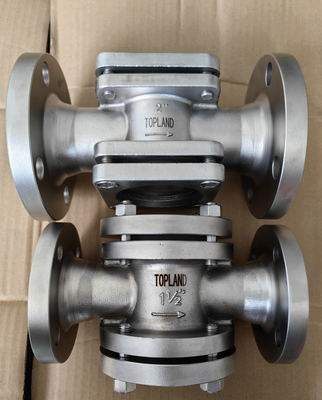

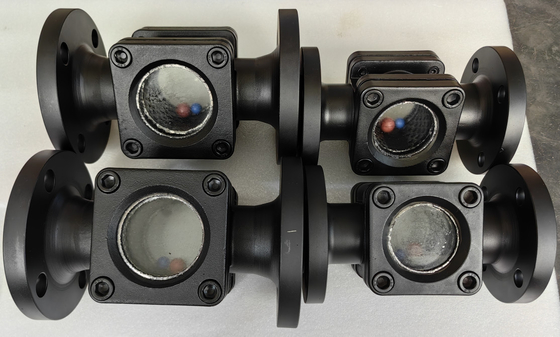

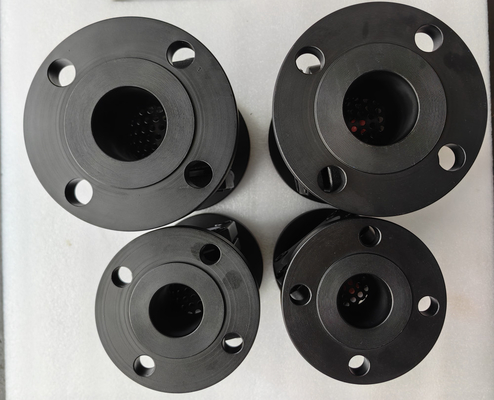

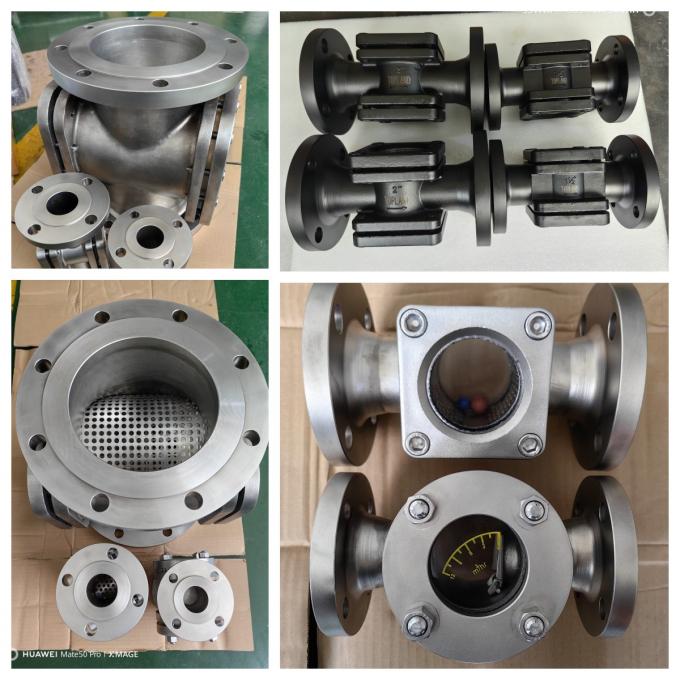

Sight Glasses SG-FQ41-206 Straight Way / Float Type
Product Description and Technical Parameters
| TAG NO.: 2-SP-21130 |
TYPE: Transparent type (Straight Way) SERVICE: DRAIN, PHASE: L RATING: 150#, ENDING: FLANGED (ASME B16.5), FACING: RF, SIZE: 2” OPERATING PRESSURE (BARG): 0.9 OPERATING TEMPERATURE (°C): 47 DESIGN PRESSURE (BARG): 4.6 DESIGN TEMPERATURE (°C): 160 DENSITY(Kg/M³): 990.6 VISCOSITY (cp): 0.573 FLOW RATE (M³/hr.): 2.5~3.44 (VTA) FLOW PATTERN: Single phase (Turbulent) BODY: ASTM A105/A216 WCB GLASSES: BOROSILICATE FLANGE: ASTM A 105 COVER GASKET: FLAT RING FLEX. GRAPH.Wt. AISI 304SS/316SS INSERT COVER BOLTTING: ASTM A 193 Gr. B7 /ASTM A194 Gr.2h TEST CODE: ASME B31.3 HYDROSTAATIC TEST PRESSURE (BARG) 5.3 Model No.: SG-FQ41-206[Float Type] 2"Inch/DN50; A105 Carbon Steel Body&Cap&Flange; ASTM A 325(45#) Bolts&Nuts; 304SS Graphite Gaskets; Borosilicate Glass(≤16Bar); Approximate Weight:11Kg/Pce |
| TAG NO.: 2-SP-21132 |
TYPE: Transparent type (Straight Way) SERVICE: DRAIN, PHASE: L RATING: 150#, ENDING: FLANGED (ASME B16.5), FACING: RF, SIZE: 1 ½” OPERATING PRESSURE (BARG): 0.9 OPERATING TEMPERATURE (°C): 46 DESIGN PRESSURE (BARG): 4.6 DESIGN TEMPERATURE (°C): 160 DENSITY(Kg/M³): 990.6, VISCOSITY (cp):0.573 FLOW RATE (M³/hr.): 1.27~1.76 (VTA) MAXIMUM CAPACITY (Kg/h): BY VENDOR FLOW PATTERN: Single phase (Turbulent) BODY: ASTM A105/A216 WCB GLASSES: BOROSILICATE FLANGE: ASTM A105 COVER GASKET: FLAT RING FLEX. GRAPH. Wt. AISI 304SS/316SS INSERT COVER BOLTTING: ASTM A 193 Gr. B7 / ASTM A194 Gr.2h TEST CODE: ASME B31.3 HYDROSTAATIC TEST PRESSURE (BARG) 5.3 Model No.: SG-FQ41-206[Float Type] 1 1/2"Inch/DN40; A105 Carbon Steel Body&Cap&Flange; ASTM A 325(45#) Bolts&Nuts; 304SS GraphiteGaskets; Borosilicate Glass(≤16Bar); Approximate Weight:8Kg/Pce |
| TAG NO.: 2-SP-21133 |
TYPE: Transparent type (Straight Way) SERVICE: DRAIN, PHASE: L, RATING: 150#, ENDING: FLANGED (ASME B16.5), FACING: RF, SIZE: 1 ½” OPERATING PRESSURE (BARG): 0.9 OPERATING TEMPERATURE (°C): 46 DESIGN PRESSURE (BARG): 4.6 DESIGN TEMPERATURE (°C): 160 DENSITY(Kg/M³): 990.6, VISCOSITY (cp):0.573 FLOW RATE (M³/hr.): 1.27~1.76 (VTA) MAXIMUM CAPACITY (Kg/h): BY VENDOR FLOW PATTERN: Single phase (Turbulent) BODY: ASTM A105/A216 WCB GLASSES: BOROSILICATE FLANGE: ASTM A105 COVER GASKET: FLAT RING FLEX. GRAPH. Wt. AISI 304SS/316SS INSERT COVER BOLTTING: ASTM A 193 Gr. B7 /ASTM A194 Gr.2h TEST CODE: ASME B31.3 HYDROSTAATIC TEST PRESSURE (BARG): 5.3 Model No.: SG-FQ41-206[Float Type] 1 1/2"Inch/DN40; A105 Carbon Steel Body&Cap&Flange; ASTM A 325(45#)Bolts&Nuts; 304SS GraphiteGaskets; Borosilicate Glass(≤16Bar) Approximate Weight:8Kg/Pce |
| TAG NO.: 2-SP-42600 |
TYPE: Straight Way SERVICE: UREA FORMAILDEHYDE PHASE: LIQUID RATING: 150#, ENDING: FLANGED (ASME B16.5), FACING: RF, SIZE: 1.5” OPERATING PRESSURE (BARG): 1.12 OPERATING TEMPERATURE (°C): 45 DESIGN PRESSURE (BARG): 12 DESIGN TEMPERATURE (°C): 115 DENSITY(Kg/M³): 1305, VISCOSITY (cp): 260 FLOW RATE (M³/hr.): 0.32 FLOW PATTERN: LAMINAR FLOW BODY: ASTM A182 Gr. F316L/A351 GR.CF3M-BB01 GLASSES: BOROSILICATE FLANGE: ASTM A182 Gr. F304L-BB01 COVER GASKET: FLEX. GRAPH. Wt. AISI 304SS/316SS INS COVER BOLTTING: ASTM A 193 Gr. B8M CL.1 / ASTM A194 Gr.8M TEST CODE: ASME B31.3 HYDROSTATIC TEST PRESSURE (BARG):18 Model No.: SG-ZT41-208[Flapper Type] 1 1/2"Inch/DN40; CF3M Body&Cap&Flange&Flapper; ASTM A194 Gr.8M Bolts&Nuts; 304SS Graphite Gaskets; Borosilicate Glass(≤18Bar); Approximate Weight:9Kg/Pce |
| TAG NO.: 2-SP-42601 |
TYPE: Straight Way SERVICE: UREA AMMONIUM SULPHATE PHASE: LIQUID RATING: 150#, ENDING: FLANGED (ASMEB16.5), FACING: RF, SIZE: 2” OPERATING PRESSURE (BARG): -0.624 OPERATING TEMPERATURE (°C): 135 DESIGN PRESSURE (BARG): 5.06/FV DESIGN TEMPERATURE (°C): 180 DENSITY(Kg/M³): 1229, VISCOSITY (cp): 1.864 FLOW RATE (M³/hr.): 3.85 PATTERN: TURBULNET FLOW BODY: ASTM A182 Gr. F316L/A351 GR.CF3M-BC09 GLASSES: BOROSILICATE FLANGE: ASTM A182 Gr. F316L/A351 GR.CF3M-BC09 COVER GASKET: FLEX. GRAPH. Wt. AISI304SS/316SS INS COVER BOLTTING: ASTM A193 Gr.B8M CL.1/ ASTM A194 Gr.8MA TEST CODE: ASME B31.3 HYDROSTATIC TEST PRESSURE (BARG): Model No.: SG-FQ41-206[Float Type] 2"Inch/DN50; CF3MBody&Cap&Flange; ASTM A194Gr.8M Bolts&Nuts; 304SS Graphite Gaskets; Borosilicate Glass(≤18Bar); Approximate Weight:11Kg/Pce |
| TAG NO.: 2-SP-42602 |
TYPE: Straight Way SERVICE: UREA MELT /SOLUTION, PHASE: LIQUID RATING: 150#, ENDING: FLANGED (ASME B16.5), FACING: RF, SIZE: 8” OPERATING PRESSURE (BARG): -0.754 OPERATING TEMPERATURE (°C): 140 DESIGN PRESSURE (BARG): 5.8/FV DESIGN TEMPERATURE (°C): 180 DENSITY(Kg/M³): 1220, VISCOSITY (cp): 2.23, FLOW RATE (M³/hr.): 69 FLOW PATTERN: TURBULNET FLOW BODY: ASTM A182 Gr. F316L/A351GR.CF3M-BB01 GLASSES: BOROSILICATE FLANGE: ASTM A182 Gr. F304L-BB01 COVER GASKET: FLEX. GRAPH. Wt. AISI 304SS/316SS INS COVER BOLTTING: ASTM A 193 Gr. B8M CL.1 / ASTM A194 Gr.8M TEST CODE: ASME B31.3 HYDROSTATIC TEST PRESSURE (BARG): 8.7 Model No.: SG-FQ41-206[Float Type] 8"Inch/DN200; CF3M Body&Cap&Flange; ASTM A194 Gr.8MBolts&Nuts; 304SS Graphite Gaskets; Borosilicate Glass(≤10Bar); Approximate Weight:90Kg/Pce |
