Product Details:
|
| Warranty: | 6 Months | Weight (KG): | 40 |
|---|---|---|---|
| Condition: | New | Machine Type: | Hydraulic Elevator |
| Material: | Stainless Steel | Processing Type: | Forging |
| High Light: | Hydraulic Elevator Tubular Handling Tools,Drill Pipe Casing Tubing Hydraulic Elevator,Drilling Rig Tubular Handling Tools |
||
Tubular Handling Tools API Drill Pipe Casing Tubing Hydraulic Elevator

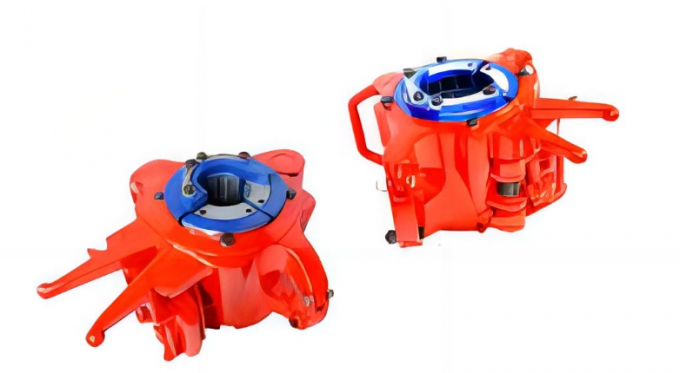

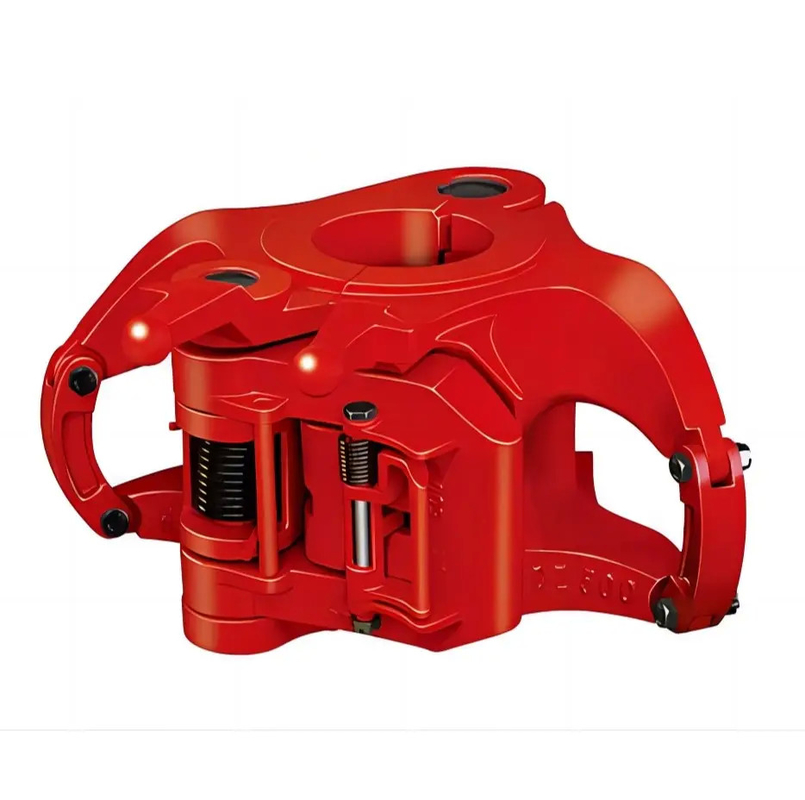

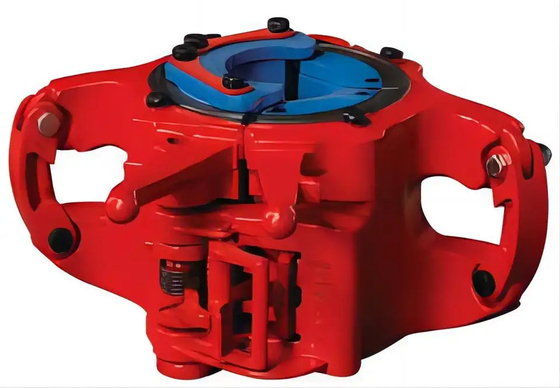

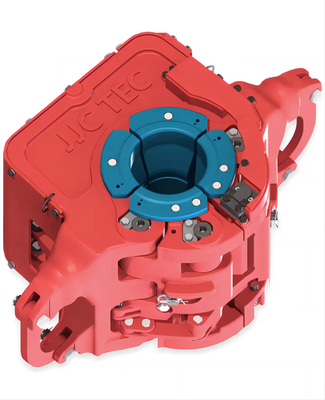

Hydraulic elevator type DDZH is a center latch elevator. Through changing the bushing, it can handle drill pipes, drill collars, casings and tubings,. By using the hydraulic-controlled system, it can make the operation more convenient, reduce the workers’ labor intensity effectively and improve work efficiency. It can also realize remote controlling and make the using safer and more reliable. The products shall be designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment.

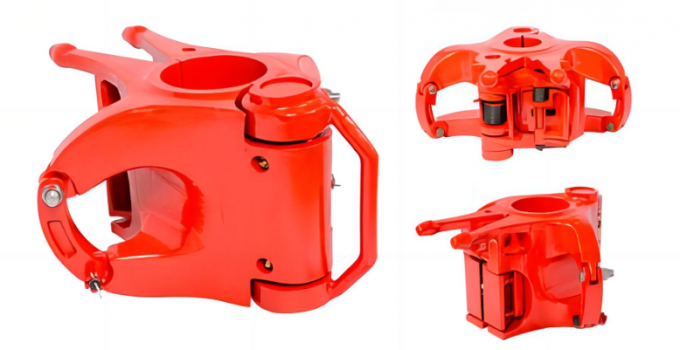

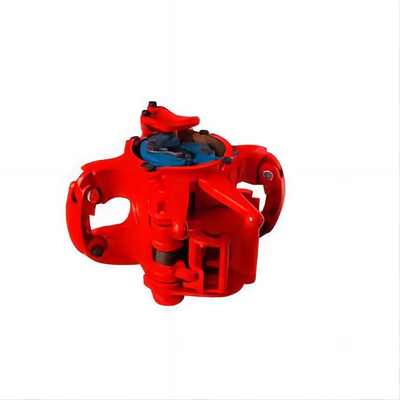

Y-type slip crane is a tool used to hold and lift drill pipe, casing and tubing during drilling and workover. It is especially suitable for lifting integral joint tubing, non-collar casing and electric submersible pump string. The crane is designed and manufactured according to API Spec 8C "Drilling and Oil Production Lifting Equipment".
| Type |
Tube Diameter in |
Load Rating KN |
| HYT | 2-3/8″~ 3-1/2″ | 150 |
| YT | 1.315″~ 3-1/2″ | 75 |
| MYT | 1.315″~ 2-7/8″ | 40 |
| LYT | 1.05″~ 1-1/16″ | 20 |
| HYC | 3-1/2″~ 7-5/8″ | 200 |
| MYC | 3-1/2″~ 7″ | 125 |
| YC | 3-1/2″~ 7″ | 75 |

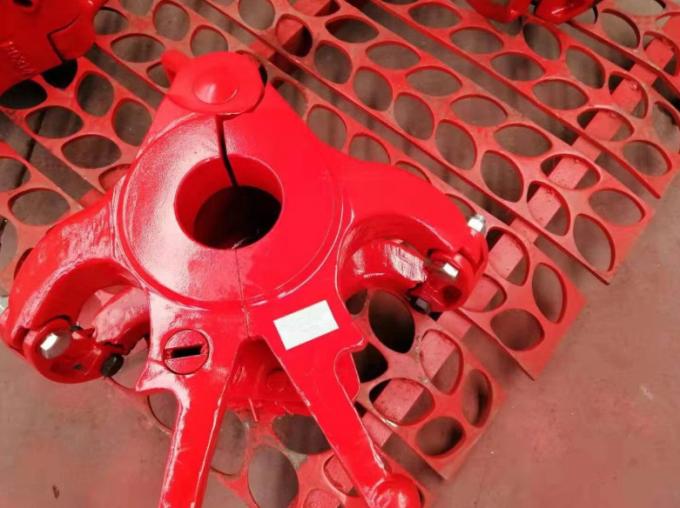

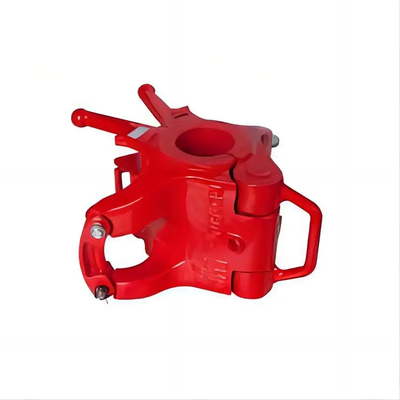

DD type hanging card
DD Series hoist is a conventional platform shoulder open hoist used to hang drill pipe, casing and tubing.
Rated load: 150-350 tons
Clamping pipe diameter: 2-3/8 "~ 5-1/2"
Designed and manufactured in accordance with API Spec 8C for Drilling and Production Lifting Equipment.
2.DDZ hanging card
DDZ SERIES CRANE IS open taper crane, suitable for lifting 18 degrees cone shoulder drill pipe, drilling tools, etc.
Rated load: 100 tons -750 tons
Clamping pipe diameter: 2-3/8 "~ 6-5/8"
Designed and manufactured in accordance with API Spec 8C for Drilling and Production Lifting Equipment.

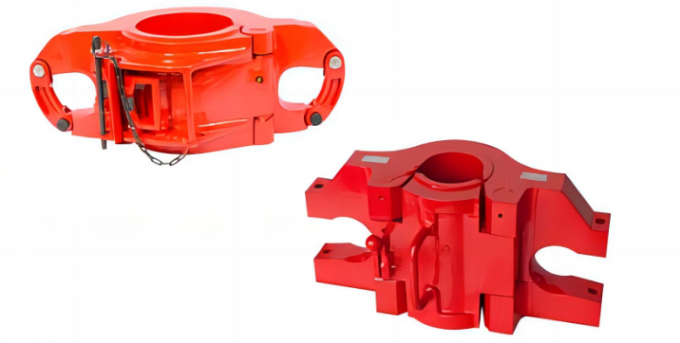

CD type hanging card
The CD side-open hoist is an essential tool for lifting drill pipe, casing, tubing, and drill collars during drilling and workover trips.
Rated load :150 tons ~750 tons
Clamping pipe diameter :2-3/8 "~ 20"
Designed and manufactured in accordance with API Spec 8C for Drilling and Production Lifting Equipment.
2.CDZ hanging card
CDZ tapered drill pipe crane, suitable for lifting 18° tapered shoulder drill pipe, drilling tools, etc.
Rated load :100 tons ~500 tons
Clamping pipe diameter :2-3/8 "~5-1/2"
Designed and manufactured in accordance with API Spec 8C for Drilling and Production Lifting Equipment.
