Product Details:
|
| Warranty Of Core Components: | 1 Year | Core Components: | Gear |
|---|---|---|---|
| Condition: | New | Power Type: | Diesel |
| Voltage: | 220 | Key Words: | SL450 Swivel For Oil Drilling Rig |
| High Light: | Swivel Oil Well Drilling Rig,Oil Well Drilling Rig SL135,Hoisting Equipment Drilling Rig |
||
Hoisting Equipment Oil Well Drilling Rig SL135 SL170 SL225 SL450 Swivel
Product Description:

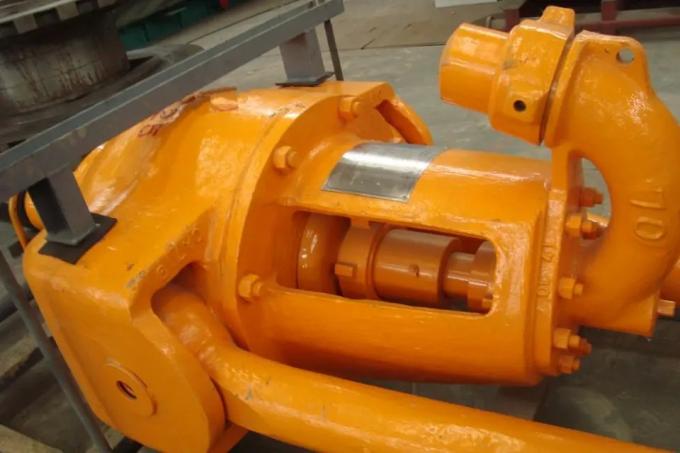

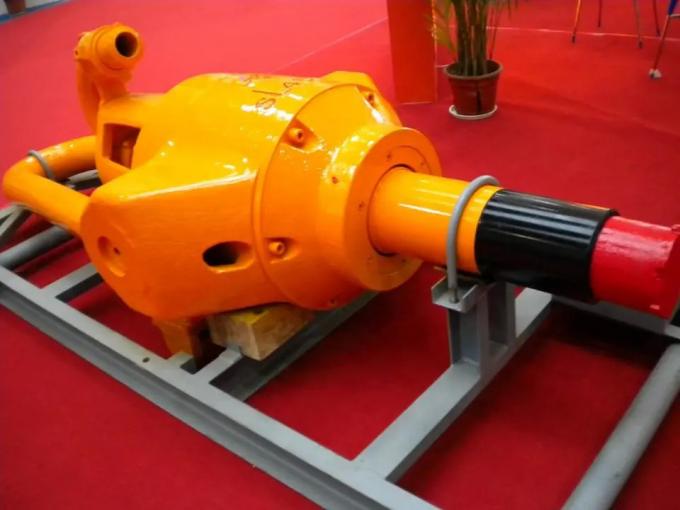

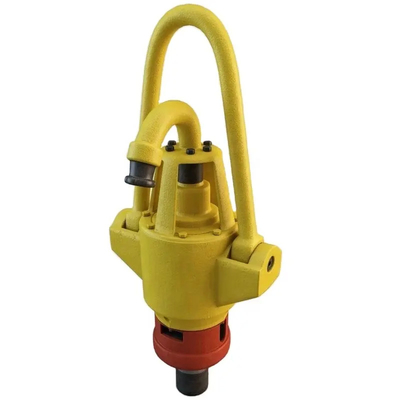

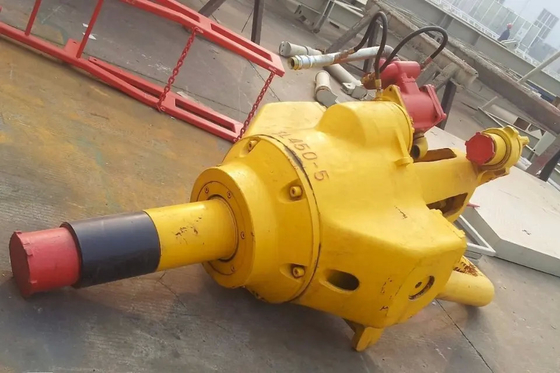

The water swivel includes two main categories, which are common swivel and double duty swivel. Double duty swivel is a common swivel combined with a spinner. Common swivel consists of swivel bail, shell, support, gooseneck, central pipe, master bearing, joint and other parts. The lower end is connected with kelly stem by REG thread. The water swivel bail is hung on the hook.
Gooseneck and rotary hose can be connected by REG thread connection or union connection.

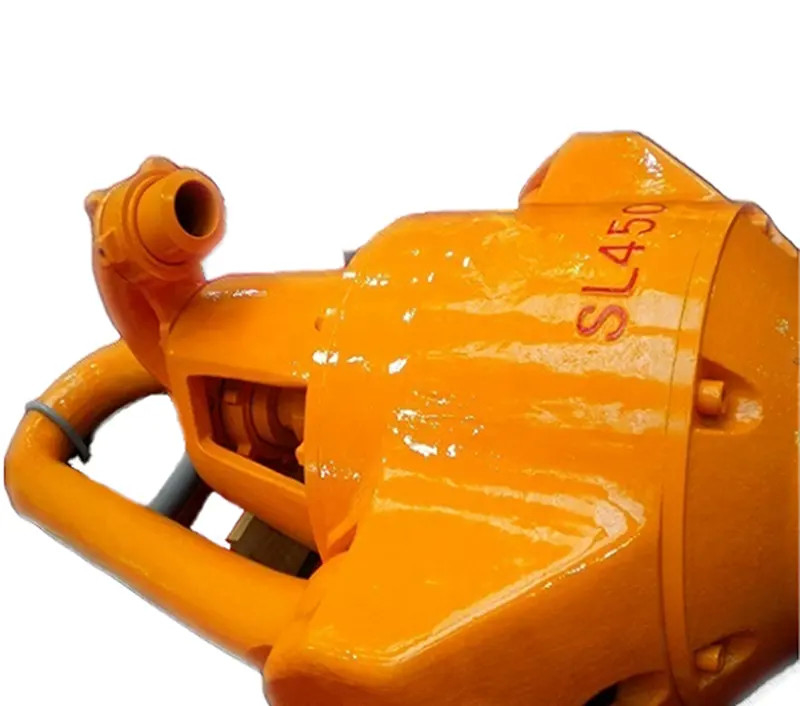

Feature for SL450API 8A Swivel drilling
1,Equipped with standard bails.
2,The wash pipe and packing assembly are cartridge type and can be replaced on the floor without disconnecting the rotary hose and/or gooseneck..
3,The gooseneck is provided with a outlet for wire line logging.
4,Equipped with 4API hose connection.
5,The Swivels conform to API specification 8A and API monogram can be used.
Main Parameter:
| Model | SL135 | SL160 | SL170 | SL225 | SL315 | XSL450 | |
| Max. Static Load | kN | 1350 | 1600 | 1700 | 2250 | 3150 | 4500 |
| Uston | 150 | 180 | 190 | 250 | 350 | 500 | |
| Dynamic Load Rating | kN | 1000 | 1200 | 1300 | 1600 | 2200 | 3200 |
| Uston | 110 | 135 | 145 | 180 | 250 | 360 | |
| Max.speed | rpm | 300 | 300 | 300 | 300 | 300 | 300 |
| Mpa | 35 | 35 | 35 | 35 | 35 | 35 | |
| Max.Pressure | psi | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| mm | 64 | 64 | 64 | 75 | 75 | 75 | |
| Bore Size of Central Pipe | in | 2.52 | 2.52 | 2.52 | 3 | 3 | 3 |
| Thread of Drilling Hose | 4 LP | 4 LP | 4 LP | 4 LP | 4 LP | 4 LP | |
| Sub Connection | 6 5/8 REG-LH | 6 5/8 REG-LH | 6 5/8 REG-LH | 6 5/8 REG-LH | 6 5/8 REG-LH | 6 5/8 REG-LH | |
| Size | mm | 2280*680*590 | 2280*680*590 | 2250*820*835 | 2800*980*790 | 3015*1096*830 | 3015*1096*830 |
| in | 90*27*23 | 90*27*23 | 100*32*33 | 110*39*31 | 119*43*33 | 119*43*33 | |
| Weight | kg | 1500 | 1500 | 1782 | 2500 | 2700 | 2700 |
| lb | 3307 | 3307 | 3928 | 5512 | 5950 | 5950 |
FAQ:
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
