Product Details:
|
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Color: | Customized | Process: | Forging |
| High Light: | Drilling Rig Variable Piston Pump,PVP Series Variable Piston Pump |
||
Packer PVB PVP Series Variable Piston Pump
Product Description
Topland can supply PVP,PVB series Pump as following
For the PVP pump,all control is achieved by the proper positioning of the swash plate. This is achieved by a servo piston acting on one end of the swash plate working against the combined effect of the off-setting forces of the pistons and centering spring on the other end. The control spool acts as a metering valve which varies the pressure behind the servo piston.

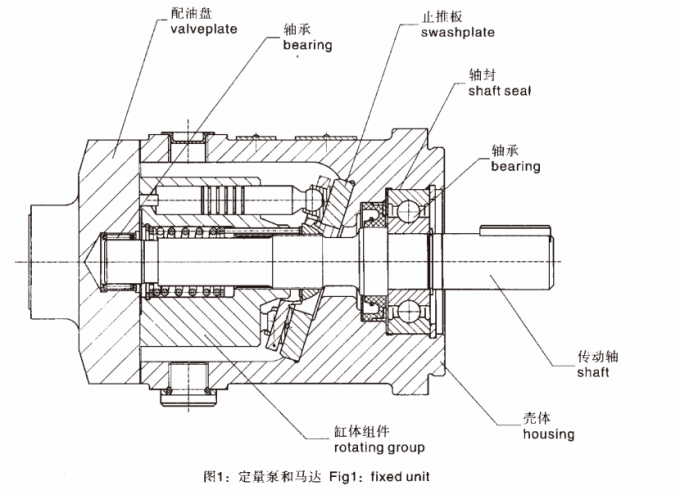

PVB series units are of inline thru shaft with swash plate axial piston type. Its main components are the housing drive shaft rotating group ,swashplate and valve plate. The pressure compensated variable displacement units as shown in fig. 2 incorporate a displ. control piston which governs the angle of the swash plate and consequently contorls the stroke length of the 9 pistons as they rotate with the cylinder block and drive shaft. The pressure compensator differs in structure for different control type units.
Technical Parameter for PVP Pump:
|
Pump Model |
Displacement cc/rev (In3/rev) |
Pump Delivery @ 21 bar (300 PSI) in LPM (GPM) |
Input Power A 1800 RPM, Max. Displacement & 248 bar (3600 PSI) |
Operating Speed (RPM) (Maximum) |
Pressure bar (PSI) Continuous (Maximum) |
||
| 1200 RPM | 1800 RPM | ||||||
| PVP16 | 16 | (.98) | 19.7 (5.2) | 29.5 (7.8) | 13.1 kw (17.5 hp) | 3000 | 248 (3600) |
| PVP23 | 23 | (1.4) | 28.0 (7.4) | 42.0 (11.1) | 19.7 kw (26.5 hp) | 3000 | 248 (3600) |
| PVP33 | 33 | (2.0) | 39.4 (10.4) | 59.0 (15.6) | 27.2 kw (36.5 hp) | 3000 | 248 (3600) |
| PVP41 | 41 | (2.5) | 49.2 (13.0) | 73.8 (19.5) | 33.2 kw (44.5 hp) | 2800 | 248 (3600) |
| PVP48 | 48 | (2.9) | 57.6 (15.2) | 86.4 (22.8) | 40.3 kw (54.0 hp) | 2400 | 248 (3600) |

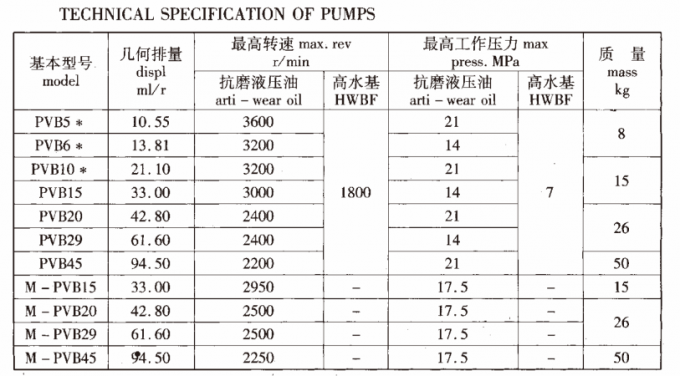

Technicial Parameter for PVB Pump:
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
