Product Details:
|
| Product Name: | Oilfields Mud Pump Roller Chain | ISO Chain No.: | 24S-6 |
|---|---|---|---|
| Model: | RC-120-6 | Standard: | GB3638 |
| Pitch: | 38.1mm | Structure: | Roller Type |
| Material: | Alloy Steel | Function: | Transmission Chain |
| High Light: | Drilling Rig Oilfield Chain,Oilfield Transmission Conveyor Roller Chain,Alloy Steel Conveyor Roller Chain |
||

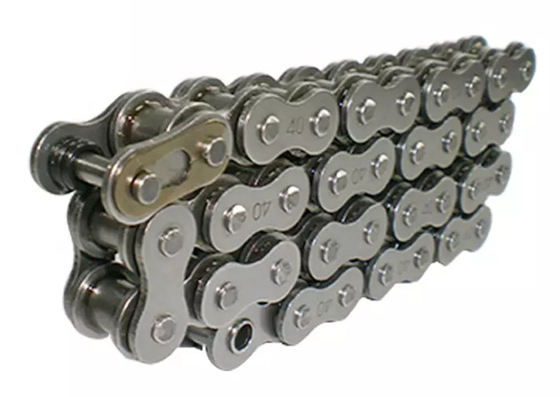

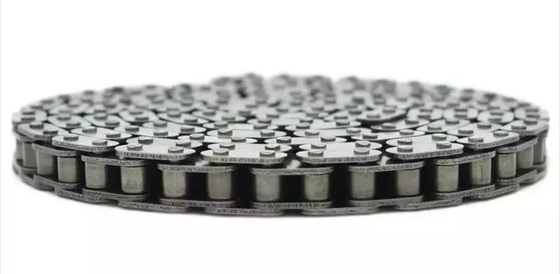

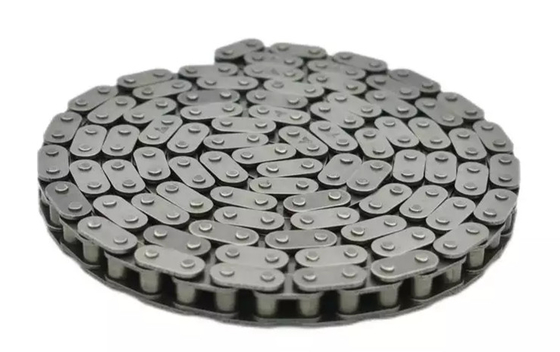

Oilfield Transmission Conveyor Roller Chain
Oil Field Chains are used for oil-field drilling and producing operations such as mud pump drives, engine compounds, tubular and casing draw works input, transmission drives, camshafts, low and high drum, rotary countershafts, and rotary tables. These chains are also used in mining, logging and ball mill applications. Safety and reliability is paramount for oil field chains.

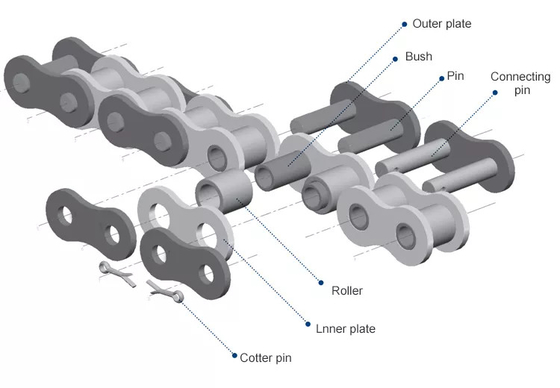

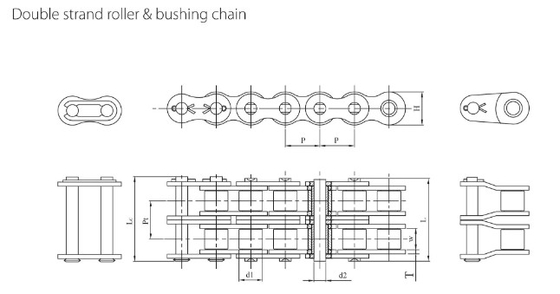

| ISO Chain No | ANSI Chiain No |
Chain No | Pitch | Roller Link Width | Roller Outer Diameter | Pin Outer Diameter |
Pin length |
Link Plate Height |
Link Plate Thickness |
Minimum Tensile Strength | Average Tensile Strength | Allowed load | Transverse Pitch |
|
| p | W min |
d1(max) | d2(max) | L max |
Lc max |
H max |
T | min | max | Pt | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | kgf | kgf | kgf | mm | |||
| 04C-2 | 25-2 | 25-2 | 6.35 | 3.10 | 3.30 | 2.31 | 14.5 | 15.20 | 6.02 | 0.75 | 720 | 860 | 110 | 6.40 |
| 06C-2 | 35-2 | 35-2 | 9.525 | 4.68 | 5.08 | 3.60 | 22.80 | 23.70 | 9.05 | 1.15 | 1620 | 2200 | 370 | 10.13 |
| 08A-2 | 40-2 | 40-2 | 12.70 | 7.85 | 7.92 | 3.98 | 32.30 | 36.20 | 12.07 | 1.50 | 2840 | 3900 | 630 | 14.38 |
| 10A-2 | 50-2 | 50-2 | 15.875 | 9.40 | 10.16 | 5.09 | 39.90 | 44.0 | 15.09 | 2.0 | 4450 | 6200 | 1100 | 18.11 |
| 12A-2 | 60-2 | 60-2 | 19.05 | 12.57 | 11.91 | 5.96 | 49.80 | 54.40 | 18.10 | 2.35 | 6400 | 8400 | 1530 | 22.78 |
| 16A-2 | 80-2 | 80-2 | 25.40 | 15.75 | 15.88 | 7.94 | 62.70 | 68.10 | 24.13 | 3.20 | 11360 | 15000 | 2550 | 29.29 |
| 20A-2 | 100-2 | 100-2 | 31.75 | 18.90 | 19.05 | 9.54 | 77.0 | 83.10 | 30.17 | 4.0 | 17760 | 24200 | 3900 | 35.76 |
| 24A-2 | 120-2 | 120-2 | 38.10 | 25.22 | 22.23 | 11.11 | 96.30 | 102.9 | 36.20 | 4.70 | 25540 | 32000 | 5250 | 45.44 |
| 28A-2 | 140-2 | 140-2 | 44.45 | 25.22 | 25.40 | 12.71 | 103.60 | 111.0 | 42.23 | 5.50 | 34760 | 42000 | 6970 | 48.87 |
| 32A-2 | 160-2 | 160-2 | 50.80 | 31.55 | 28.58 | 14.29 | 124.20 | 132.10 | 48.26 | 6.40 | 45600 | 60000 | 9150 | 58.55 |
| 40A-2 | 200-2 | 200-2 | 63.50 | 37.85 | 39.68 | 19.85 | 151.90 | 162.10 | 60.33 | 8.0 | 70920 | 92000 | 12400 | 71.55 |
| 48A-2 | 240-2 | 240-2 | 76.20 | 47.35 | 47.63 | 23.81 | 183.40 | 193.90 | 72.39 | 9.50 | 106220 | 135000 | 17150 | 87.83 |
Data sheet for RC-120-6
| China NO. |
GB Chiain No | Pitch | Roller | Inner width of | Pin | Plate | Plate | Array | Pin length | Tensile | Weight/m |
| ISO Chain No | Diameter | inner link | diameter | thickeness | height | Pitch | load | ||||
| p | d1(max) | b1(max) | d2(max) | h1 | h2 | pt | b2 | min | q | ||
| 80GA-1 | 16S-1 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 36.2 | 55.6 | 2.84 |
| 80GA-2 | 16S-2 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 65.5 | 111.2 | 5.54 |
| 80GA-3 | 16S-3 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 94.8 | 166.8 | 8.23 |
| 80GA-4 | 16S-4 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 124.1 | 222.4 | 10.93 |
| 80GA-5 | 16S-5 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 153.4 | 278 | 13.63 |
| 80GA-6 | 16S-6 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 182.6 | 333.6 | 16.32 |
| 80GA-8 | 16S-8 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 241.2 | 444.8 | 21.72 |
| 100GA-1 | 20S-1 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | - | 43.6 | 86.74 | 4.25 |
| 100GA-2 | 20S-2 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 79.3 | 173.48 | 8.31 |
| 100GA-3 | 20S-3 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 115.1 | 260.22 | 12.36 |
| 100GA-4 | 20S-4 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 150.8 | 346.96 | 16.41 |
| 100GA-5 | 20S-5 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 186 | 433.7 | 20.47 |
| 100GA-6 | 20S-6 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 222.4 | 520.44 | 24.52 |
| 100GA-8 | 20S-8 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 293.9 | 693.92 | 32.63 |
| 120GA-1 | 24S-1 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | - | 54.1 | 125.1 | 6.81 |
| 120GA-10 | 24S-10 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45 | 463.1 | 125.1 | 59.63 |
| 120GA-1 | 24S-2 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 99.6 | 250.2 | 12.12 |
| 120GA-3 | 24S-3 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 145.5 | 375.3 | 18.06 |
| 120GA-4 | 24S-4 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 190 | 500.4 | 23.99 |
| 120GA-5 | 24S-5 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 235.9 | 625.9 | 29.23 |
| 120GA-6 | 24S-6 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 281.3 | 750.6 | 35.87 |
| 120GA-7 | 24S-7 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 326.7 | 875 | 41.82 |
| 120GA-8 | 24S-8 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 372.2 | 1000.8 | 59.63 |
| 140GA-2 | 28S-1 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | - | 58.4 | 170.27 | 7.91 |
| 140GA-10 | 28S-10 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 498.2 | 1702.7 | 76.81 |
| 140GA-2 | 28S-2 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 107.2 | 340.54 | 15.6 |
| 140GA-3 | 28S-3 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 156.1 | 510.81 | 23.25 |
| 140GA-4 | 28S-4 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.7 | 1021.62 | 46.2 |
| 140GA-5 | 28S-5 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 253.9 | 851.35 | 38.55 |
| 140GA-6 | 28S-6 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.7 | 1021.62 | 46.2 |
| 140GA-8 | 28S-8 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 400.5 | 1362.16 | 61.5 |
| 160GA-1 | 32S-1 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | - | 69 | 222.4 | 10.47 |
| 160GA-2 | 32S-2 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 127.5 | 444.8 | 20.65 |
| 160GA-3 | 32S-3 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 186.1 | 667.2 | 30.82 |
| 160GA-4 | 32S-4 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 244.6 | 889.6 | 40.99 |
| 160GA-5 | 32S-5 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 303.2 | 111.2 | 51.6 |
| 160GA-6 | 32S-6 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 361.7 | 1334.4 | 61.33 |
| 160GA-8 | 32S-8 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 478.8 | 1779.2 | 81.68 |
| 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 180GA-2 | 36S-2 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 143.6 | 560.5 | 27.88 |
| 180GA-3 | 36S-3 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 209.4 | 840.7 | 41.62 |
| 180GA-4 | 36S-4 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 275.3 | 1121 | 55.36 |
| 200GA-1 | 40S-1 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | - | 84.5 | 347.5 | 17.35 |
| 240GA-2 | 40S-2 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 156 | 695 | 34.14 |
| 200GA-3 | 40S-3 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 227.6 | 1042.5 | 50.94 |
| 200GA-4 | 40S-4 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 299.1 | 1390 | 67.73 |
| 240GA-1 | 48S-1 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | - | 102.2 | 500.4 | 25.2 |
| 240GA-2 | 48S-2 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 190.1 | 1000.8 | 49.81 |
| 240GA-3 | 48S-3 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 277.9 | 1501.2 | 74.43 |
| 240GA-4 | 48S-4 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 365.7 | 2001.6 | 99.04 |
Material: 40Mn, 45Mn,40Cr, SS304, SS316, SS201.
