Product Details:
|
| Product Name: | Crown Pulley Block | Condition: | New |
|---|---|---|---|
| Usage: | Crown Pulley Block | HS Code: | 8431431000 |
| Dimension: | 1500*1500*900mm | Work Temperature: | -60-150℃ |
| High Light: | Crown Wire Rope Pulley,Wire Rope Sheave API 8C,Drilling Rig Forged Wire Rope Pulley | ||
Pulley Block Description of Drilling Rig Spare Parts:

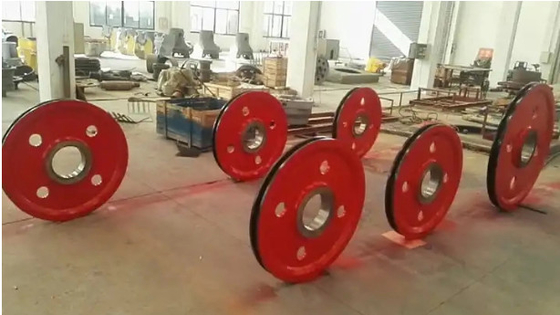

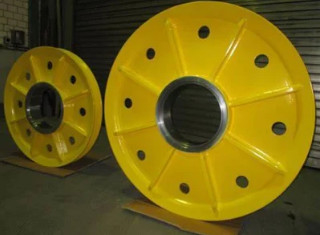

Roll-Forged Sheaves are available in many configurations in order to meet various oilfield applications.
• Roll-Forged™ sheaves are available in sizes up to 78” in diameter.
• Applications should provide for tightening separator plates against bearing cones to adjust and insure proper function of bearing.

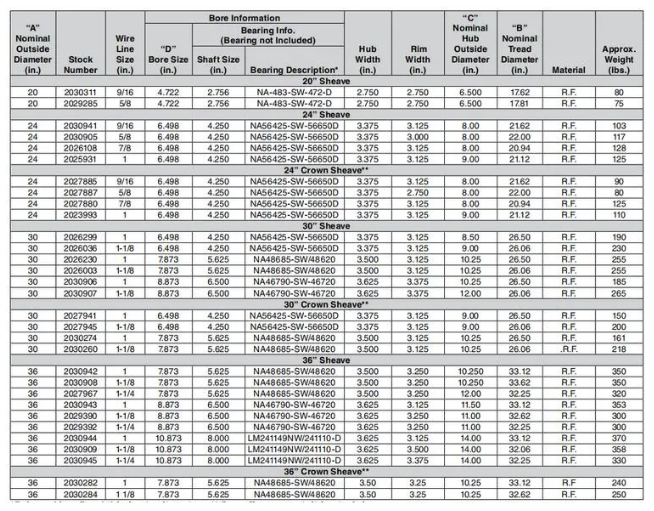

• Each sheave in the table below has a machined bore sized to accept the respective bearing number shown.
• The sheaves are provided from the factory plain bore (the bearings are not included).
The crown block consists of crown basement, fast-line sheave, dead-line sheave, main sheave, sand-line sheave, drilling line protector and sheaves for hydraulic and air winch, bumper wood for the Crown-O-Matic and guardrail. It's designed with closed type and open type. The traveling system is divided into 7×6, 6×5, 5×4, and 4×3, which fit to Φ7/8"~Φ1 1/2" drilling lines. The sheave groove conforms to the requirements of API RP 9B. The sheave groove surface is processed with a quenching treatment. The bearing adopts centralized lubrication for convenient operation.
| Crown Block Sheave Technical Parameters | ||||
| Model | TC225 | TC315 | TC450 | |
| Parameters | ||||
| Max.Hook Load kN(lbf) | 2250 (505800) | 3150(708200) | 4500(1011600) | |
| Qty. And OD of Sheave mm(in) | (5+1) | (6+1) | (6+1) | |
| 1120(44) | 1270(50) | 1524(60) | ||
| OD of Guiding Sheave mm(in) | 1270(500) | 1524(60) | 1524(60) | |
| Dia. Of Wirerope mm(in) | 32(1 1/4) | 35(1 3/8) | 38(1 1/2 ) | |
| Overall Dimensions mm(in) | Length | 3200(126) | 3295(129.7) | 3305(1300) |
| Width | ||||
| Height | 3135(123.4) | 3700(145.7) | 3760(148) | |
| Weight kg(lbs) | 5764(12707.3) | 7980(17592.9) | 10600(23369) | |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
