Product Details:
|
| Product Name: | Fitting Thread FIG 1502 Hammer Union | Size: | 1-6 Inch |
|---|---|---|---|
| Processing: | Forged | Max Pressure: | 15000psi |
| Usage: | Oil Gas Water Industrial | Connection: | Male / Female |
| Standard: | Metric | Material: | Cast Steel Or Customerized |
| High Light: | Thread FIG 1502 Hammer Union, WECO Hammer Union, Male Female 1502 Hammer Union | ||

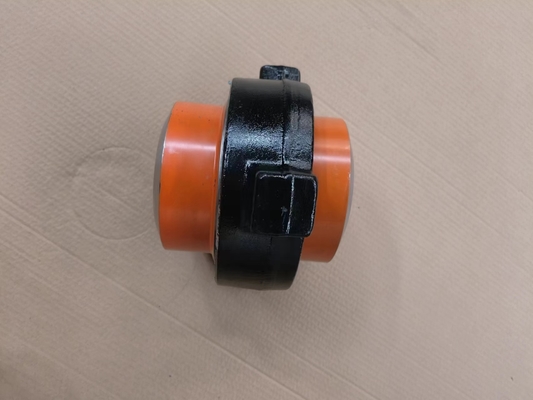

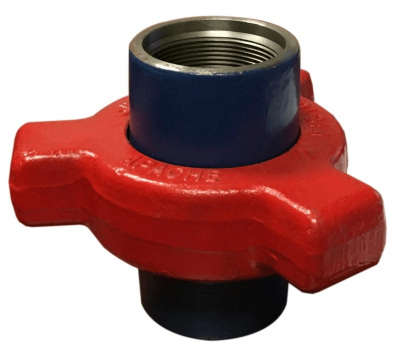

FIG 1502 Hammer Union WECO Male Female Fitting Thread
Topland can provide various hammer unions, including thread connection type, welding type and H2S service unions.
1"~4" and CWP of 1000Psi~20000Psi(7MPa~140MPa) unions are available.
| Model | Size | Model | Size |
| Fig 100 | 2", 3", 4", 6", 8" | Fig 600 | 1", 2" |
| Fig 200 | 1" , 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6" | Fig 602 | 1", 2", 3", 4" |
| Fig 206 | 1", 1 1/2", 2", 2 1/2", 3", 4", 6", 8" | Fig 607 | 2" |
| Fig 207 | 3", 4", 6" | Fig 1002 | 1", 2", 3", 4", 5", 6" |
| Fig 300 | 1", 2" | Fig 1003 | 3", 4", 5" |
| Fig 400 | 2", 3", 4" | Fig 1502 | 1 1/2", 2", 3" |
| Fig 402 | 2" | Fig 2002 | 2" |
For easy identification, unions with different pressure ratings will be painted in different colours, and there are evident marks indicating size, connecting mode and pressure ratings. The model of conventional union (thread connection): FIG100,FIG200,FIG206,FIG400,FIG402,FIG602,FIG1002,FIG1502;rated:1000psi(7MPa)~15000psi(105MPa).
The model of Welding Union: FIG20,FIG60, FIG1002,FIG1502,FIG2002;rated: 2000psi(14MPa)~20000psi(140MPa).
The model of H2S welding union: FIG602,FIG1002,FIG1502,FIG2202,Tr120×6,Tr150×6,Tr180×8;rated: 5000psi(35MPa)~15000psi(105MPa).
Reliable Sealing performance
Seal rings are made of quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect
connectors from erosion. Different pressures and applications have different sealing method.
Fast Installation
Wherever they are, wing nuts and rigid ACME will ensure quick installation or dismantling without special tools.
Highly Interchangeable
All unions are made in English system, and can be interchanged with products in international market. Seal rings are fully
interchangeable with SPM or FMC equivalent products; Marks of size and pressure in wing nuts are formed in die-forging model, same as international products.
Advanced Machining and Inspection Method
Spherical adapters machined by precision NC machine tools and LP thread machined by special cutting tools can ensure high sealing performance; Wing nuts machined by NC machines have high strength and load-bearing capacity; Welding materials and welding grooves conform to API 16C; Unions for sour gas environment are strictly manufactured to NACE-MR0175 and API RP-14E.
FAQ
1 Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,
PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
