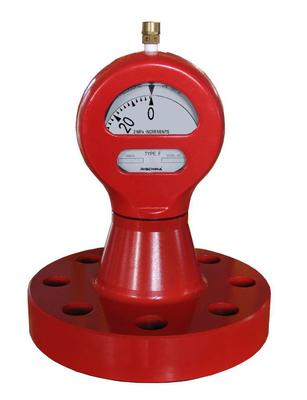

Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI

Drilling Instruments Mud Pump Pressure Gauge 6" Flange Type Model F Range 6000PSI

MUD PUMP PRESSURE GAUGES

Rugged standpipe-type gauges provide dependable, accurate pressure readings

Stand Pipe Gauges provide a quick, accurate display of pump pressure. Main applications are for standpipes and to be mounted on mud pumps. This style of gauge has been in service for many years and has proven to be a tough, dependable and reliable way to monitor pump pressure.

Features of MUD PUMP PRESSURE GAUGES

Interchangeable with Cameron type gauges

Temerature range -20 to 250(-29 to 121)

offering a multitude of sizes,pressure ranges and sub end conections

Sub end connections made from steel,stainless steel or bronze.

Dial ranges in PSI,BAR,KGC and KPA.

Model 8 gauges offer dual unit of measure.

Cases made with aluminum .

Sour gas and charpy available.

Flanged subs can have inconel or stainless steel inlays

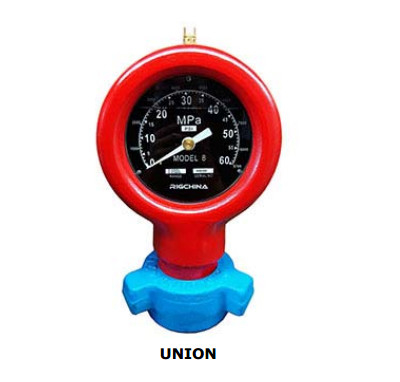

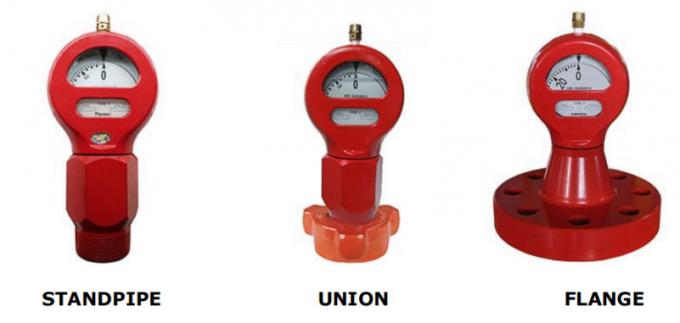

Hummer Union end and Flange connections.

Xylan coated high pressure adapters

Pressure plug on backside for safely.

Pressure range:

7MPa, 14MPa, 21MPa, 25MPa, 35MPa, 40MPa, 60MPa, 80MPa, 100MPa, 120Mpa,160MPa 1,000 PSI, 1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI, 15,000 PSI and 20,000PSI 70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar, 1,040 Bar and 1,400 Bar Temperature range: -50°F to 180°F

Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock

Heavy duty seals create watertight barrier around gauge mechanism

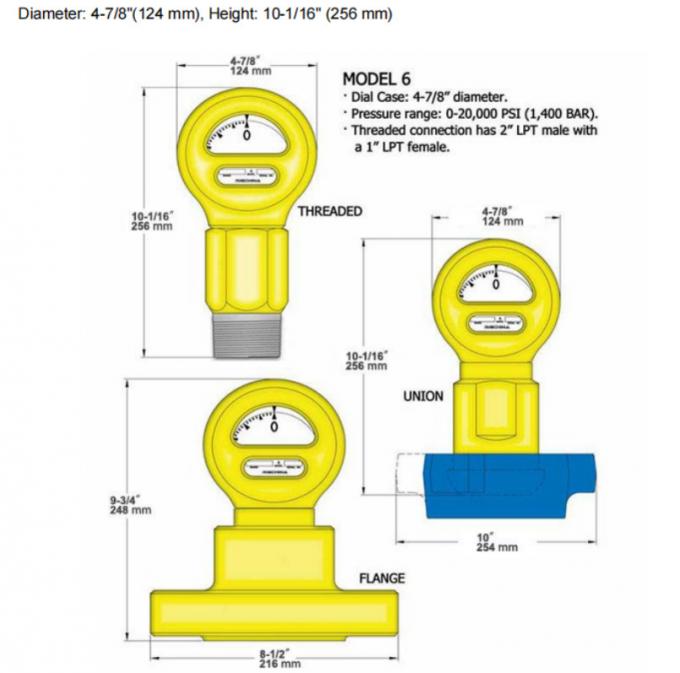

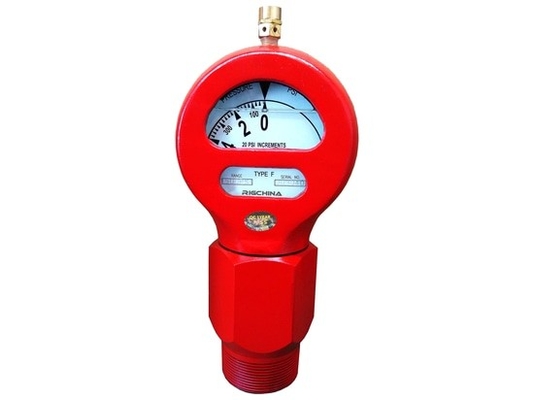

Combination threaded male 2" line pipe and threaded female 1" line pipe connection
