Product Details:
|
| Product Name: | Pressure Sensor | Usage: | Pressure Measurement |
|---|---|---|---|
| Type: | Sealed Gauge Pressure Sensor | Wetted Material: | 17-4PH Stainless Steel |
| Output: | 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V | Relative Humidity: | -20~85°C |
| Power Supply: | 0~100% RH | Ingress Protection: | IP67 |
| Impact Resistance: | About 50g/1ms | Accuracy: | 0.25%FS, 0.5%FS |
| High Light: | PPM-T293A Pressure Sensor,Hammer Union Drilling Equipment,Sealed Gauge Pressure Sensor |
||

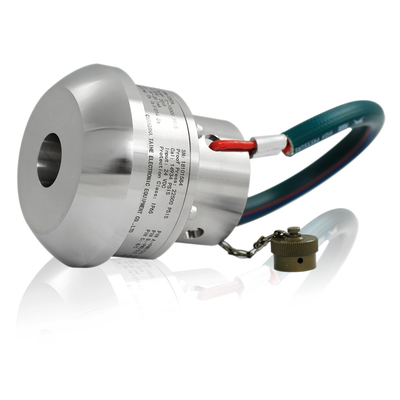

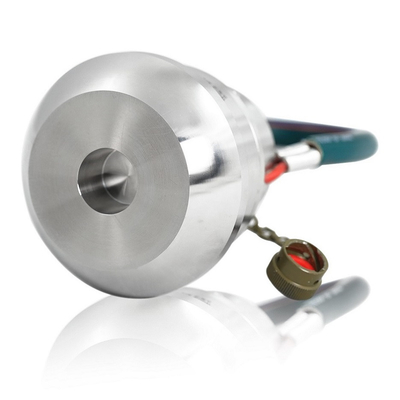

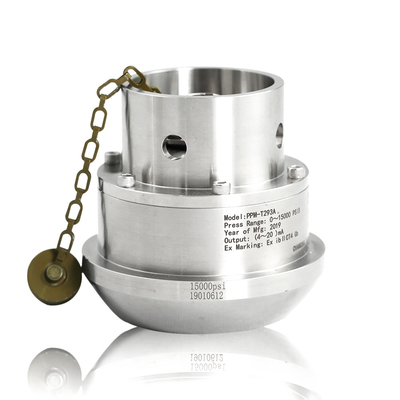

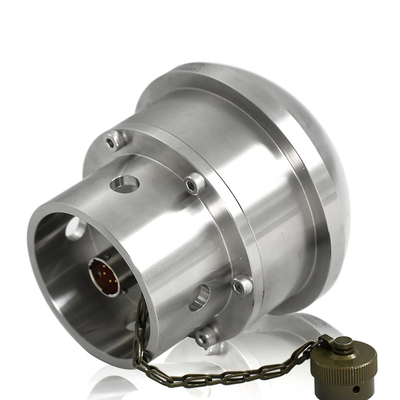

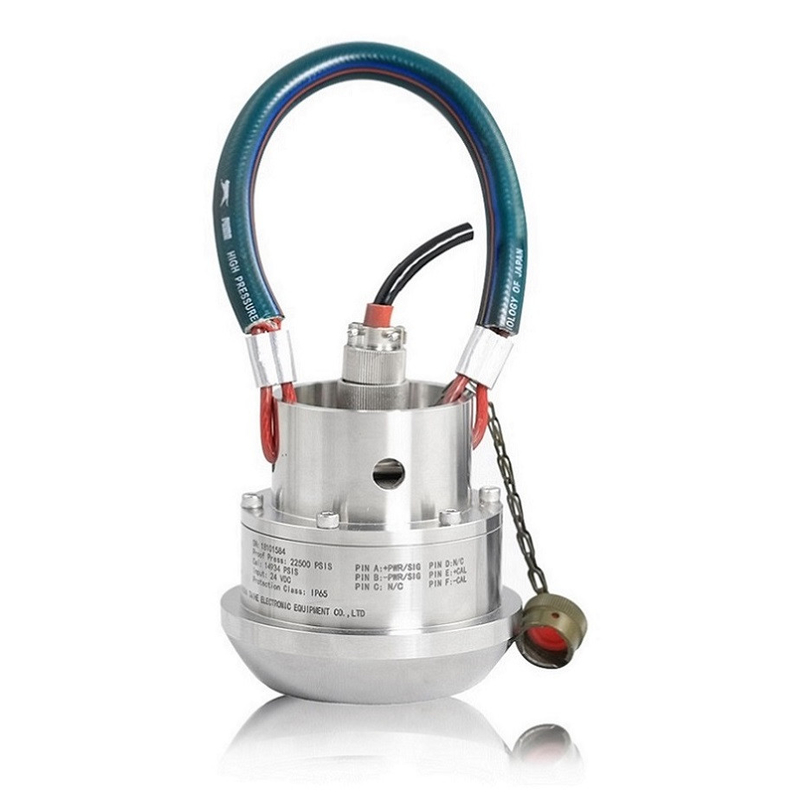

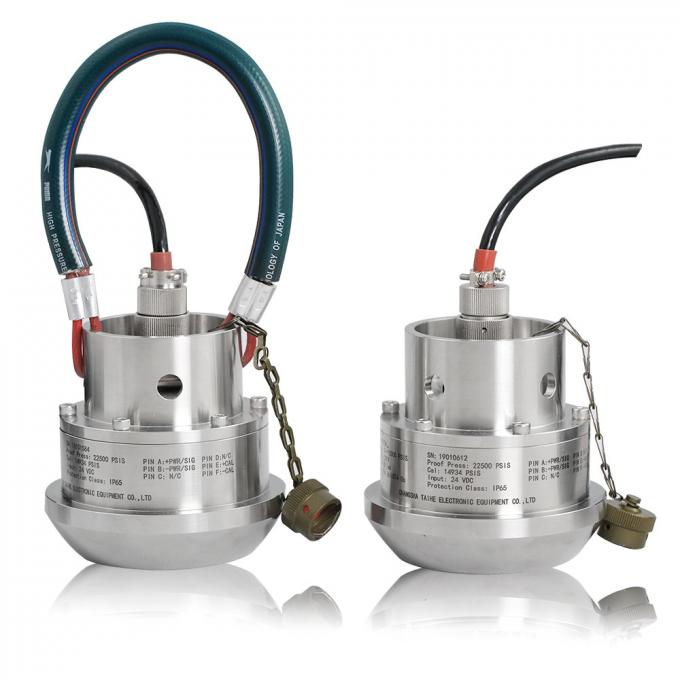

Oil Field PPM-T293A Pressure Sensor With Hammer Union Drilling Instruments
Pressure Sensor of Drilling Instruments
The Model PPM-T293 pressure transmitters have been designed specifacally for oil field application. These pressure transmitters provide different kinds of signal output, including 4-20mA, 1-5VDC, 0-10VDC etc. The model PPM-T293 has wide measuring ranges from 0…5000PSI to 0…45000 PSI, and it features fast dynamic response speed, high accuracy, strong anti-fatigue. The hammer union pressure fitting makes it easy to install and convenience to use at oil well driling and servicing.
Drilling Instruments - Pressure Sensor Features
1. High accuracy: 0.25%FS or 0.5%FS
2. Shock and vibration resistant
3. Pressure up to 45,000 PSI
4. Hammer Union pressure fitting
| Tested Media | Wet Soil,Oil,Corrosive liquidand gas |
| Pressure type | Gauge pressure(G), Sealed pressure(S), Vent Pressure(V) |
| Full Scale Pressure Range | 0~105MPa,150MPa,200MPa ,300MPa |
| Supply Voltage | 10-32VDC |
| Output Signal | 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V |
| Non-Linearity | 0.04%FS |
| Repeatability | 0.04%FS |
| Combined Accuracy | 0.1%FS,0.2%FS,0.5%FS Alternative |
| Long-Term Stability | 0.1%FS/Year (representative value) |
| Operating Temperature | -43~85ºC/125ºC |
| Compensated Temperature | -25~70ºC/100ºC |
| Response Time | ≤1mSec(representative value) |
| Insulation Resistance | ≥500 MΩ/100V |
| Safety overload pressure | 200%FS(2 Times Full Range, special: 5 Times Full Range) |
| Rupture pressure | 500%FS(5 Times Full Range, special: 10 Times Full Range) |
| Shock Limitation | About 10g/0~2000HZ |
| Impact Resistance | About 50g/1ms |
| Connection | Chuck type seal or specified |
| Wetted Materials | 17-4PH stainless steel |
| Relatvie Humidity | 0~100% RH |
| Degree of Protection | IP67 |

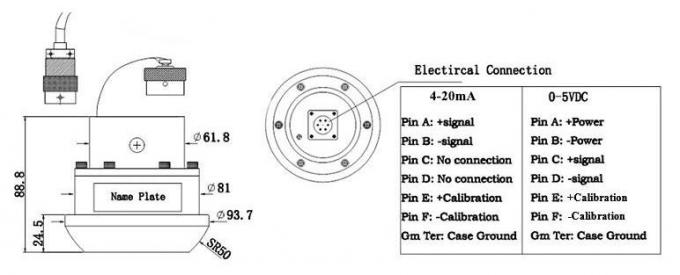

| Electrical Connection | Aviation connector |
