Hammer Union Pressure Gauges Oilfield Mud Pump Gauges Drilling Apparatus

Description
Product Name: Hammer Union Pressure Gauges Temperature: -50 - +60(℃)
Measuring Range: 25(MPa) Nominal Diameter: 200 Mm
Accuracy Class: 1.6% Connection Type: 2 Inch NPT
High Light:

Hammer Union mud pump gauges

,

2 inch NPT Drilling Apparatus

,

200 mm mud pump gauges

Hammer Union Pressure Gauges Drilling Instruments Oilfield Mud Pump Gauges

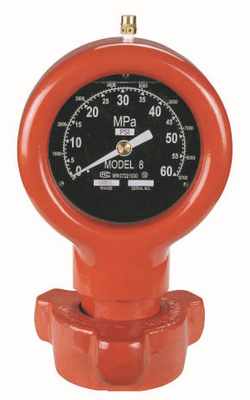

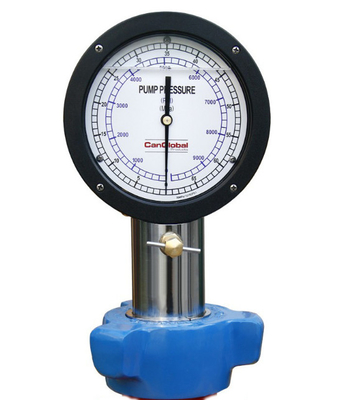

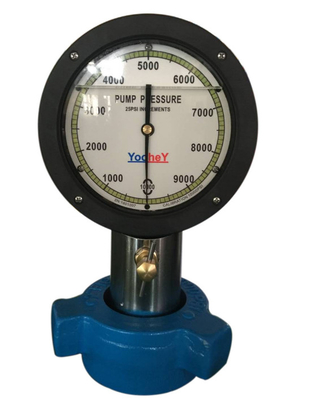

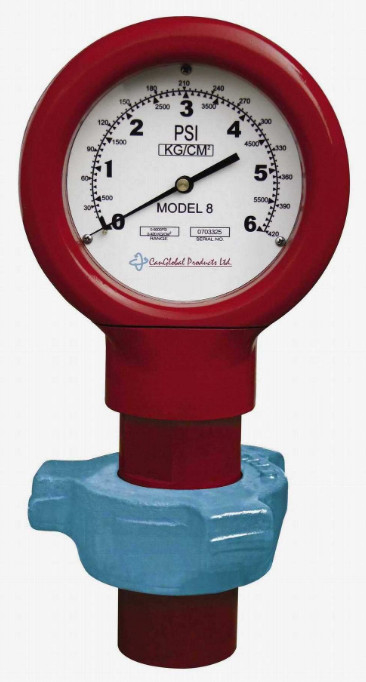

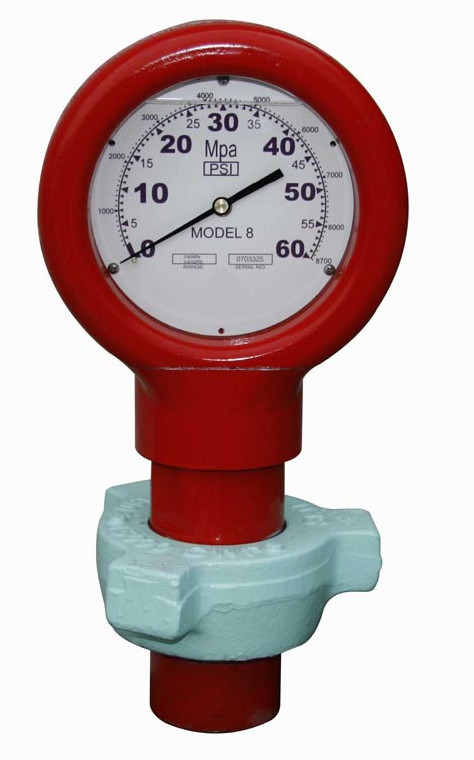

Hammer Union Pressure Gauge Description of Drilling Instruments

We offer hammer union pressure gauges that come standard with a 2 inch 1502 hammer union. Hammer union type shock-resistant pressure gauge, the gauge has good seismic performance, and the damping mechanism inside the gauge has a good damping effect on the pressure pulsation in the entire measurement range. The instrument has a stable indication under the measurement of severe pulsating pressure, and the dial diameter is large, which makes the long-distance observation reading clearer. Mainly used for mud pumps, standpipes and other equipment.



Drilling Instruments Hammer Union Pressure Features

- Internal dampening so no adjustments required
- Safer to use than conventional thread models
- Standard pressure ranges are 40MPa, 60MPa
- Also available in psi, kPa and bar capacities
- Clear polymer lens provides fast, accurate readings at a glance
- Liquid filled gauge minimizes vibration and wear to gauge movement
- Standard pressure range: 40MPa, 60MPa.
- Other pressure units: kPa, psi, bar
- Accuracy class: ±1.6%
- Working temperature: -50℃~+65℃
- Connection method: 2 inches 1502 union
- Product model: MODEL 8 and TYPE F-F

Hammer Union Pressure Gauges Oilfield Mud Pump Gauges Drilling Apparatus 0





Product Name Hammer Union Pressure Gauges
Model Model 8; TYPE F-F
Temperature -50 - +60(℃)
Color Red;Bule
Measuring range 25(MPa)
Nominal diameter 200mm
Accuracy class 1.6%
Standard API
Packing Standard export packing
Brand Topland
Origin China
Support OEM/ODM

Hammer Union Pressure Gauges Oilfield Mud Pump Gauges Drilling Apparatus 1Hammer Union Pressure Gauges Oilfield Mud Pump Gauges Drilling Apparatus 2

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.


2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.



4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-4. Order tracking service



5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.



6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.

Hammer Union Pressure Gauges Oilfield Mud Pump Gauges Drilling Apparatus 3
