Product Details:
|
| Product Name: | Mud Cleaner | Machine Type: | Solid Control System |
|---|---|---|---|
| Weight: | 3100 KG | Production Capacity: | 120(528GPM) |
| Dimension(L*W*H): | 2462x2042x1848 Mm | Working Pressure: | 0.15~0.3 MPa |
| Cut Size Of Desilter: | 20~40 Um Or 25~50 Um | Power Of Feed Pump: | 55 KW |
| High Light: | API solid control system,GNZJ Series Mud Cleaner,55 kW solid control system |
||

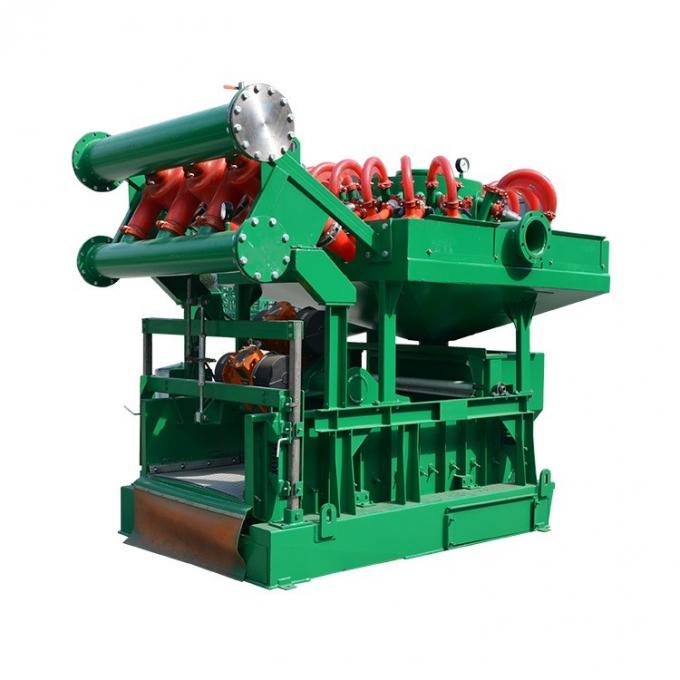

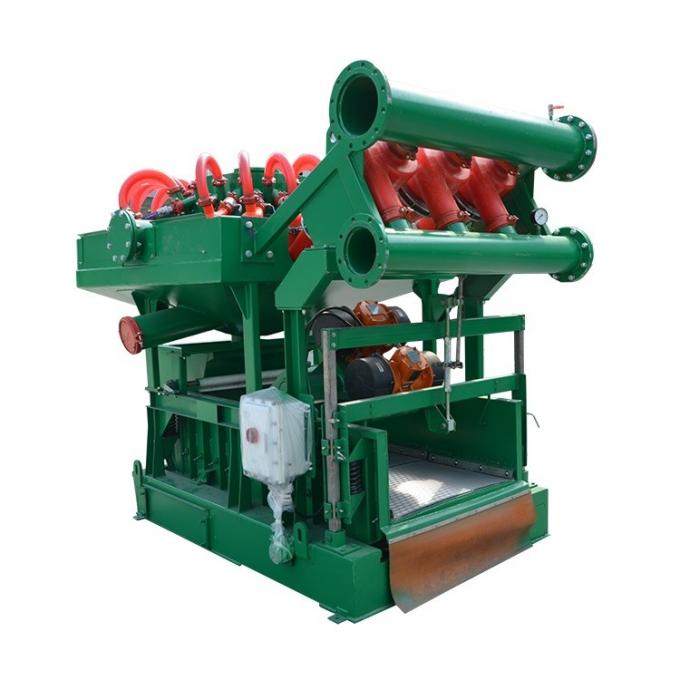

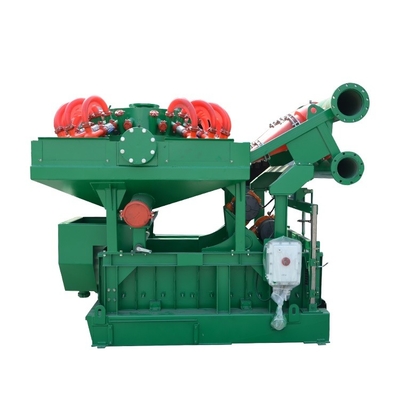

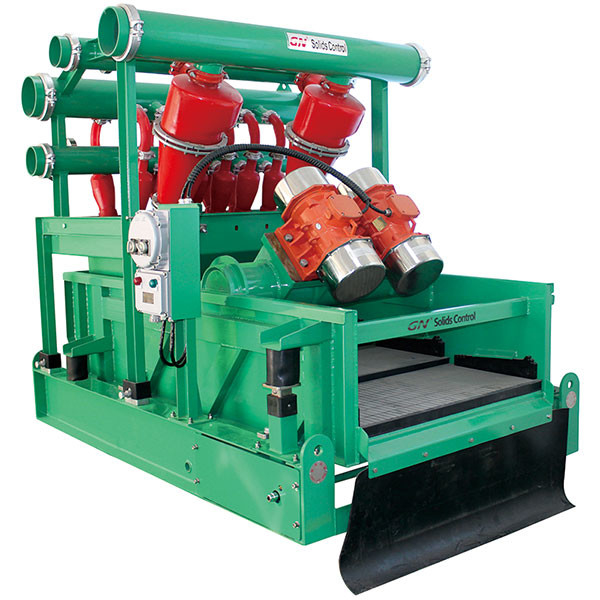

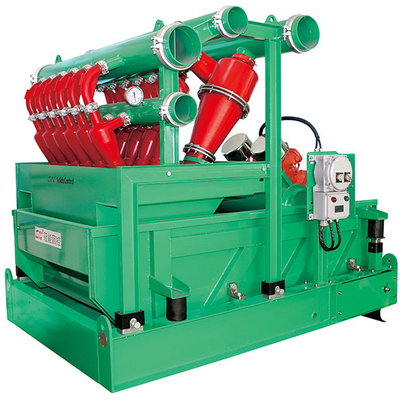

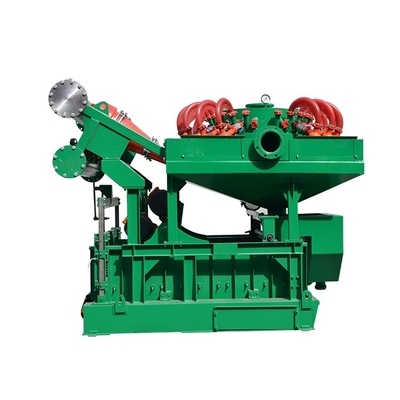

GNZJ Series Mud Cleaner Solids Control Equipment Oil Drilling Mud Cleaner
Mud Cleaner description of Solids Control Equipment
Oilfield Mud Cleaner manufacter,drilling fluids China mud cleaner,shale shaker screen,desiter, desander combination solids control mud cleaner supplier
Mud Cleaner is the second class and the third class solids control equipment which is the newest type to treat the drilling fluid. GN drilling mud cleaner are combined from Desander, Desilterand an Underflow Screen, at the same time Mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker. GN mud cleaner structure is compact, it occupy small space and the function is powerful. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud.
Mud Cleaner Features & Benefits
Solids Control Equipment Mud Cleaner Technical Parameter
| Model | GNZJ703F-D1S8NF | GNZJ703F-S2S12NF | GNZJ594F-S2S12NF | GNZJ703F-S3S16NF | GNZJ594F-S3S16NF |
| Capacity | 120m3/h(528GPM) | 240m3/h(1056GPM) | 360m3/h(1584GPM) | ||
| Desander Size | 10 Inch | ||||
| Desander Qty | 1pcs | 2pcs | 3pcs | ||
| Desilter Size | 4 Inch | ||||
| Desilter Qty | 8pcs | 12pcs | 16pcs | ||
| Working Pressure | 0.25~0.4Mpa | ||||
| Feeding Size | 6 Inch | ||||
| Output Size | 8 Inch | ||||
| Bottom Shale Shaker Specs | |||||
| Shaker Model | GNZS703F | GNZS594F | GNZS703F | GNZS594F | |
| Vibration Mode | Linear Motion | ||||
| Vibration Motor | 2×1.72Kw | ||||
| Screen Qty | 3pcs | 4pcs | 3pcs | 4pcs | |
| Screen Size | 700×1250mm | 585×1165mm | 700×1250mm | 585×1165mm | |
| Screen Area | 2.63m2 | 2.73m2 | 2.63m2 | 2.73m2 | |
| Adjust G Force | ≤7.5G | ||||
| Vibration Amplitude | 4.14~5.96mm | ||||
| Deck Angle Range | -1°~+5° (Eletric & Mechanical) | ||||
| EX Standard | ExdIIBt4 / IEC EX/ ATEX | ||||
| Weight(Kg) | 2071 | 2296 | 2343 | 2393 | 2440 |
| Dimension(mm) | 2419×2113×1848 | 2419×2113×2147 | 2639×2113×2147 | 2419×2113×2147 |
2639×2113×2147 |
